TL350 Series

A heavy-duty Tube Laser Cutting Machine (3000W - 6000W)

TL350 SERIES

R1 R2 R3 / R3 PLUS SERIES TPS SERIES TS SERIES TX Plus SERIES TX SERIES TL350 SERIES TL500 SERIES

red lines in background

Features

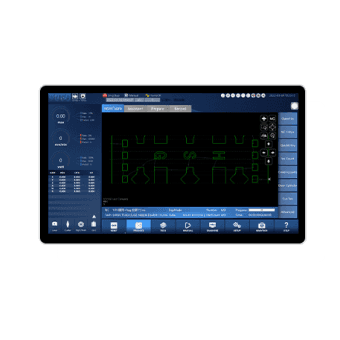

HSG-X Bus CNC System

21.5-inch touchscreen with a concise interface
Real-time monitoring of core components and early warning if abnormal
Simple lines in favor of a low failure rate
Auxiliary functions incl. tube error detection, weld check
Rich tube cutting library

* Bus refers to data transmission mode via the on-site bus control system.

TL 350 Series feature

Image of the machine's feature

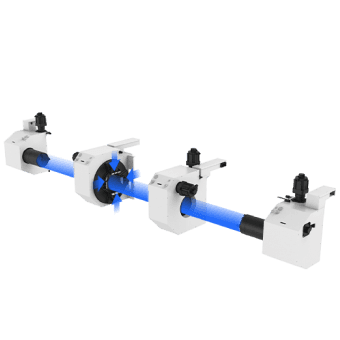

Four Pneumatic Chucks

With automatic centring and big clamping force, the chucks can maintain an easy and steady clamping of the heavy tubes.

Optional 3D Five-axis Cutting Head, 45° Bevel

Self-developed by HSG Laser
The angle of swingable axis ±160°
OD motor with up to 3600°/s acceleration and ±/-6.1’’ precision
Protect itself from any possible collision thanks to its equipped electromagnetic coupling anti-collision device

Image of the machine's feature

Image of the machine's feature

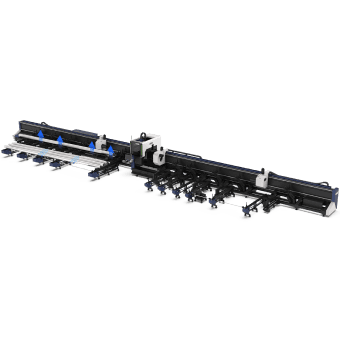

Side-attached Machine Bed

The machine is outfitted with side-attached machine bed that is convenient for loading and unloading heavy tubes, during that process, the machine bed and guide rails are not destroyed by collision.

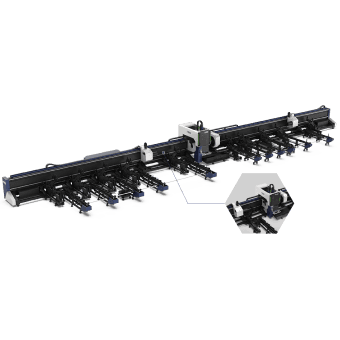

Automatic Loading & Unloading System

Needs to be operated by 1 worker while loading heavy tube

Loading is in sync with unloading, without any unnecessary shutdown and tubes will not collide with each other, preventing deformation

Image of the machine's feature
