TX Series

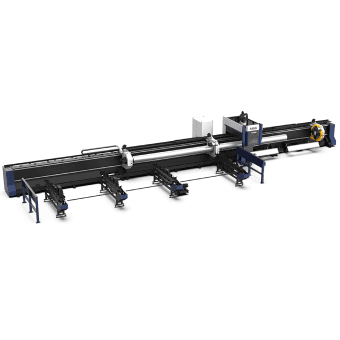

A heavy-duty Tube Laser Cutting Machine (3000W - 12000W)

TX SERIES

R1 R2 R3 / R3 PLUS SERIES TPS SERIES TS SERIES TX Plus SERIES TX SERIES TL350 SERIES TL500 SERIES

red lines in background

Product Video
Features

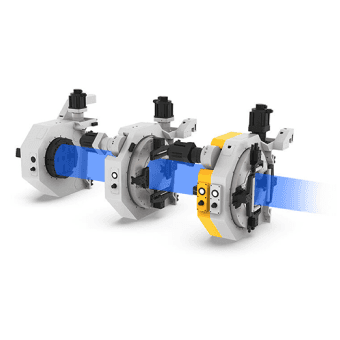

Chuck Clamping Technology

Chuck C3 and C4 are combined as one and can rotate or move synchronously but control its claws opening and closing independently. Except for clamping, tube supporting is also available for the combined chuck, remedying the common weakness of four chucks.

Both tube clamping and supporting
Correction of tube deviation

TX Series feature: Chuck Clamping Technology

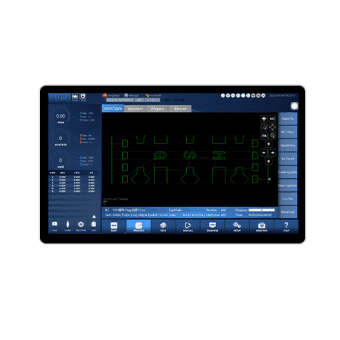

HSG-X CNC System

HSG-X CNC System

21.5-inch touchscreen with a concise interface
Real-time monitoring of core components and early warning if abnormal
Simple lines in favor of a low failure rate
Auxiliary functions incl. tube error detection, weld check
Rich tube cutting library

* Bus refers to data transmission mode via on-site bus control system.

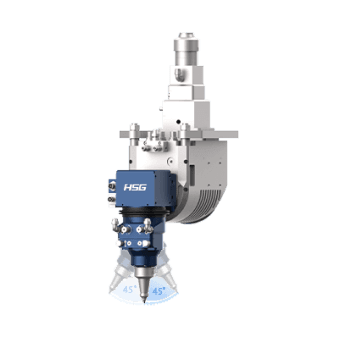

Optional 3D Five-axis Cutting Head, 45° Bevel

Self-developed by HSG Laser
Take control of laser focus thanks to its fully automated servo motor
Laser path reshaping technology
Swingable head outfitted with the function of collision prevention
Modular structure in favour of repair or maintenance

GFA Series feature

P10/P20/P30 Autofocus Laser Cutting Head

Labor-saving Configurations

Multi-tube Automatic Loading Device: Several heavy tubes are usually loaded synchronously.

Automatic Unloading Equipment: Two follow-up turning plates are available to convey ≤6000mm heavy tube stably from high to low while unloading so that the tube surface is well protected.
