TX Plus Series

A heavy-duty Tube Laser Cutting Machine (3000W - 6000W)e

TX Plus SERIES

R1 R2 R3 / R3 PLUS SERIES TPS SERIES TS SERIES TX Plus SERIES TX SERIES TL350 SERIES TL500 SERIES

red lines in background

Product Video
Features

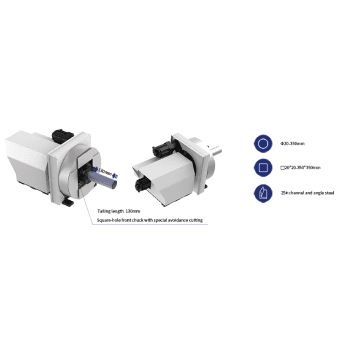

Double Squircle Pneumatic Chucks

Automatic centering
Large and constant clamping force to clamp heavy tubes
Expand the clamping range of square tubes
Detecting sensor for front and rear chuck opening & clamping

TX Series feature: Chuck Clamping Technology

HSG-X CNC System

HSG-X Bus CNC System

21.5-inch touchscreen with concise interface
Real-time monitoring of core components and early warning if abnormal
Simple lines in favor of a low failure rate
Auxiliary functions incl. tube error detection, weld check
Rich tube cutting library

* Bus refers to data transmission mode via the on-site bus control system.

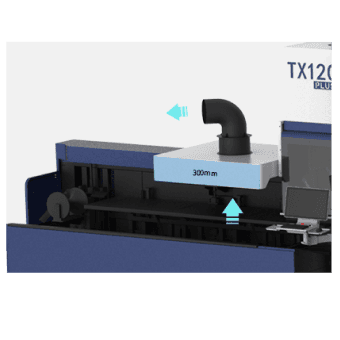

Eco-friendly Cutting

The ventilation opening of the front chuck is enlarged to 300mm to increase suction force in combination with exhaust fans.

Moreover, due to the large dust removal area in the cutting region, smoke exhaust effects are guaranteed.

GFA Series feature

P10/P20/P30 Autofocus Laser Cutting Head

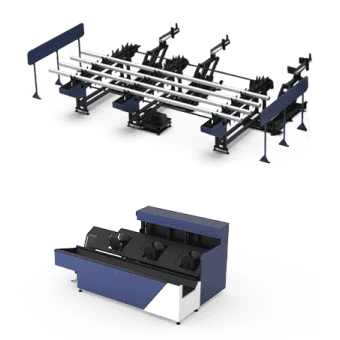

Labor-saving Configurations

Optional Semi-automatic Loading Device: Automatic loading is available to reduce labour intensity and save labour force for users.

Unloading Device: The unloading device, made of concave wheels and turning plates, is especially suitable for supporting heavy tubes and keeping them stable while unloading.
