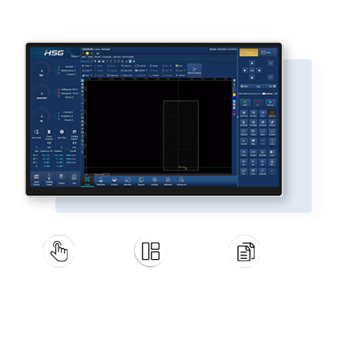

Alpha T Bus CNC System

The system can make data transmission via a network cable.

Micro-connection cutting
Active obstacle avoidance
Real-time monitoring of core components
An active reminder of machine maintenance
HSG-NEST nesting software

* Bus refers to data transmission mode via the on-site bus control system.

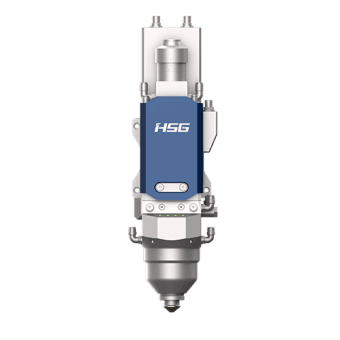

P10 High-power Bus Cutting Head

The cutting head can change its laser spot to the proper size and shape according to cutting materials and thickness.

Autofocus precision ±0.01mm, laser path shaping
Optimize gas flow structure and fast-cooling modules for sensor
Monitor optical lens temperature and cutting status
Double drawer-type protective lens and give early warning, if abnormal

Conform to EU's Three Safety Design Norms and CE Certification

EN ISO 12100 Safety Regulations on EU Mechanical Design
EN 60204-1 Safety Regulations on EU Electrical Design
EN ISO 11553 Regulations on EU Laser Safety and Protection

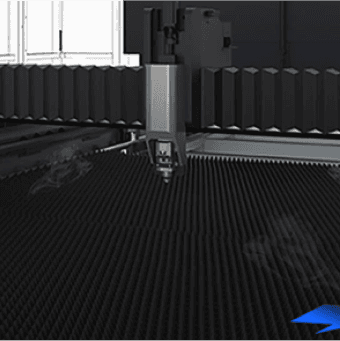

Zoning Ventilation

Divide the cutting area into left and right zones, outfitted with butterfly valve dampers and 300*300mm full-hollow ventilating ducts

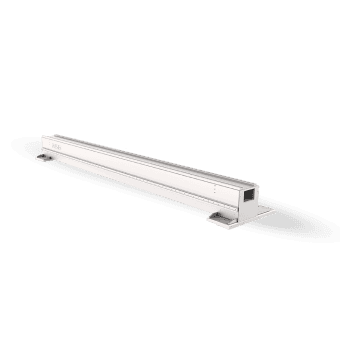

Extruded Aluminium Beam

Our aluminium alloy is adopted. The aluminium beam is designed as a honeycomb anti-compression structure and made by using an extrusion molding process.

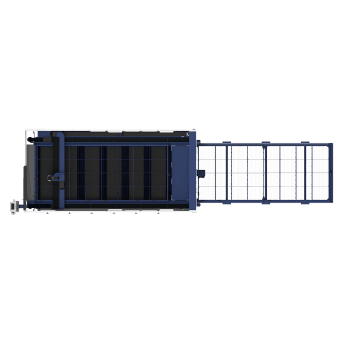

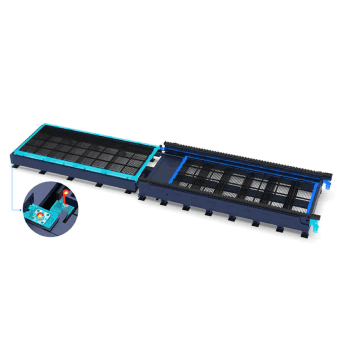

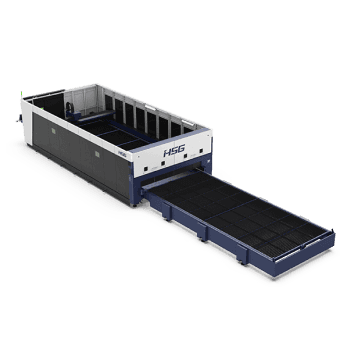

Double Exchange Platforms with Taper Pins Positioning

Double Exchange Platforms are driven by 16A-wide chains
Positioned by taper pins
The entire exchange process is shown on a PLC touchscreen

Carbon Steel Welded Machine Bed

500Mpa tensile strength of the machine bed
Receives lonnealing and vibration ageing to remove its stress
The rear floor stand has reinforced loading points, ensuring the cutting of thick sheets
