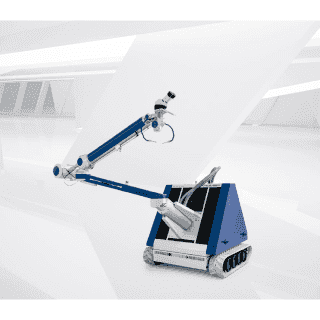

Typically, laser-welding machines' arms cannot reach inside the mold. This is where the ALFlak Max comes into play.
The long arm of the laser welding machine can be extended upto 2.8m with a highest working point of 2m and 80cm deep.
| Specification | Details |
|---|---|
| Laser Type/Wavelength | Nd:YAG, 1064 nm |
| Average Power | 250 W |
| Peak Pulse Power | 9 kW |
| Pulse Energy | 90 J |
| Pulse Duration | 0.5–20 ms |
| Pulse Frequency | Single pulse – 100 Hz |
| Welding Spot Ø | 0.2–2.0 mm |
| Focusing Objective | 150 mm (further according to lens data sheet) |
| Pulse Shaping | Adjustability of power curve within a laser pulse |
| Display and Operation | Display with membrane keyboard, WINLaserNC software via external PC |
