G4020V Product
Airtight, high-power laser cutting machine
- Hydraulic System
- Fully enclosed design
- Compact electric cabinet design
- Partition blowing dust remove system
- Innovative EtherCAT HSG-X Bus control system
Airtight, high-power laser cutting machine
The superior quality laser cutting machine comes with an extra level of protection with OD5 grade fibre optic protection glass, which upgrades the operator’s safety level.
The independent electric cabinet design makes the machine more stable and more precise. Additionally, it also avoids the safety hazard of the operator during the maintenance process.

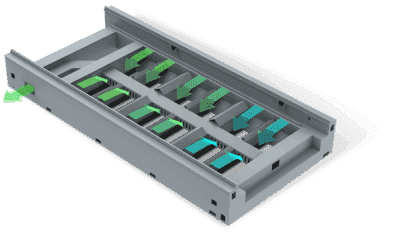

The designs of small grid partitioning blowing, rotating butterfly valve type damper and large-diameter exhaust duct to achieve good ventilation and almost completely smoke-free effect.

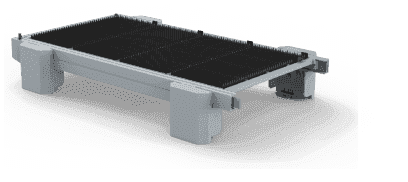

Using the up-down platform with the hydraulic system of the G4020V has good synchronicity, heavy rising load, simple moving parts, fewer trouble points and rapid cycle in short term.

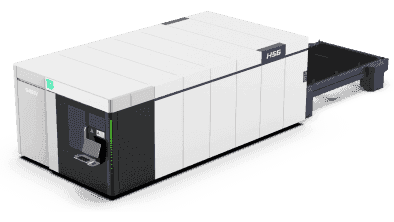

HSG full-enclosure design, safety door installed between exchange workbench, no laser radiation; Its front observation window adopts OD6+ laser protective glass that meets CE standards, much safer.

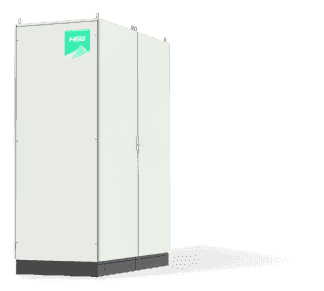

Adopt German Rittal independent electric cabinet, standardized wiring, clean and tidy; Designed as IP54 standard sealing to prevent dust from entering in and components from being ignited.
In strict accordance with European design standards, HSG Laser uses humanized control console, smooth-lined suspension lamp and seamless stainless steel edging, in pursuit for detail perfection. This is HSG’s quality commitment.
| Laser Power | 8000W-15000W | ||
|---|---|---|---|
| Working Area | 4000×2000mm(optional) | ||
| Max. Acc. Speed | 2.0G | ||
| Max. Moving Speed | 169m/min | ||
| Machine Weight | 18000Kg | ||
| Positioning Accuracy | ±0.03mm/m | ||
| Repositioning Accuracy | ±0.02mm | ||
| Overall Dimensions | 10700×3660×2500mm |
