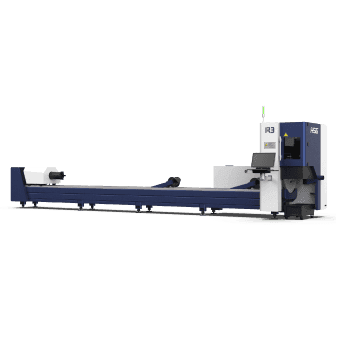

Economical tube laser cutting machine

  • Small Occupied Area
  • Quick to put into production
  • Laser proof glass
  • Automatic loading & unloading device

Features

r3 series

Sales Champion among Economical Tube Laser Cutting Machines

  • Small size and small occupied area, only 8600mm*2200mm, improving the utilisation of workshop

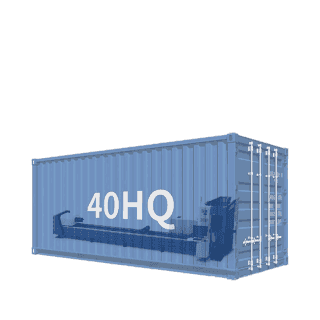

  • Packed in 40HQ standard container with no need for metal plate removal
gb series

HSG-X9000 Bus CNC System

X9000, based on the German CNC bus control system, is compatible with conventional tubes and various profiles. With rich auxiliary functions, such as tube error detection and welds check, X9000 can make laser cutting simple, automatic and intelligent.

  • Real-lime monitoring of core components and early warning if abnormal
  • 21.5-inch touch screen with concise interface
  • Faster and more stable data transmission than non-bus systems
  • Much lower failure rate because of simple lines
  • SigmaTube nesting software and rich tube cutting library
r3 series

Autofocus Laser Cutting Head

KLINGE, made of stainless steel, has a function of water cooling, dual-path cooling nozzle, ceramic ring, double focusing protective lens, drawer-type pluggable protective lens, focusing and collimating lens for long service life.

  • Self-developed by HSG LASER
  • Autofocus accuracy ±0.01mm
  • Good flow control for mirror-like surface cutting by less gas consumption
  • Prevent spark splashing and scalds by SS protective pipes

r3 series

Double Pneumatic Chucks

Automatic centering, 3 times faster than electric chucks, with less waiting time for loading and unloading

Large and constant clamping force, keeping heavy tubes stable

Special support frame, in support of high cutting precision and long service life of chucks

  • Φ20-219mm
  • 20*20-150*150mm
  • Min. tailing 85mm

Technical Parameters

Technical Parameters R3
Power 1500-4000W
X/Y-axis Positioning Accuracy ±0.05mm/m
X/Y-axis Repositioning Accuracy ±0.03mm
Max. No-load Speed 90m/min
Max. Acceleration 0.8G
Max. Rotating Speed of Chucks 90r/min
Round Tube Processing Dim Φ20-Φ219mm
Square Tube Processing Dim 20*20-150*150mm
Max. Length of Tube 6500mm
Max. Weight of Single Tube 100kg
Min. Tailing 85mm
Overall Dimensions (L*W*H) 8627*2230*2100mm
