R3 II Series

R3 II Series

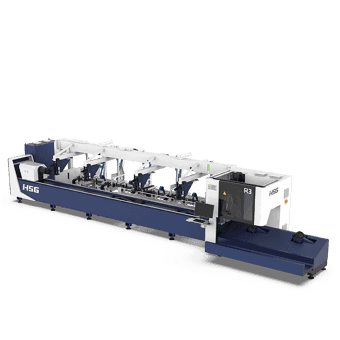

Economical Tube laser cutting machine (1500-4000W)

  • Small Occupied Area
  • Quick to put into production
  • Flying Cutting and Space leapfrog
  • A50%+ increase in efficiency

Features

r3-ll

Sales Champion among Economical Tube Laser Cutting Machines

  • Small size and small occupied area, improving the utilization of workshop

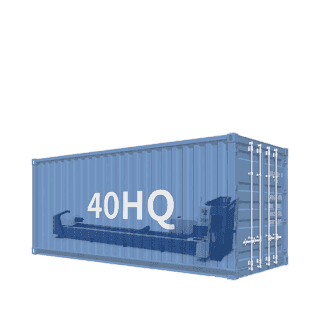

  • Packed in 40HQ standard container with no need for metal plate removal
gb series

HSG-X9000 Bus CNC System

X9000, based on the German CNC bus control system, is compatible with conventional tubes and various profiles. With rich auxiliary functions, such as tube error detection and welds check, X9000 can make laser cutting simple, automatic and intelligent.

  • Real-lime monitoring of core components and early warning if abnormal
  • 21.5-inch touch screen with concise interface
  • Faster and more stable data transmission than non-bus systems
  • Much lower failure rate because of simple lines
  • SigmaTube nesting software and rich tube cutting library
r3 series

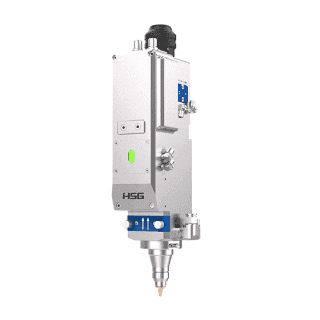

Autofocus Laser Cutting Head

KLINGE, made of stainless steel, has a function of water cooling, dual-path cooling nozzle, ceramic ring, double focusing protective lens, drawer-type pluggable protective lens, focusing and collimating lens for long service life.

  • Self-developed by HSG LASER
  • Autofocus accuracy ±0.01mm
  • Good flow control for mirror-like surface cutting by less gas consumption
  • Prevent spark splashing and scalds by SS protective pipes

r3 series

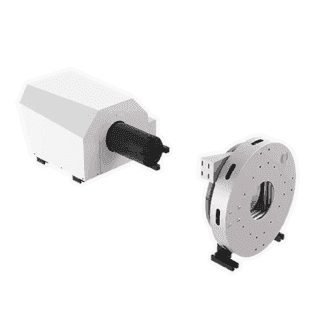

Double Pneumatic Chucks

Automatic centering, 3 times faster than electric chucks, with less waiting time for loading and unloading

Large and constant clamping force, keeping heavy tubes stable

Special support frame, in support of high cutting precision and long service life of chucks

R3 II series

Optional Features

  • Full-/Semi-automatic Loading and Unloading Device Reduce labor intensity, save labor force and make cutting efficient
  • Laser-proof Glass Protect workers’ retina well, in line with international standards

Technical Parameters

Technical Parameters R3 II
Power 1500-4000W
X/Y-axis Positioning Accuracy ±0.05mm/m
X/Y-axis Repositioning Accuracy ±0.03mm
Max. No-load Speed 90m/min
Max. Acceleration 0.8G
Max. Rotating Speed of Chucks 90r/min
Round Tube Processing Dim Φ20-Φ219mm
Square Tube Processing Dim 20*20-150*150mm
Rectangle Tube Processing Dim ≤325mm
Max. Length of Tube 6500mm
Max. Weight of Single Tube 100kg
Min. Tailing 85mm
Overall Dimensions (L*W*H) 8627*2230*2100mm

Cutting Sample
