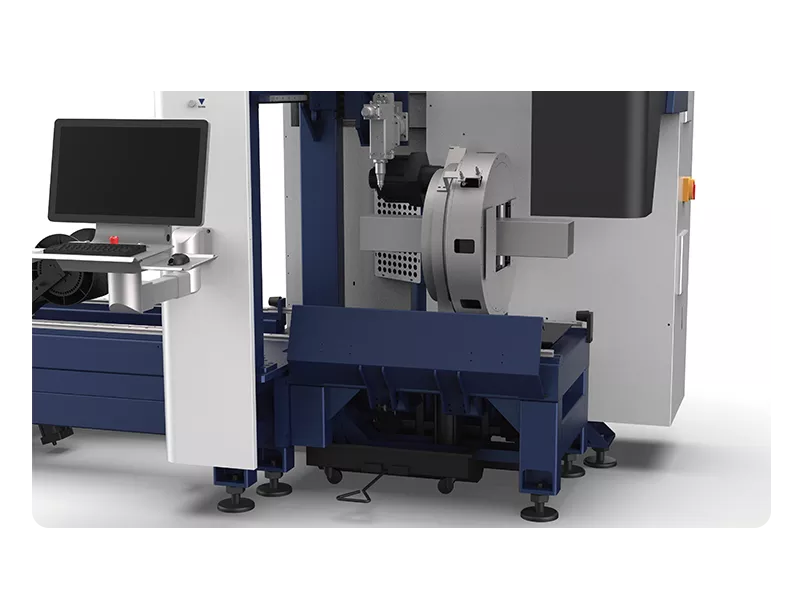

The R2 series includes three pneumatic concave wheel supports as standard, providing reliable support for a wide range of tube types. For those seeking even higher precision, the R2 series can be upgraded with servo follow-up support, which improves cutting accuracy and reliability.
The R2 series is designed with simple yet effective rectangular-circle chucks and can support tubes weighing up to 300 kg. It accommodates various tube types, including:
The R2 series can also be equipped with specific rectangular-circle chucks for applications that require increased sealing and protection.

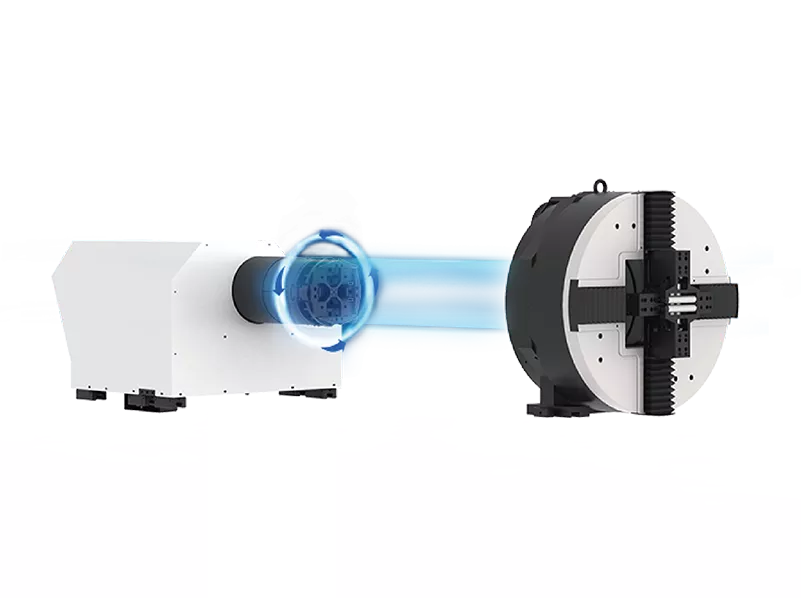

The R2 Series’ dynamic capabilities can be utilised to get outstanding productivity. The laser cutting machine features a chuck operating speed of up to 120 m/min and a rotation speed of up to 100 r/min with an acceleration of 1G. These features help in faster processing times and overall improved efficiency.

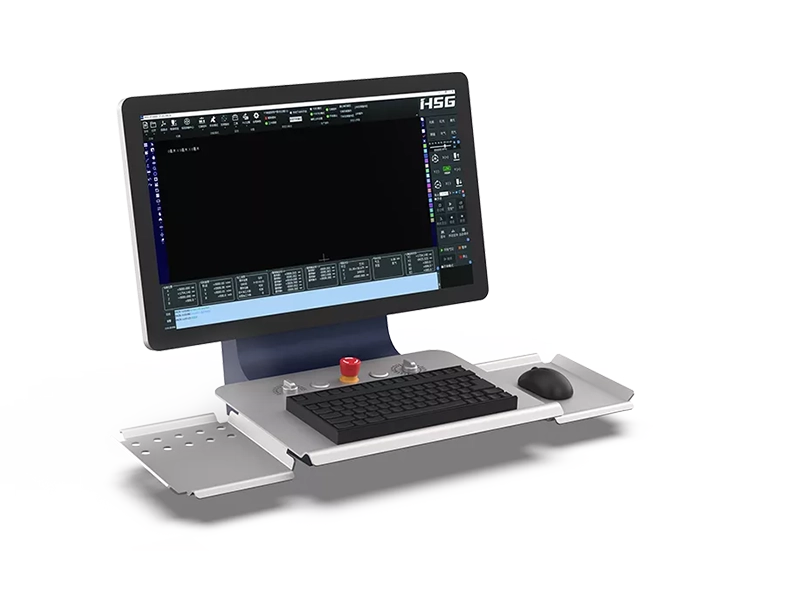

The R2 series utilizes the HSG-X bus control system, developed by HSG Laser. This intelligent, user-friendly system simplifies operations, reduces inefficiencies, and brings down costs significantly. The laser cutting machine provides effective solutions to widely faced challenges such as complex operations and low productivity.

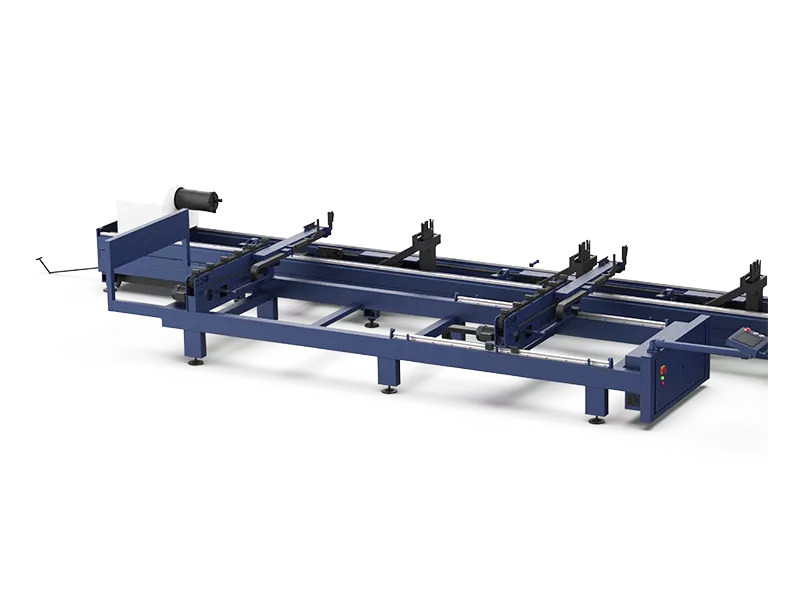

Want an even higher precision in long tube cutting? Try adding an optional 3-meter blanking rack to the R2 series. This feature ensures stable, precise cuts, ideal for handling longer materials with ease.
| Model | Power | X/Y-axis Positioning Accuracy | Cutting Capacity of Round Tube | Cutting Capacity of Square Tube | Weight of Single Tube |
|---|---|---|---|---|---|
| R2 | 3000W-6000W | ±0.05mm/m | Φ12-Φ240mm | □1212-□240240mm | 300kg |
| Specifications are liable to change without prior notice. | |||||
