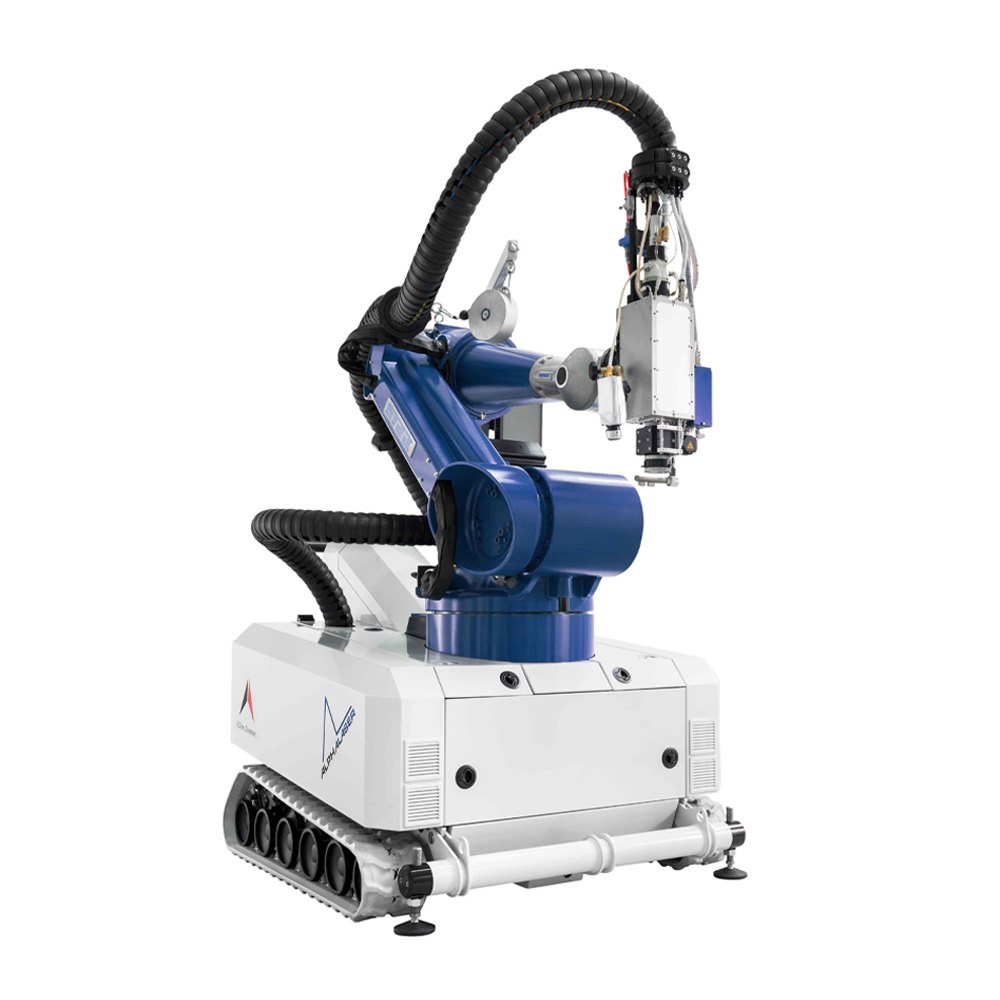

AL-ROCK Modular
A modular robotic laser system configured to customer requirements for hardening, welding, cladding, deposition and other high-power laser processes.
- 2–20 kW Laser power (approx.)
- 7 Laser processes
- Diode · fiber · disk Laser sources
- Custom Robotic configuration
Product description
One Platform, Multiple Laser Processes
AL-ROCK Modular is designed as a configurable robotic laser cell for applications that require more than a single laser process. Depending on the production requirement, the system can be configured for deep welding, wire deposition welding, wobble welding, laser hardening, powder deposition welding, 3D printing and pulse welding. This multi-process approach allows different applications to be handled within one system architecture rather than requiring a separate dedicated machine for every process.
Configured Around the Component
There is no fixed machine configuration for AL-ROCK Modular. The laser source, robot, positioning system, linear axes, optics and safety cabin can be selected according to the component geometry, workspace, process requirements and production layout. Industrial robots with suitable reach and payload can be combined with floor- or ceiling-mounted positioning systems and linear axes to provide access to large, heavy or complex components.
High-Power Laser Processing
The system supports diode, fiber and disk laser sources from approximately 2 kW to 20 kW, with higher power available on request. This allows the laser configuration to be matched to demanding welding, hardening, cladding and deposition applications.
Controlled & Repeatable Processes
Integrated process control can coordinate temperature and tool-path parameters to support consistent hardening depth and weld geometry. Suitable optics can also be selected to adjust track width and spot size according to the application.
Production-Ready Safety Cell
AL-ROCK Modular can be supplied with a customized safety cabin, integrated extraction and shielding, and coordinated control architecture. The resulting cell is designed around the specific production environment rather than forcing the application into a fixed machine format.
Features
Multi-Process Laser Platform
One robotic system can be configured for deep welding, wire deposition, wobble welding, laser hardening, powder deposition, 3D printing and pulse welding.
High-Power Laser Sources
Choose from diode, fiber or disk laser technologies with power levels from approximately 2 kW to 20 kW, with higher power available on request.
Custom Robot Selection
Industrial robots can be selected according to the required reach, payload and accessibility for the component and process.
Flexible Axis Configuration
Linear axes and positioning systems can be incorporated to improve access to large or complex workpieces. Configurations can support floor or ceiling mounting.
Integrated Process Control
Control systems can coordinate process parameters such as temperature and path to support consistent hardening depth and weld geometry.
Adjustable Track & Spot Dimensions
Suitable optics can be selected to adapt track width and spot size according to the requirements of the process.
Automated Powder Deposition
The system can be equipped with a focused multi-jet powder nozzle for automated powder deposition welding.
Custom Safety Cabin
The safety enclosure can be designed around the selected robot, laser process, workpiece dimensions and production layout, with integrated extraction and shielding options.
Configuration
| Configuration Area | Available Options |
|---|---|
| Laser Source | Diode, fiber or disk laser |
| Laser Power | Approx. 2–20 kW; higher power on request |
| Robotic System | Industrial robot selected according to reach and payload |
| Mounting | Floor or ceiling configuration |
| Linear Axes | Configurable according to component and accessibility requirements |
| Laser Processes | Deep welding, wire deposition, wobble welding, laser hardening, powder deposition welding, 3D printing and pulse welding |
| Optics | Selected according to track width, spot size and process requirements |
| Powder Deposition | Optional focused multi-jet powder nozzle |
| Safety System | Custom safety cabin with extraction and shielding options |
| Process Control | Temperature and path control for process consistency |
Maintenance & care
Maintenance requirements depend on the final AL-ROCK Modular configuration, including the selected laser source, robot, optics, axes and deposition equipment. Follow the service procedures specified for each integrated component and keep optical, extraction and process equipment clean and properly maintained.
May we help?
- Is AL-ROCK Modular available in one standard configuration?
- No. The system is configured according to the customer's component, process, production layout and accessibility requirements. The robot, laser source, axes, optics and safety cabin can all be selected accordingly.
- Which laser processes can one AL-ROCK Modular system perform?
- Depending on its configuration, the system can support deep welding, wire deposition welding, wobble welding, laser hardening, powder deposition welding, 3D printing and pulse welding.
- How is the robot selected for an AL-ROCK Modular system?
- The industrial robot is selected according to factors such as required reach, payload, component geometry and accessibility. Additional positioning systems and linear axes can be incorporated when greater movement or workpiece access is required.
