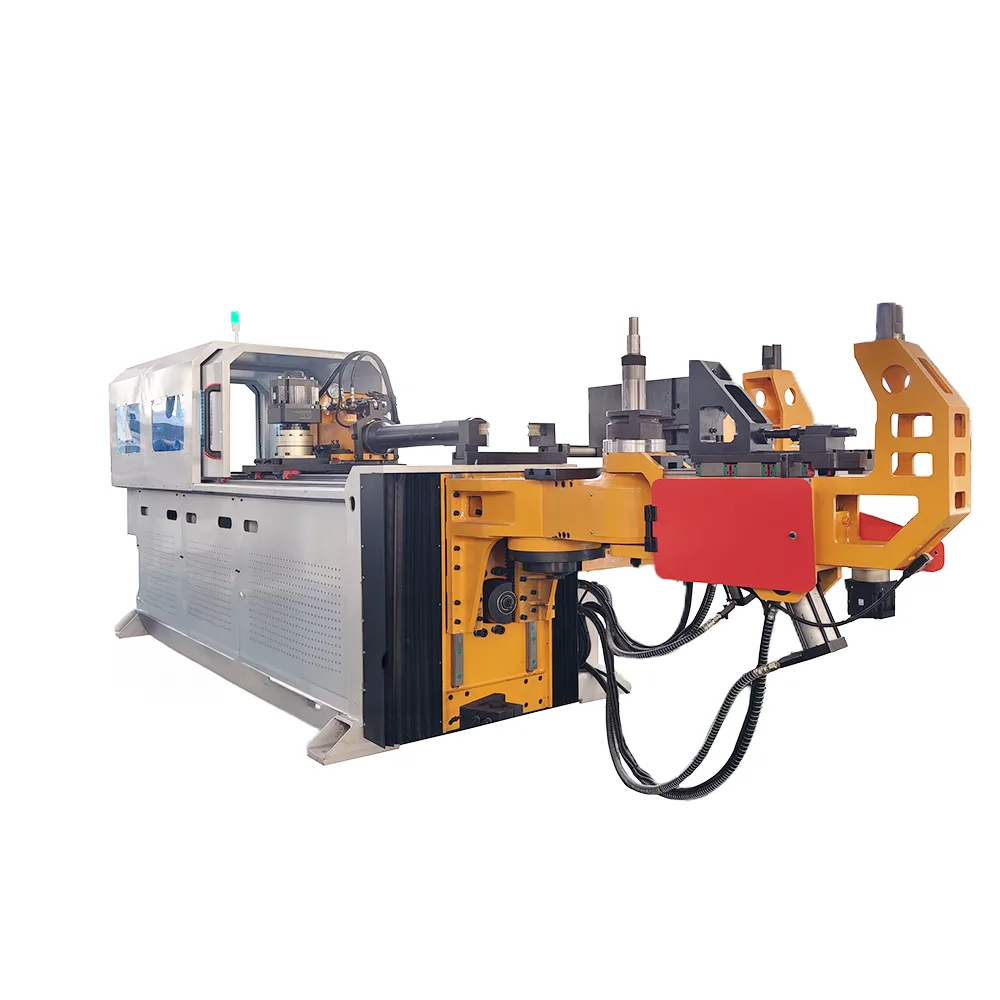

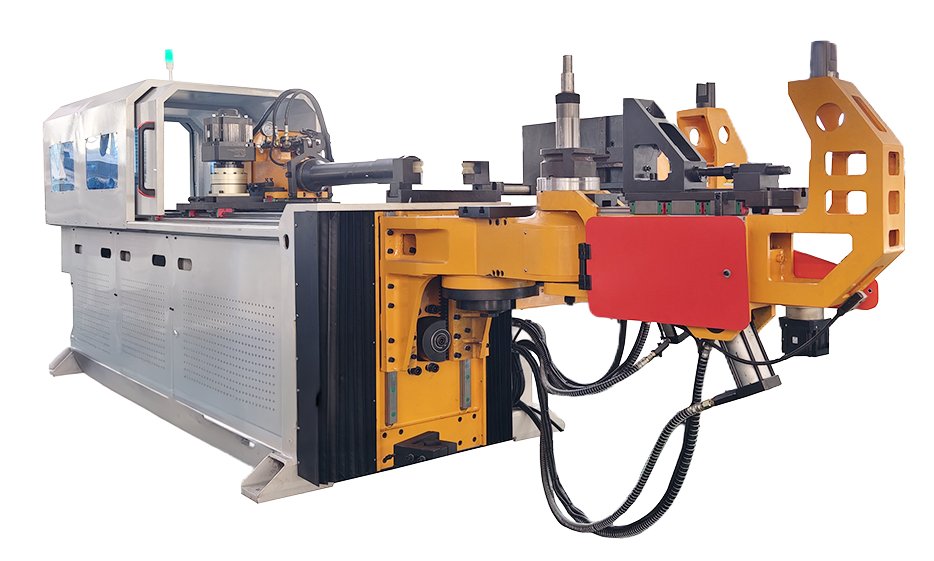

DW50CNC-5A-MSV

5-axis CNC tube bender with integrated punching for bending and hole-making in one automated cycle, with servo-controlled precision and repeatable performance.

5-axis CNC control
Φ50 mm Max round tube
190° Max bend angle
±0.1° Bending accuracy

Product description

The DW50CNC-5A-MSV is suited for automotive and auto-component tube parts, furniture and frame tubes, HVAC and refrigeration tube assemblies, exhaust and structural tubing, and general tube and profile fabrication. To operate, power up the machine and check the hydraulic, servo, and control systems. Select the tube profile, tooling, and bending program, then load and clamp the tube using the feeding system. Set the bending, rotation, and feeding parameters and run a first-piece cycle to inspect the bending angle and position. Continue the programmed operation while monitoring clamping and tube movement. Unload finished tubes, clear offcuts, clean the tooling and work area, and perform normal machine shutdown.

5-axis servo-controlled bending, feeding, rotary, and shifting system
Maximum bending radius of R250 mm
Maximum bending degree of 190°
Bending accuracy of ±0.1°
Rotary accuracy of ±0.1°
Feeding accuracy of ±0.1 mm
Maximum feeding length of 2500 mm
Storage capacity of up to 1000 groups
Supports multiple round, square, rectangular, and solid-bar profiles within the
Maximum bending, rotary, and feeding speeds of 90°/s, 160°/s, and 800 mm/s

Features

5-Axis CNC Pipe Bending Configuration:

The DW50CNC-5A-MSV uses a 5-axis servo system for coordinated bending, feeding, rotary, and shifting movements.

R250 mm Maximum Bending Radius:

Supports a maximum bending radius of R250 mm. The minimum bending radius is according to the pipe diameter.

190° Maximum Bending Degree:

Provides a maximum bending degree of 190° for the listed bending configuration.

2500 mm Maximum Feeding Length:

Supports a maximum feeding length of 2500 mm with clamping or direct feeding.

90°/s Maximum Bending Speed:

The bending axis provides a maximum speed of 90°/s.

160°/s Maximum Rotary Speed:

The rotary axis provides a maximum speed of 160°/s.

800 mm/s Maximum Feeding Speed:

The feeding system provides a maximum speed of 800 mm/s.

±0.1° Bending Accuracy:

Provides a listed bending accuracy of ±0.1°.

±0.1° Rotary Accuracy:

Provides a listed rotary positioning accuracy of ±0.1°.

±0.1 mm Feeding Accuracy:

Provides a listed feeding accuracy of ±0.1 mm.

7 kW Bending Servo Motor:

Uses a 7 kW servo motor for the bending axis.

3 kW Feeding Servo Motor:

Uses a 3 kW servo motor for the feeding axis.

1000-Group Storage Capacity:

Supports storage of up to 1000 groups of working values and bending programs.

DW50CNC-5A-MSV specification

Specification	Details
Machine Series	DW Series
Standard Draw Bending, Mild Carbon Steel Round	Φ50 mm
Standard Draw Bending, Stainless Steel Round	Φ35 mm
Standard Draw Bending, Mild Carbon Steel Square	35 mm × 35 mm
Standard Draw Bending, Stainless Steel Square	25 mm × 25 mm
Standard Draw Bending, Mild Carbon Steel Rectangle	40 mm × 25 mm
Standard Draw Bending, Stainless Steel Rectangle	30 mm × 20 mm
Standard Draw Bending, Solid Bar	25 mm
Push Bending, Mild Carbon Steel Round	Φ38 mm
Push Bending, Stainless Steel Round	Φ25 mm
Push Bending, Mild Carbon Steel Square	25 mm × 25 mm
Push Bending, Stainless Steel Square	18 mm × 18 mm
Push Bending, Mild Carbon Steel Rectangle	30 mm × 20 mm
Push Bending, Stainless Steel Rectangle	20 mm × 15 mm
Push Bending, Solid Bar	20 mm
Max. Bending Radius	R250 mm
Min. Bending Radius	According to pipe diameter
Max. Bending Degree	190°
Feeding Method	Clamping / direct feeding
Max. Feeding Length	2500 mm
Bending Speed	Max. 90°/s
Rotary Speed	Max. 160°/s
Feeding Speed	Max. 800 mm/s
Bending Accuracy	±0.1°
Rotary Accuracy	±0.1°
Feeding Accuracy	±0.1 mm
Bending Servo Motor	7 kW
Feeding Servo Motor	3 kW
Rotary Servo Motor	0.75 kW
Left / Right Shifting Servo	1 kW
Up / Down Shifting Servo	3 kW
Input Method	Working value (Y, B, C)
Max. Storage Capacity	1000 groups
Max. Oil Pressure	14 MPa
Machine Weight	2500 kg
Machine Dimensions	4500 × 1600 × 1700 mm

Maintenance & care

Inspect bending dies, clamps, and tooling for wear or damage before production. Check hydraulic oil level and condition and inspect the system for leaks. Inspect servo motors, cables, sensors, and axis mechanisms for proper operation. Clean tube-contact surfaces and remove chips from the working area. Check clamping and feeding alignment before production, lubricate mechanical points according to manufacturer requirements, and follow the preventive-maintenance schedule for the hydraulic, servo, and tooling systems. SPECIFICATIONS (THE SAME)
