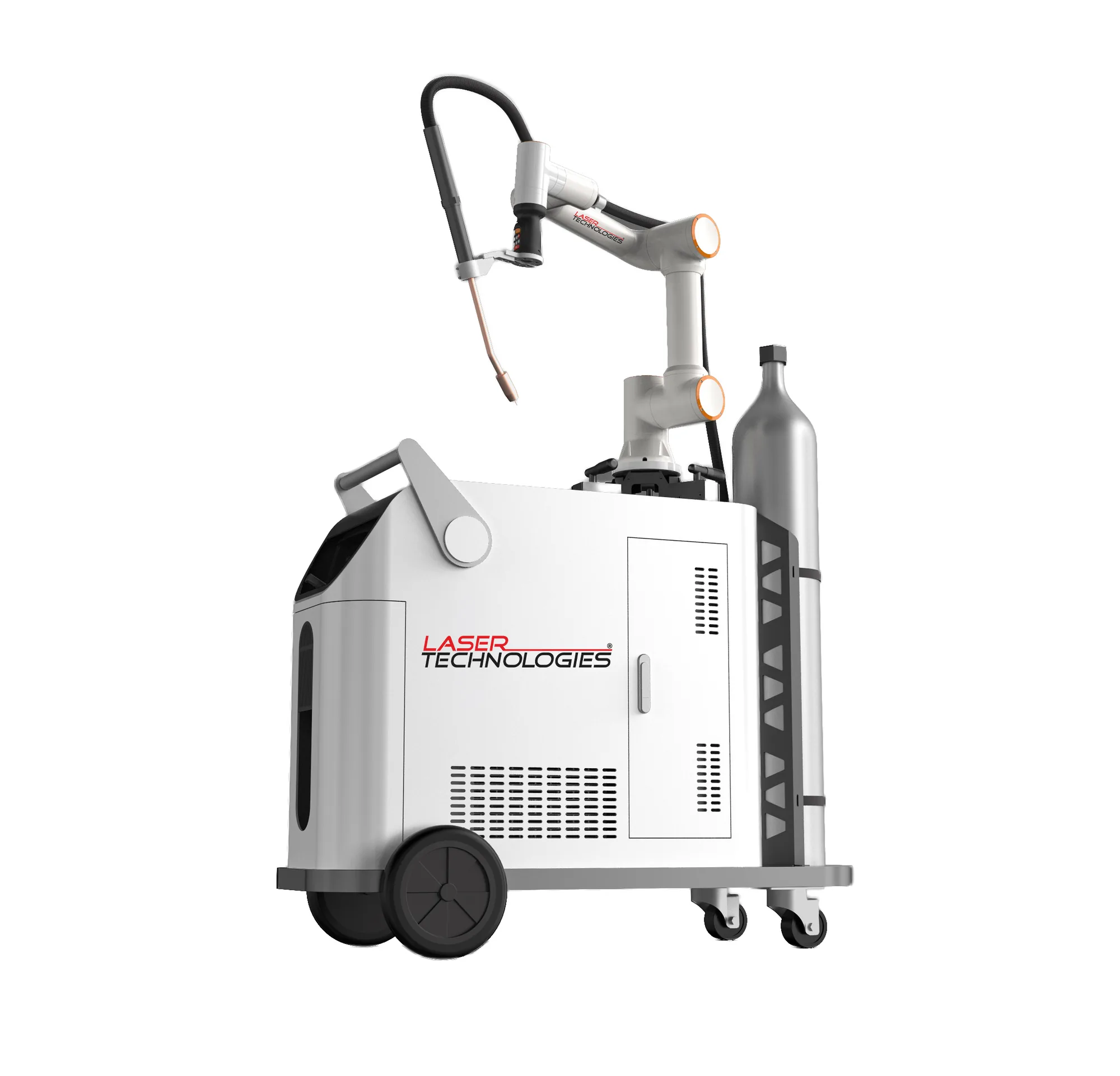

COBO Weld (Multiple Payload Options)
COBO Weld- Automatic Laser Welding Machine — 820 mm to 1854 mm reach range, 1 m/s to 2 m/s speed (tcp), ±0.02 mm repeatability.
- 820 mm to 1854 mm Reach Range
- 1 m/s to 2 m/s Speed (TCP)
- ±0.02 mm Repeatability
- < 70 dB Noise Level
Product description
The COBO Weld (Multiple Payload Options) is a COBO Weld- Automatic Laser Welding Machine from the COBO Weld, with 820 mm to 1854 mm reach range, 1 m/s to 2 m/s speed (tcp), ±0.02 mm repeatability.
Model COBO Weld (Multiple Payload Options) provides programmable robotic motion for repeatable welding. Model-specific reach/payload supports its stated work envelope. Automated motion can reduce repeated manual positioning.
It is used for Automotive and auto-component welding, Sheet-metal assemblies and frames, Industrial equipment and fabricated structures, Repeated MIG/MAG/TIG/laser welding operations where configured, Production cells requiring repeatable programmed weld paths.
Features
Model COBO Weld (Multiple Payload
Options)
Payload/reach
3kg, 5kg, 10kg, 16kg, 20kg, 30kg
Repeatability/positioning: ±0.02 mmNoise Level: <
70 dBMounting Options: Floor, Wall, InvertedProgramming: Intuitive Teach Pendant / Smart GUI
Compatible welding processes: Laser /
MIG / MAG / TIG (GMAW/FCAW) (Note: Text is partially obscured in the image but refers to standard welding processes)Torch Mount: Adjustable with Auto Angle CorrectionTorch Cable Routing: Internal or External
Programmable robotic motion for repeatable
Weld paths
Teach/program workflow supported by the
Listed controller/interface
Model COBO Weld (Multiple Payload
Options) provides programmable robotic motion for repeatable welding
Model-specific reach/payload supports its stated
Work envelope
Specifications
| Specification | Details |
|---|---|
| Model | COBO Weld (Multiple Payload Options) Payload Options: 3kg, 5kg, 10kg, 16kg, 20kg, 30kg |
| Reach Range | 820 mm to 1854 mm |
| Speed (TCP) | 1 m/s to 2 m/s |
| Repeatability | ±0.02 mm |
| Noise Level | < 70 dB |
| Mounting Options | Floor, Wall, Inverted |
| Programming | Intuitive Teach Pendant / Smart GUI |
| Power Supply | 230V AC, 50/60 |
| Process Compatibility | Laser / MIG / MAG / TIG (GMAW/FCAW) ( |
| Note | Text is partially obscured in the image but refers to standard welding processes) |
| Torch Mount | Adjustable with Auto Angle Correction |
| Torch Cable Routing | Internal or External |
| Cooling | Air-Cooled / Water |
| Certifications | CE, ISO 15066 Compliant, UL Ready |
Maintenance & care
Inspect torch/nozzle, cable routing and wire-feeding components.
Check robot joints, mounting and work envelope for obstructions.
Inspect welding power source, cooling and gas supply.
Check fixtures and workpiece location before production.
Clean spatter from torch and surrounding fixtures.
Inspect electrical connections and teach-pendant/control condition.
May we help?
- What are the main specifications of the COBO Weld (Multiple Payload Options)?
- The COBO Weld (Multiple Payload Options) offers 820 mm to 1854 mm reach range, 1 m/s to 2 m/s speed (tcp), ±0.02 mm repeatability, < 70 dB noise level.
- What is the COBO Weld (Multiple Payload Options) used for?
- It is used for Automotive and auto-component welding, Sheet-metal assemblies and frames, Industrial equipment and fabricated structures, Repeated MIG/MAG/TIG/laser welding operations where configured, Production cells requiring repeatable programmed weld paths.
- What maintenance does the COBO Weld (Multiple Payload Options) need?
- Inspect torch/nozzle, cable routing and wire-feeding components. Check robot joints, mounting and work envelope for obstructions. Inspect welding power source, cooling and gas supply. Check fixtures and workpiece location before production.
