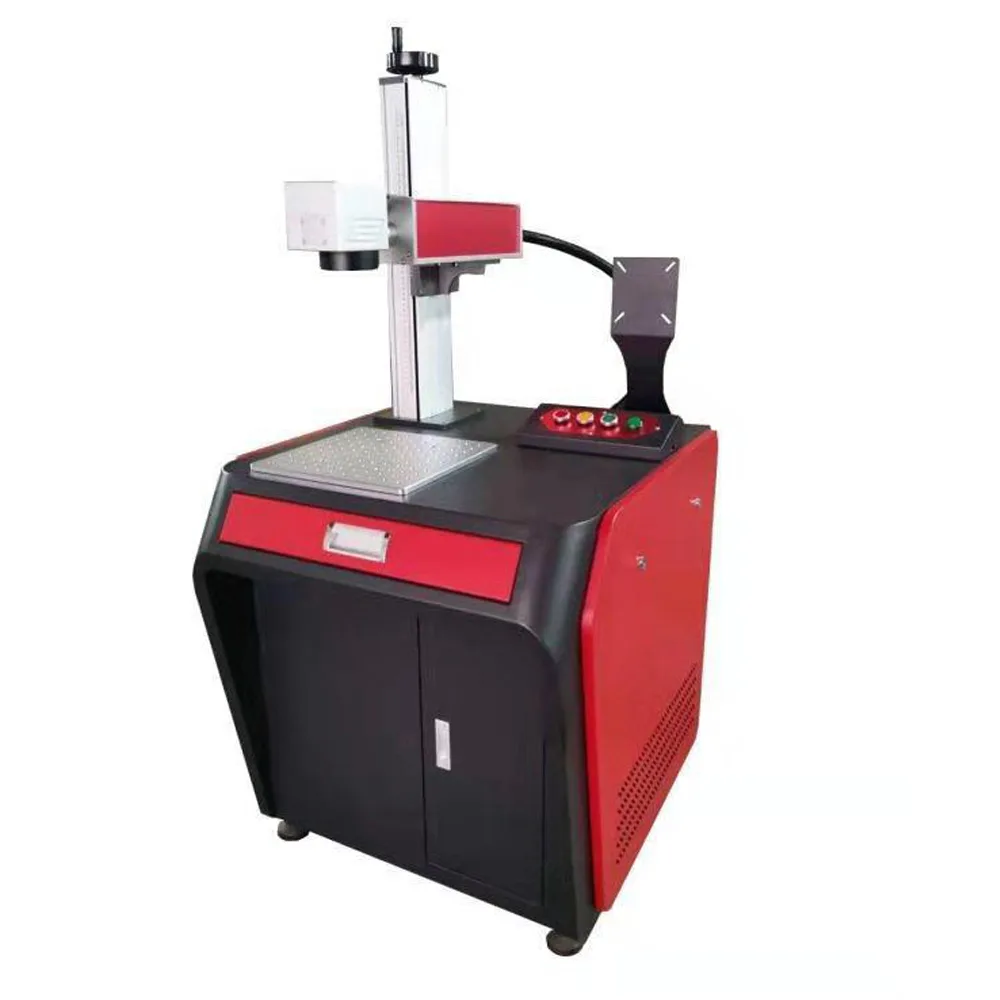

G708A
A 355 nm UV laser marking machine designed for fine, high-precision marking with 0.01 mm minimum line width.
- 355 nm UV wavelength
- 0.01 mm Minimum line width
- ±0.003 mm Repeat accuracy
- 20,000 h Laser module life
Product description
The Photon-X G708A uses a 355 nm UV laser source with power options from 3W to 10W, supporting fine and precise marking at speeds of up to 8,000 mm/s. With a minimum line width of 0.01 mm, minimum character size of 0.1 mm and repeat accuracy of ±0.003 mm, it is designed for detailed marking applications. The machine features a standard 110 × 110 mm marking range, water cooling and a laser module life of up to 20,000 hours.
Features
355 nm UV Laser Source
The G708A uses a 355 nm UV laser wavelength for fine-detail marking applications requiring high precision.
Fine Line Marking
A minimum line width of 0.01 mm allows the system to produce fine and detailed marking patterns.
High Marking Speed
Marking line speeds of up to 8,000 mm/s support efficient processing for repetitive marking applications.
Multiple Power Options
The machine is available with 3W, 5W, 7W and 10W laser power configurations to suit different marking requirements.
High Repeat Accuracy
With repeat accuracy of ±0.003 mm, the G708A is designed for consistent marking position across repeated operations.
Long Laser Module Life
The laser module has a specified life of 20,000 hours, supporting long-term machine operation.
G708A specification
| Specification | Details |
|---|---|
| Model | G708A |
| Product Type | Laser marking machine |
| Laser Power | 3W / 5W / 7W / 10W |
| Laser Repetition Frequency | 20–100 kHz |
| Marking Line Speed | 8,000 mm/s |
| Standard Marking Range | 110 × 110 mm |
| Minimum Character Size | 0.1 mm |
| Repeat Accuracy | ±0.003 mm |
| Minimum Line Width | 0.01 mm |
| Laser Module Life | 20,000 hours |
| Laser Wavelength | 355 nm |
| Cooling | Water cooling |
| Focus Lens | 110 × 110 mm |
Maintenance & care
The G708A uses water cooling, so the cooling system should be kept in proper operating condition according to the manufacturer's maintenance guidelines. Keep the marking area and optical components clean and free from dust or debris to support consistent marking quality. Regular inspection of the laser source, focus lens and cooling system should be carried out as recommended for the machine.
May we help?
- What laser wavelength does the G708A use?
- The G708A uses a 355 nm UV laser wavelength, making it suitable for applications that require fine and precise marking.
- What laser power options are available?
- The G708A is available in 3W, 5W, 7W and 10W configurations, allowing the machine to be specified according to the marking application.
- How precise is the G708A?
- The machine offers a minimum line width of 0.01 mm, minimum character size of 0.1 mm and repeat accuracy of ±0.003 mm.
