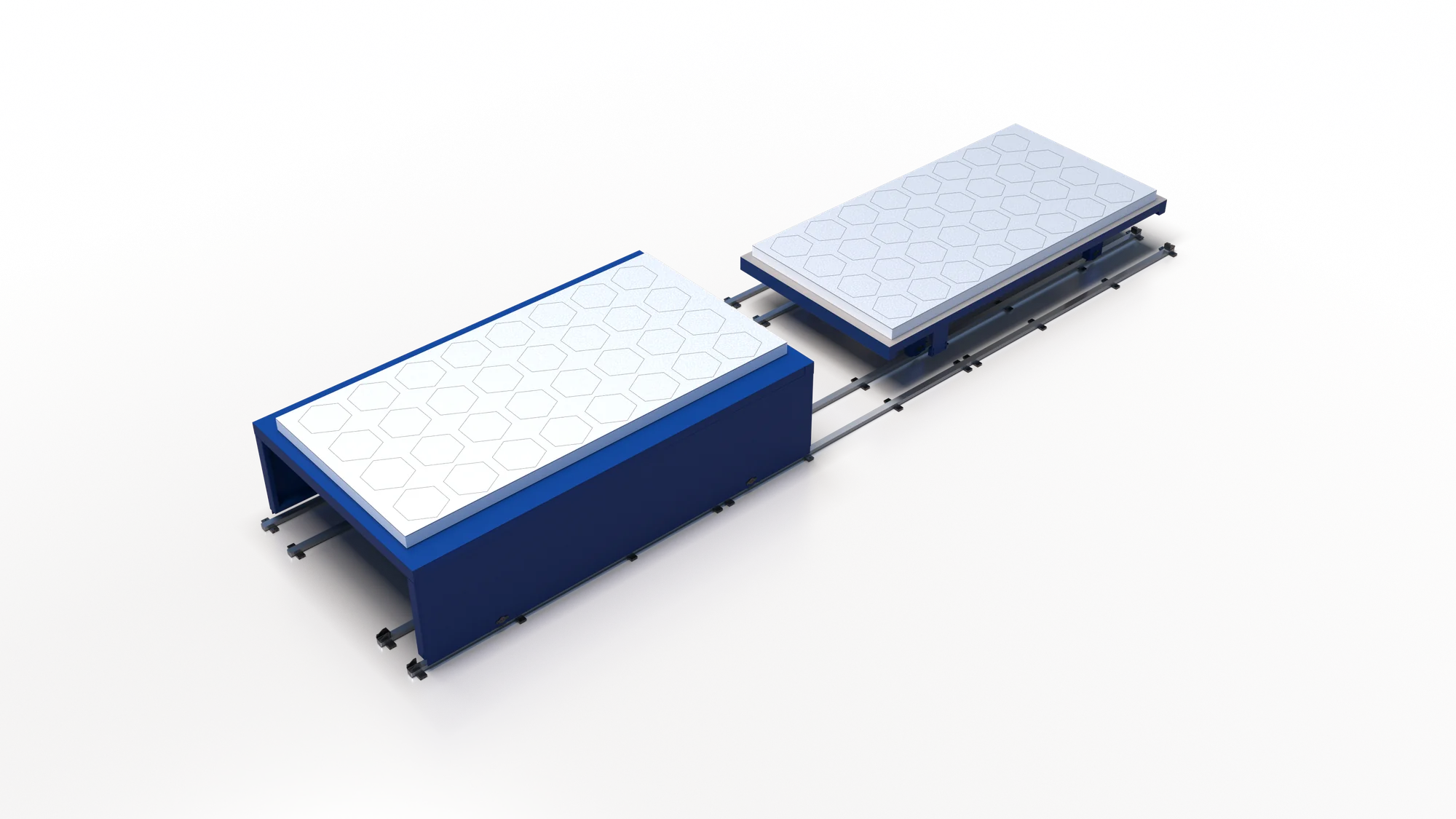

HAN'S ALU
Automatic Laser Cutting Line — 40m/min - 60m/min max cycle speed, 3t (3 tonnes) max transfer weight, 8000mm x 2500mm max sheet metal size.
- 40m/min - 60m/min Max Cycle Speed
- 3t (3 tonnes) Max Transfer Weight
- 8000mm x 2500mm Max Sheet Metal Size
- 6m/min - 12m/min Max Lifting Speed
Product description
The ALU is suited for sheet-metal fabrication, automotive and auto components, electrical panels, industrial enclosures, HVAC and kitchen equipment and general engineering applications. Power up the CNC, laser, cooling and assist-gas systems, load and position the sheet within the working area, then select the cutting program and process parameters. Check the nozzle, focus, gas supply and cutting-head clearance before the first cut. Run and monitor the cutting cycle, then unload parts, remove scrap and complete shutdown and cleaning.
- Supports sheet sizes up to 8000 × 2500 mm.
- Handles sheet loads of up to 3 tons for lifting and transfer.
- Offers 10, 12 or 15 storage rack layers based on factory height.
- Integrates FMS, PLC and CNC systems for coordinated automation and laser
- Supports automated material handling throughout programmed cutting cycles.
Features
Automation Series Laser Cutting
Configured for automated sheet-metal laser cutting and material handling.
Large Sheet Capacity
Supports sheet sizes up to 8000 × 2500 mm.
Storage Tower
Available with 10, 12 or 15 storage rack layers based on factory height.
High Transfer Capacity
Supports transfer weights of up to 3 tons.
Integrated Control System
Combines FMS, PLC and CNC controls for dispatch, automation and laser machine operation.
Specifications
| Specification | Details |
|---|---|
| Max Cycle Speed | 40m/min - 60m/min |
| Max Transfer Weight | 3t (3 tonnes) |
| Max Sheet Metal Size | 8000mm x 2500mm |
| Layers of Storage Racks | 10 / 12 / 15 (Based on factory height) |
| Max Lifting Speed | 6m/min - 12m/min |
| Max Transfer Speed | 20m/min |
| Max Load per Layer | 3t / 5tSystem Integration & ControlsFMS + PLC + CNC: Integrates a Dispatch system, Control of Automation, and Control of the Laser machine. |
Maintenance & care
Inspect and clean the cutting head optics, nozzle and protective window regularly. Check assist-gas supply, pressure and hose connections and inspect the cooling system where fitted. Keep guideways, moving parts and the work area free from dust and slag. Check cables, sensors and control components and remove scrap from the cutting table. Follow the manufacturer’s preventive maintenance schedule. Technical Parameter • Max. Cycle Speed: 40–60 m/min • Max. Transfer Weight: 3 t • Max. Sheet Metal Size: 8000 × 2500 mm • Storage Rack Layers: 10 / 12 / 15 • Max. Lifting Speed: 6–12 m/min • Max. Transfer Speed: 20 m/min • Max. Load per Layer: 3 t / 5 t • Control System: FMS + PLC + CNC • System Integration: Dispatch system, automation control and laser machine control
May we help?
- What are the main specifications of the HAN'S ALU?
- The HAN'S ALU offers 40m/min - 60m/min max cycle speed, 3t (3 tonnes) max transfer weight, 8000mm x 2500mm max sheet metal size, 6m/min - 12m/min max lifting speed.
- What is the HAN'S ALU used for?
- It is used for Sheet-metal fabrication, Automotive and auto components, Electrical panels and industrial enclosures, HVAC and kitchen equipment, General engineering and precision sheet components.
- What maintenance does the HAN'S ALU need?
- Inspect and clean cutting head optics, nozzle and protective window. Check assist-gas supply, pressure and hose connections. Inspect chiller/cooling system where fitted. Keep guideways, moving parts and work area free from dust and slag.
