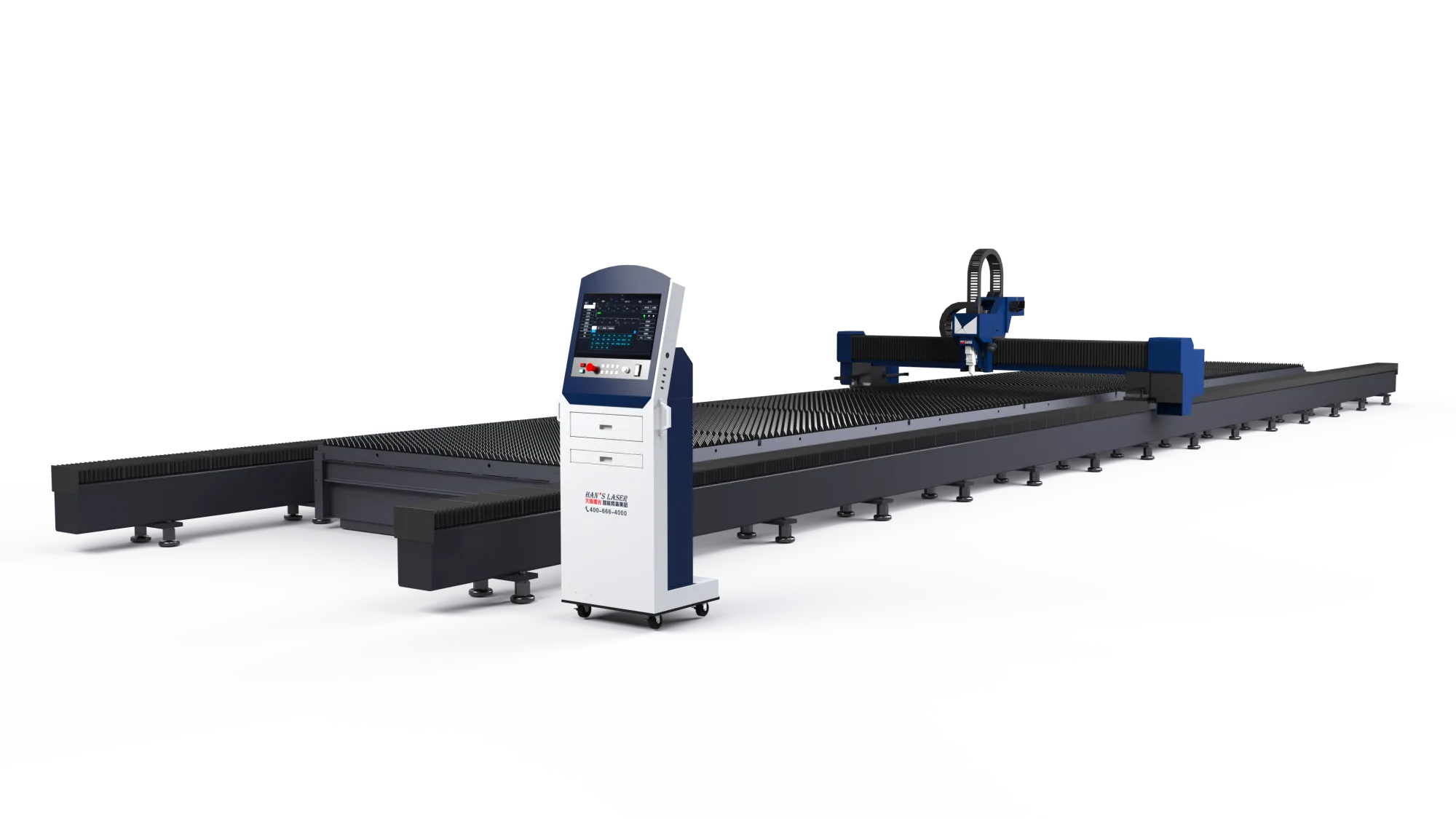

HAN'S G13030S PRO-A/G
An extra-large-format fiber laser cutting machine with a 13,100 × 3100 mm working area and up to 18,700 kg sheet capacity.
- 13,100 × 3100 mm Working area
- 12–60 kW Laser power
- 80 m/min Axis speed
- 18,700 kg/table Sheet weight
Product description
The G13030S PRO-A/G is suited for sheet-metal fabrication, automotive and auto components, electrical panels, industrial enclosures, HVAC, kitchen equipment and general engineering applications. Load the sheet within the working area, select the cutting program and process parameters, check the nozzle, focus and gas supply, then run and monitor the programmed cutting cycle. Unload parts and scrap safely before completing the normal shutdown procedure.
- 13,100 × 3100 mm working area for large sheet components
- 80 m/min maximum axis positioning speed
- 0.05 mm precision and 0.03 mm/m repeatability
- 18,700 kg/table maximum sheet weight
- Laser power options from 12 kW to 60 kW
Features
13,100 × 3100 mm Working Area
The G13030S PRO-A/G provides a 13,100 × 3100 mm working area for large sheet-metal cutting applications.
80 m/min Axis Positioning Speed
The machine reaches a maximum X/Y axis positioning speed of 80 m/min for efficient machine movement.
High Positioning Accuracy
With 0.05 mm precision and 0.03 mm/m repeatability, the machine supports consistent positioning during programmed cutting.
18,700 kg Sheet Load Capacity
The machine supports a maximum sheet weight of 18,700 kg per table.
Multiple Laser Power Options
The G13030S PRO-A/G is available with laser power options of 12 kW, 20 kW, 30 kW, 40 kW and 60 kW.
Specifications
| Specification | Details |
|---|---|
| Working Area | 13,100 × 3100 mm |
| Max. Axis Positioning Speed (X/Y) | 80 m/min |
| Precision | 0.05 mm |
| Repeatability | 0.03 mm/m |
| Max. Sheet Weight | 18,700 kg/table |
| Available Laser Power | 12 / 20 / 30 / 40 / 60 kW |
Maintenance & care
Inspect and clean the cutting head optics, nozzle and protective window regularly. Check assist-gas connections, cooling systems, guideways, cables, sensors and the cutting table. Keep the work area free from dust and slag and follow the manufacturer’s preventive maintenance schedule.
May we help?
- What is the working area of the G13030S PRO-A/G?
- The machine has a 13,100 × 3100 mm working area for extra-large sheet processing.
- What is the maximum sheet weight?
- The G13030S PRO-A/G supports a maximum sheet weight of 18,700 kg per table.
- What laser power options are available?
- The machine is available with laser power options from 12 kW to 60 kW.
