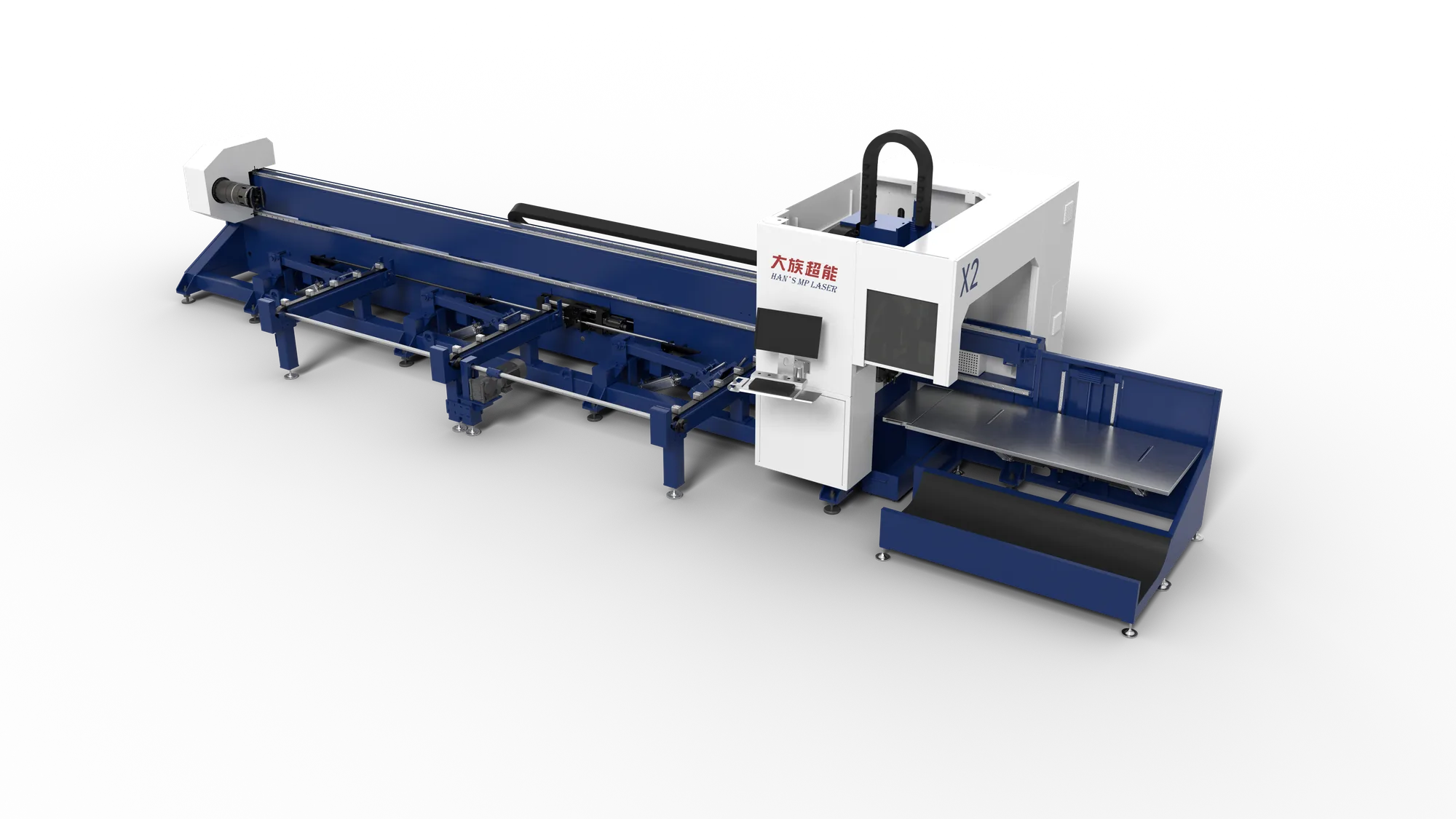

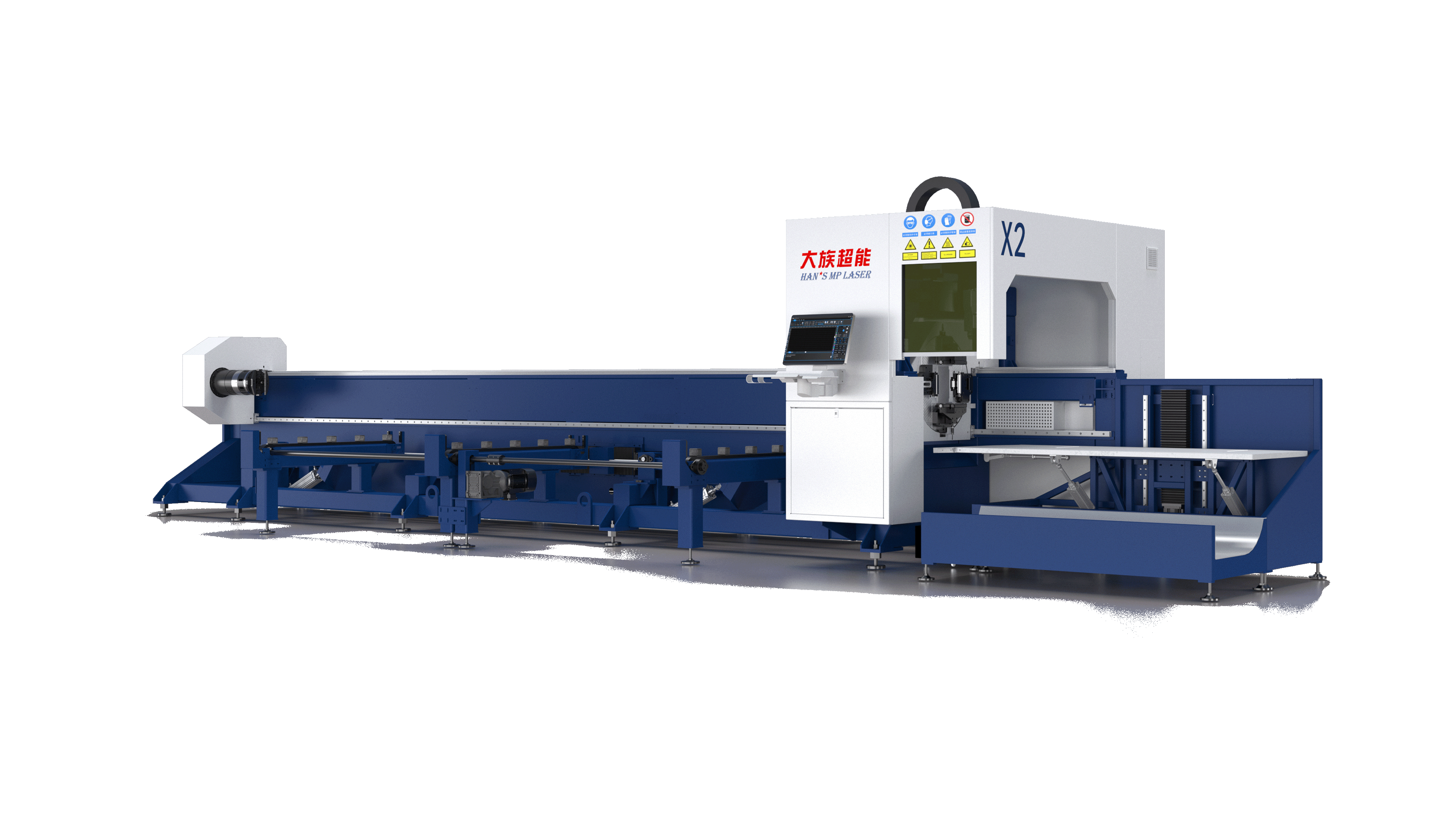

HAN'S MPS X2
Laser Tube Cutting Machine — 3kw / 6kw laser power, □245x245mm (240mm) chuck diameter, 2 chuck quantity.
- 3kw / 6kw Laser Power
- □245x245mm (240mm) Chuck Diameter
- 2 Chuck Quantity
- ≤7200mm Loading Length
Product description
The MPS-X2 is suited for tube and pipe fabrication, structural profiles and frames, automotive and auto-component tubular parts, furniture and equipment frames and construction and industrial fabrication. Power up the laser, CNC, cooling and gas systems, load and align the tube or profile in the chuck/support system, select the cutting program and parameters, check the nozzle, focus and gas supply, then run and monitor the cutting cycle. Unload parts and offcuts before shutdown and cleaning.
- Model-specific tube/profile capacity is reflected in MPS-X2 data
- CNC programming supports repeatable tube features and cut patterns
- Dual-chuck handling supports controlled tube positioning
- Optional semi-automatic feeding can reduce manual handling
- Zero-tailing option can help minimize material waste
Features
MPS-X Series Tube/Profile Laser Cutting
Configured for CNC-controlled tube and profile processing.
Larger Tube and Profile Range
Supports square tubes from 10–230 mm and 20# I- beam/channel steel.
Dual-Chuck Configuration
Equipped with two chucks and a □245 × 245 mm (240 mm) chuck diameter.
Tube Load Capacity
Supports a maximum single-tube load of 260 kg (≤37 kg/m).
Semi-Automatic Loading
Supports optional semi-automatic feeding.
Zero-Tailing Option
Optional toothed material-pulling claws can achieve zero tailing.
Specifications
| Specification | Details |
|---|---|
| Laser Power | 3kw / 6kw |
| Chuck Diameter | □245x245mm (240mm) |
| Arrange | 10-230mm Square, 20# I-beam channel steel |
| Chuck Quantity | 2 |
| Loading Length | ≤7200mm |
| Maximum Speed | 150rmp |
| Single Tube) | 260kg (≤37kg/m) |
| Automatic Loading | Optional semi-automatic feeding |
| Supporting | 6m floating support for loading, 2m follow-up unloading |
| Tail Length | 50mm (offside cutting)Can 0 Tailing?: Optional toothed material pulling claws to achieve zero waste |
| Control System | FSCUT3000 |
| Nesting Software | TubesT-lite Equipment Power Requirements: 3-phase / 380V / 50Hz / IP54X, Y Positioning Accuracy: ±0.05mm/mX, Y Repeat Positioning Accuracy: ±0.03mm |
| Wall Thickness Range | ≥0.8mm |
Maintenance & care
Inspect the chucks, clamps, supports and material-contact surfaces regularly. Clean the laser head optics, nozzle and protective window and check assist-gas lines, cooling systems and electrical connections. Inspect chuck alignment, supports, sensors and drive components. Remove cut-off pieces and follow the manufacturer’s preventive maintenance schedule. Technical Parameter • Laser Power: 3 kW / 6 kW • Chuck Diameter: □245 × 245 mm (240 mm) • Processing Range: 10–230 mm square; 20# I-beam/channel steel • Chuck Quantity: 2 • Loading Length: ≤7200 mm • Max. Speed: 150 rpm • Max. Single-Tube Load: 260 kg (≤37 kg/m) • Automatic Loading: Optional semi-automatic feeding • Loading Support: 6 m floating support • Unloading Support: 2 m follow-up support • Tail Length: 50 mm • Zero-Tailing: Optional toothed material-pulling claws • Control System: FSCUT3000 • Nesting Software: TubesT-T • Equipment Power Requirements: 3-phase / 380 V / 50 Hz / IP54 • X, Y Positioning Accuracy: ±0.05 mm/m • X, Y Repeat Positioning Accuracy: ±0.03 mm • Wall Thickness Range: ≥0.8 mm
May we help?
- What are the main specifications of the HAN'S MPS X2?
- The HAN'S MPS X2 offers 3kw / 6kw laser power, □245x245mm (240mm) chuck diameter, 2 chuck quantity, ≤7200mm loading length.
- What is the HAN'S MPS X2 used for?
- It is used for Tube and pipe fabrication, Structural profiles and frames, Automotive and auto-component tubular parts, Furniture and equipment frames, Construction and industrial fabrication.
- What maintenance does the HAN'S MPS X2 need?
- Inspect chuck, clamps/supports and material-contact surfaces. Clean laser head optics, nozzle and protective window regularly. Check assist-gas lines, cooling/chiller and electrical connections. Inspect chuck alignment, rollers/supports and moving mechanisms.
