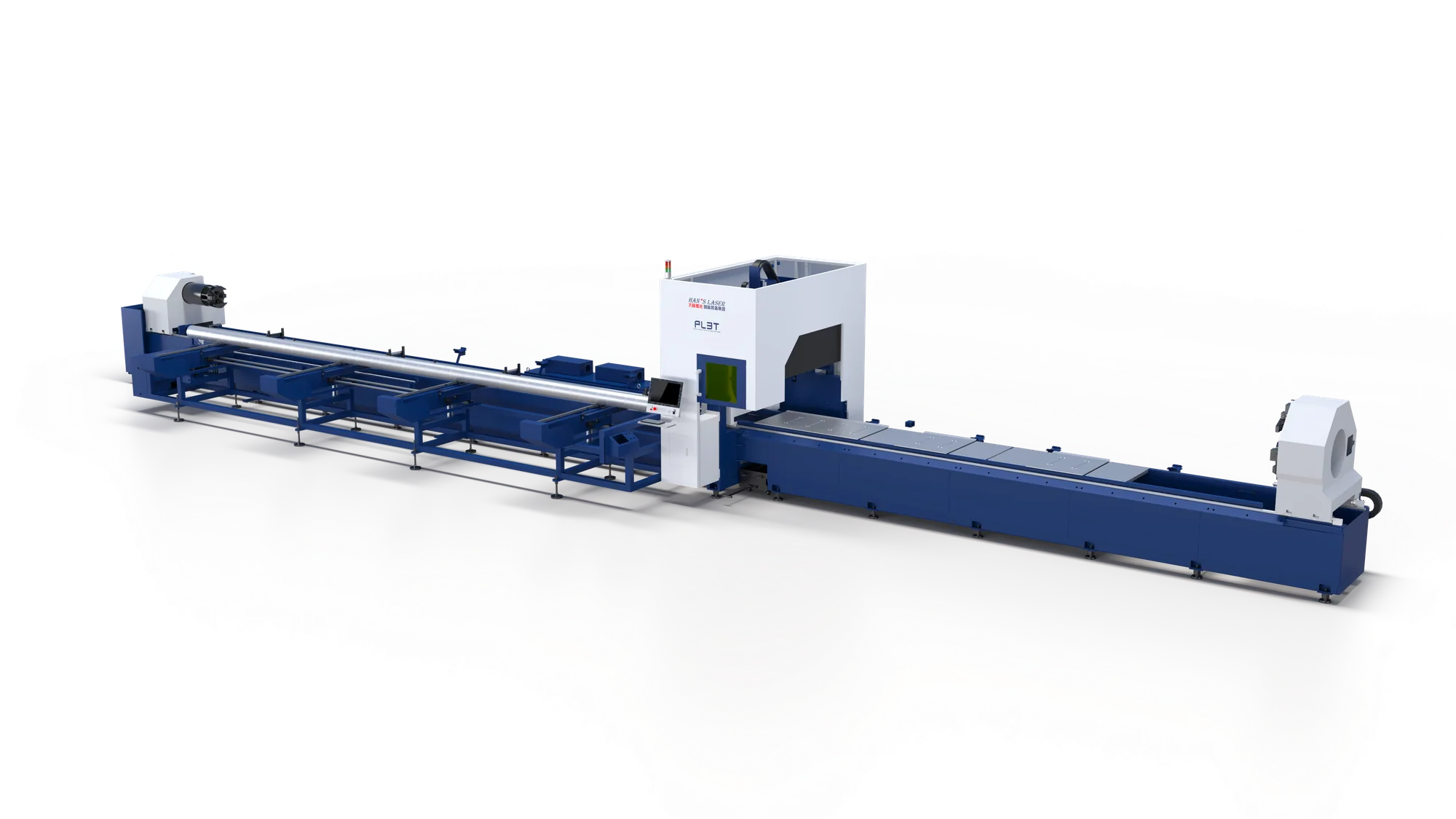

HANS PL3T 0606
Tri -Chuck Laser Tube Cutting Machine — 6500mm × Φ20–360mm round, 6500mm × □20–350mm square, 500kg (loading: 400kg) load capacity.
- 6500mm × Φ20–360mm Round
- 6500mm × □20–350mm Square
- 500kg (loading: 400kg) Load Capacity
- ±45° Optional)
Product description
The HANS PL3T 0606 is a Tri -Chuck Laser Tube Cutting Machine from the PLT Series, with 6500mm × Φ20–360mm round, 6500mm × □20–350mm square, 500kg (loading: 400kg) load capacity.
Model-specific tube/profile capacity is reflected in PL3T-0606 data. CNC programming supports repeatable tube features and cut patterns. Rotary/chuck handling supports controlled tube positioning.
It is used for Tube and pipe fabrication, Structural profiles and frames, Automotive and auto-component tubular parts, Furniture and equipment frames, Construction and industrial fabrication.
Features
PLT Series tube/profile laser cutting
Configuration
Model PL3T-0606 processing range
tube/profile range as listed in the source data
Positioning/speed data
model-specific values are provided in the source data
Repeatability/positioning accuracy
model-specific
Supports round/square/profile processing where listed
For the model
Automatic or semi-automatic loading options
Where stated in the source data
Model-specific tube/profile capacity is reflected
In PL3T-0606 data
CNC programming supports repeatable tube
Features and cut patterns
Specifications
| Specification | Details |
|---|---|
| Round | 6500mm × Φ20–360mm |
| Square | 6500mm × □20–350mm |
| Profile | H-beam / Channel steel: 250mm, Angle steel: 200mm |
| Unloading Length | 6000mm (0mm tailing with proper nesting or fixed-length cutting) |
| Load Capacity | 500kg (loading: 400kg) |
| Optional) | ±45° |
| Chuck Speed | 80r/min |
| Idle Speed | 80m/min |
| Recommended Power | 6kW / 12kW |
| Equipment Floor Space Dimensions | Main Machine + Semi |
| Automatic | 17M × 4M × 3.6MMain Machine + Automatic: 17M × 5M × 3.6M |
Maintenance & care
Inspect chuck, clamps/supports and material-contact surfaces.
Clean laser head optics, nozzle and protective window regularly.
Check assist-gas lines, cooling/chiller and electrical connections.
Inspect chuck alignment, rollers/supports and moving mechanisms.
Remove cut-off pieces and slag from the work area.
Check sensors, cables and guide/drive components.
May we help?
- What are the main specifications of the HANS PL3T 0606?
- The HANS PL3T 0606 offers 6500mm × Φ20–360mm round, 6500mm × □20–350mm square, 500kg (loading: 400kg) load capacity, ±45° optional).
- What is the HANS PL3T 0606 used for?
- It is used for Tube and pipe fabrication, Structural profiles and frames, Automotive and auto-component tubular parts, Furniture and equipment frames, Construction and industrial fabrication.
- What maintenance does the HANS PL3T 0606 need?
- Inspect chuck, clamps/supports and material-contact surfaces. Clean laser head optics, nozzle and protective window regularly. Check assist-gas lines, cooling/chiller and electrical connections. Inspect chuck alignment, rollers/supports and moving mechanisms.
