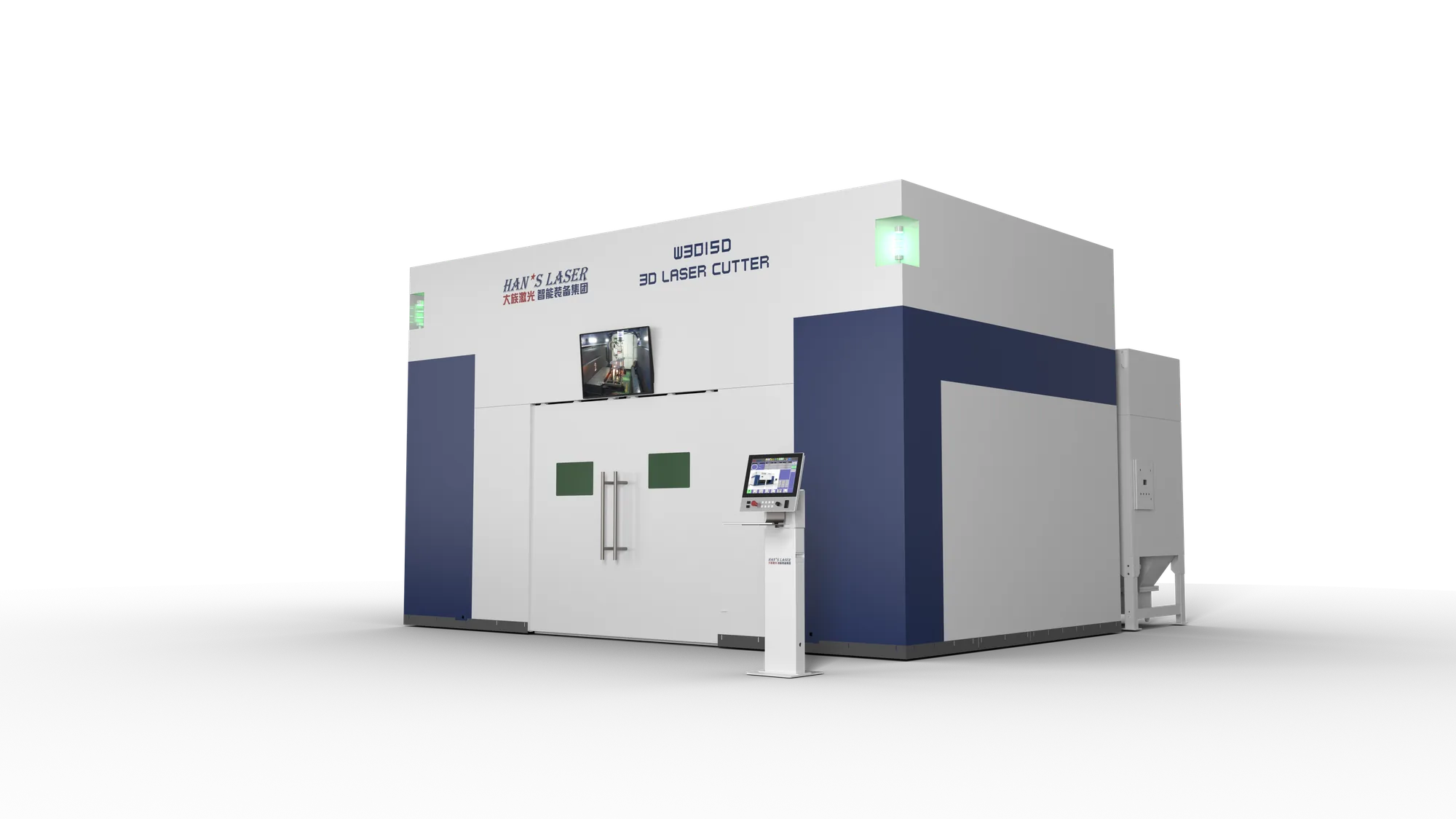

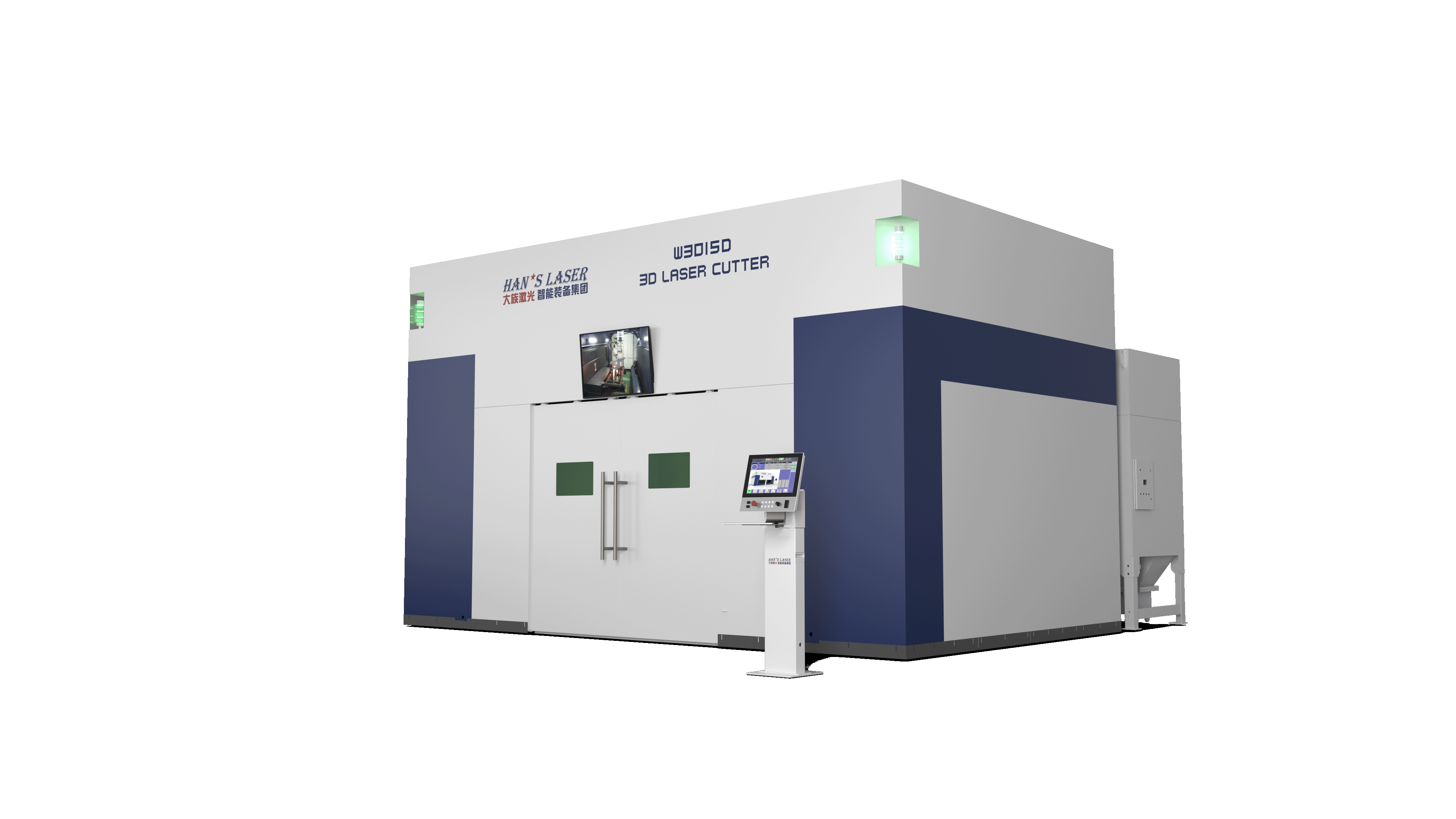

HAN'S W3015D
3D Five Axis Laser Tube Cutting Machine — 1.0g (can reach 1.2g) acceleration, ±0.04mm location precision, 0.03mm repeat location precision.
- 1.0g (can reach 1.2g) Acceleration
- ±0.04mm Location precision
- 0.03mm Repeat location precision
- n*360° Rotary axis C axis
Product description
The W3015D is used for tube and pipe fabrication, structural profiles and frames, automotive and auto-component tubular parts, furniture and equipment frames and construction and industrial fabrication. Power up the laser, CNC, cooling and gas systems, load the tube/profile using the specified loading arrangement, clamp and align the workpiece in the chuck/support system, select the tube-cutting program and material parameters, check nozzle/focus, assist gas and cutting-head clearance, then run the first cut and verify hole/contour position. Continue production while monitoring chuck, supports and process status. Unload parts, remove offcuts and perform shutdown/cleaning.
- Model-specific tube/profile capacity is reflected in W3015D data
- CNC programming supports repeatable tube features and cut patterns
- Rotary/chuck handling supports controlled tube positioning
- Automatic/semi-automatic loading can reduce manual handling where configured
- Suitable for repeated tube and profile component production
Features
WD Series 3D Five-Axis Laser Cutting
Designed for CNC-controlled tube and profile laser cutting.
Large Working Range
Provides 3000 mm X-axis, 1500 mm Y-axis and 650 mm Z- axis travel.
High-Speed Axis Movement
Supports a single-axis speed of up to 100 m/min, with X-axis speed reaching 120 m/min.
Five-Axis Cutting Capability
Features a 360° rotary C-axis and ±135° oscillating A- axis.
High Positioning Accuracy
Provides ±0.04 mm positioning precision and 0.03 mm repeat positioning precision.
Dual-Station Workbench
Uses a rotating dual-station workbench with a 2.5- second exchange time.
Specifications
| Specification | Details |
|---|---|
| X-axis itinerary | 3000mmY-axis itinerary: 1500mmZ-axis itinerary: 650mm |
| Single axis speed | 100m/min (X-axis can reach 120m/min) |
| Acceleration | 1.0g (can reach 1.2g) |
| Location precision | ±0.04mm |
| Repeat location precision | 0.03mm |
| Rotary axis C axis | n*360° |
| Oscillation axis A axis | ±135°CNC control system: Rexroth/ |
| Workbench | Rotation dual-station workbench |
| Workbench exchanging time | 2.5s |
Maintenance & care
Inspect chuck, clamps/supports and material-contact surfaces. Clean laser head optics, nozzle and protective window regularly. Check assist-gas lines, cooling/chiller and electrical connections. Inspect chuck alignment, rollers/supports and moving mechanisms. Remove cut-off pieces and slag from the work area. Check sensors, cables and guide/drive components. Follow the manufacturer/service schedule for preventive maintenance. Technical Parameter • X-axis itinerary: 3000 mm • Y-axis itinerary: 1500 mm • Z-axis itinerary: 650 mm • Single axis speed: 100 m/min (X-axis can reach 120 m/min) • Acceleration: 1.0 g (can reach 1.2 g) • Location precision: ±0.04 mm • Repeat location precision: 0.03 mm • Rotary axis C axis: n*360° • Oscillation axis A axis: ±135° • CNC control system: Rexroth/Siemens • Workbench: Rotation dual-station workbench • Workbench exchanging time: 2.5 s
May we help?
- What are the main specifications of the HAN'S W3015D?
- The HAN'S W3015D offers 1.0g (can reach 1.2g) acceleration, ±0.04mm location precision, 0.03mm repeat location precision, n*360° rotary axis c axis.
- What is the HAN'S W3015D used for?
- It is used for Tube and pipe fabrication, Structural profiles and frames, Automotive and auto-component tubular parts, Furniture and equipment frames, Construction and industrial fabrication.
- What maintenance does the HAN'S W3015D need?
- Inspect chuck, clamps/supports and material-contact surfaces. Clean laser head optics, nozzle and protective window regularly. Check assist-gas lines, cooling/chiller and electrical connections. Inspect chuck alignment, rollers/supports and moving mechanisms.
