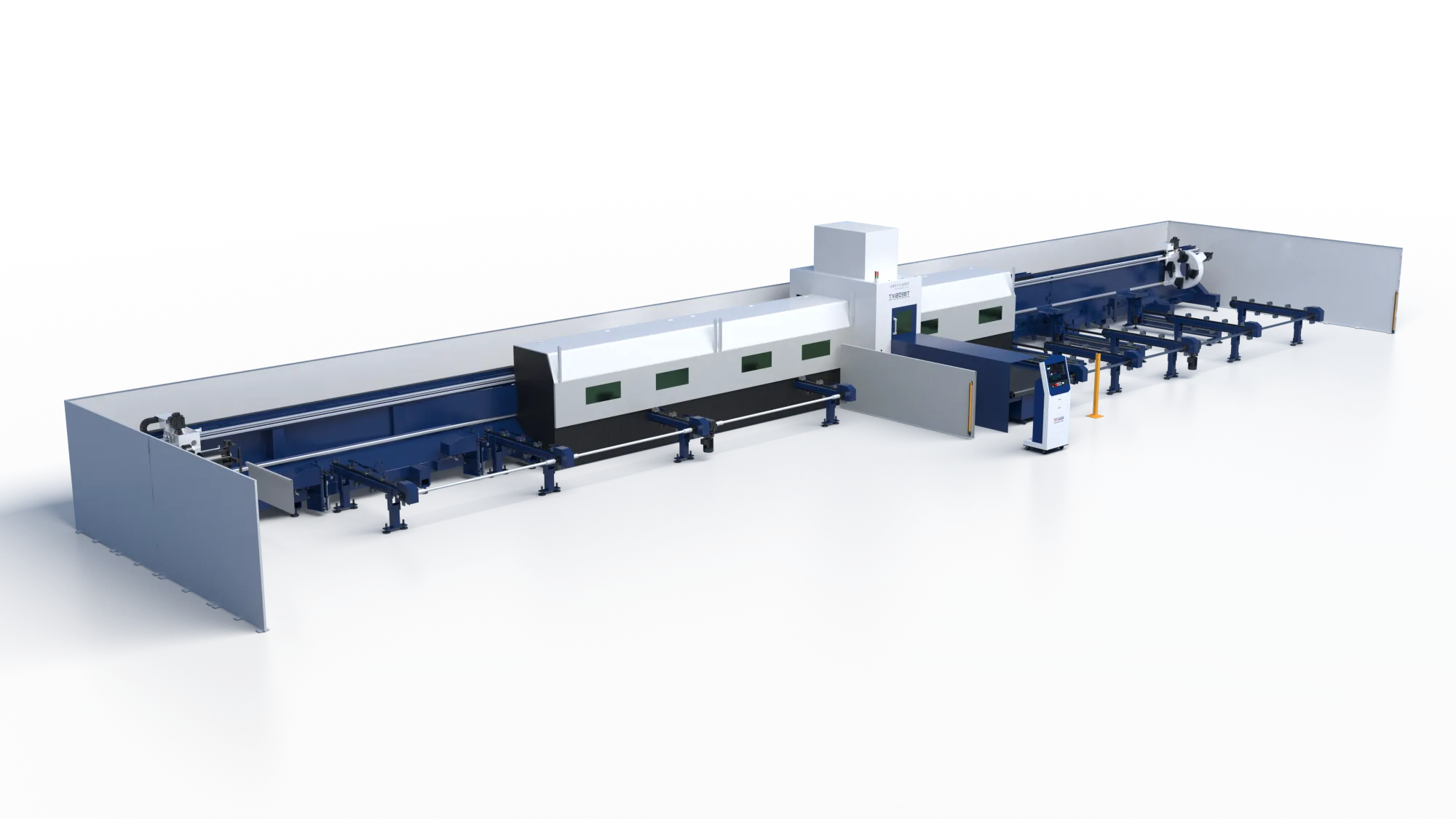

HAN'S WPX12066F
A heavy-duty fiber laser tube cutting machine for processing tubes up to 660 mm in diameter and 12,000 mm in length.
- 12000 × φ80–660 mm Round tube
- 12000 × 80–450 mm Square tube
- 2500 kg Tube weight
- 40 m/min Max. speed
Product description
The WPX12066F is suited for tube and pipe fabrication, structural profiles and frames, automotive and auto-component tubular parts, furniture and equipment frames and construction and industrial fabrication. Power up the laser, CNC, cooling and gas systems, load and align the tube or profile in the chuck/support system, select the cutting program and parameters, check the nozzle, focus and gas supply, then run and monitor the cutting cycle. Unload parts and offcuts safely before shutdown and cleaning.
- Model-specific tube/profile capacity is reflected in WPX12066F data
- CNC programming supports repeatable tube features and cut patterns
- Rotary/chuck handling supports controlled tube positioning
- Automatic/semi-automatic loading can reduce manual handling where configured
- Suitable for repeated tube and profile component production
Features
TX Series Tube/Profile Laser Cutting
Configured for CNC-controlled tube and profile processing.
Large Tube Processing Range
Supports 12000 mm processing length with round tubes from φ80–660 mm and square tubes from 80–450 mm.
Positioning Performance
Provides ±0.01 mm/1000 m positioning accuracy and model-specified repeatability.
Processing Speed
Maximum speed of 40 m/min, with maximum positioning speed specified as 30 r/min in the source data.
Tube Load Capacity
Supports tubes up to 2500 kg, with a maximum of 167 kg/m.
Multiple Processing Lengths
Supports processing lengths of 5800–6200 mm, 8800–9200 mm and 11800–12100 mm.
WPX12066F specification
| Specification | Details |
|---|---|
| Processing Range – Round Tube | 12000 mm × φ80–660 mm |
| Processing Range – Square Tube | 12000 mm × 80–450 mm |
| Positioning Accuracy | ±0.01 mm / 1000 m |
| Repeatability | ±0.1 mm |
| Max. Speed | 40 m/min |
| Max. Positioning Speed | 30 r/min |
| Processing Range | – Lengths 5800–6200 mm / 8800–9200 mm / 11800–12100 mm |
| Unloading Length | 0–12000 mm |
| Length of Leftover Materials | ≥0 |
| Max. Tube Weight | 2500 kg (≤167 kg/m) |
Maintenance & care
Inspect the chuck, clamps, supports and material-contact surfaces regularly. Clean the laser head optics, nozzle and protective window and check assist-gas lines, cooling systems and electrical connections. Inspect chuck alignment, rollers, supports, sensors and drive components. Remove cut-off pieces and slag and follow the manufacturer’s preventive maintenance schedule. Technical Parameter • Processing Range: 12000 mm × φ80–660 mm / 12000 mm × 80–450 mm • Positioning Accuracy: ±0.01 mm/1000 m • Repeatability: ±0.1 mm • Max. Speed: 40 m/min • Max. Positioning Speed: 30 r/min • Processing Range (Lengths): 5800–6200 mm / 8800–9200 mm / 11800–12100 mm • Unloading Length: 0–12000 mm • Length of Leftover Materials: ≥0 • Max. Tube Weight: 2500 kg (≤167 kg/m)
