KW 510B

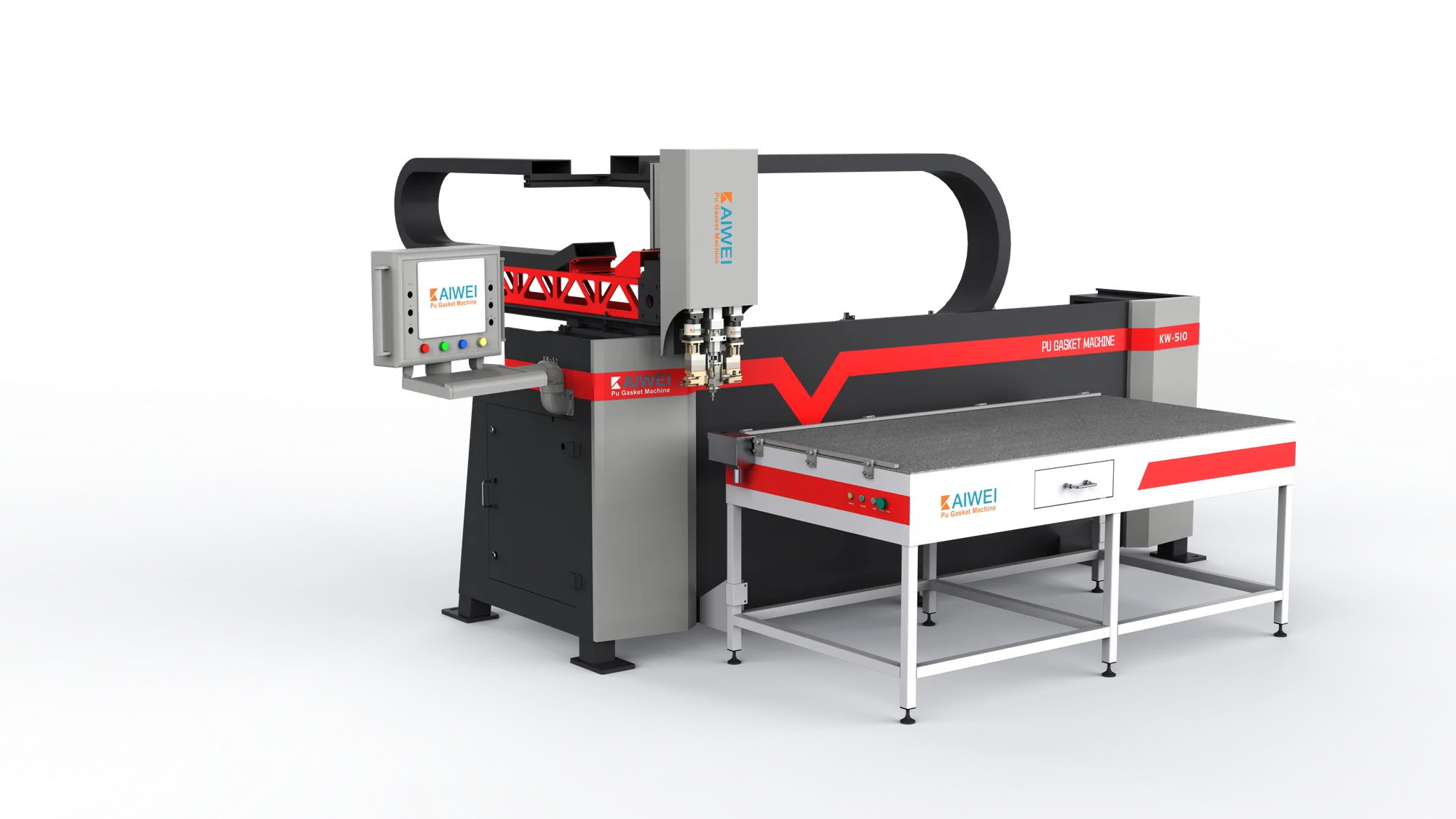

PU Foam Automatic Dispensing Machine for Gasket — 3 cc/r component a.
- 3 cc/r Component A
Product description
The KW-510B is suited for automatic gasket sealing of electrical enclosures, control cabinets, industrial panels, HVAC and refrigeration enclosures, appliance and equipment housings, and formed sheet-metal components. Before operation, power on the machine and verify the electrical, pneumatic, and material systems. Prepare the A and B material tanks according to the material supplier’s procedure, purge the mixing and dispensing head, and load the workpiece. Set the gasket path, mixing ratio, dispensing parameters, and motion speed. Run a test bead to verify width and continuity, then execute the automatic dispensing cycle while monitoring material flow. Clean the dispensing system and work area using the specified procedure after operation.
- Two-component A+B polyurethane processing
- 4–30 mm seal-strip width range
- 1:10 to 10:1 adjustable mixing ratio
- 2250 × 1250 × 200 mm three-axis working stroke
- Running speed of 0–12,000 mm/min
- Three-axis linear robotic arm for programmed dispensing paths
- KW-900 hybrid head
- High-pressure-water cleaning method
- Oil-water separator for the pneumatic air supply
Features
Two-Component PU Processing:
Uses a two-component A+B polyurethane system for automatic foam gasket dispensing.
KW-900 Hybrid Head:
Equipped with the KW-900 hybrid head for the dispensing process.
1:10 to 10:1 Mixing Ratio:
Provides a mixing ratio range from 1:10 to 10:1 for two-component material processing.
4–30 mm Seal-Strip Width:
Supports seal-strip widths from 4–30 mm for different gasket applications.
3-Axis Linear Robotic Arm:
Uses a three-axis linear robotic arm with a working stroke of 2250 × 1250 × 200 mm across the XYZ processing footprint.
Running Speed up to 12,000 mm/min:
Provides a running speed range of 0–12,000 mm/min for programmed dispensing operations.
3 cc/r Component A Metering Pump:
The metering pump specification provided for Component A is 3 cc/r.
Oil-Water Separator:
Uses an oil-water separator to protect pneumatic components from moisture and oil contamination.
High-Pressure Water Cleaning:
The dispensing system uses high-pressure water for eco-friendly, chemical-free rinsing.
Specifications
| Specification | Details |
|---|---|
| Model | No. KW-510B |
| Seal Strip Width | 4–30 mm |
| Mixing Ratio Range | 1:10 to 10:1 |
| Raw Material Tank Capacity Component A | 40 L |
| Working Stroke | 2250 × 1250 × 200 mm (XYZ processing footprint) |
| Running Speed | 0–12,000 mm/min |
| Power Supply | 220V / 380V |
| Power Rating | 4 kW / 5.5 kW |
| Pressure Requirements ≥ | 6 bar |
Maintenance & care
Check the A and B material levels and condition before operation. Inspect the metering pumps, mixing head, and dispensing nozzle for proper condition and possible blockages. Check the pneumatic supply and oil-water separator, and clean the mixing and dispensing system using the specified high-pressure-water cleaning method. Inspect the linear axes, guides, cable routing, sensors, and dispensing path for wear, blockage, or leakage. Follow the manufacturer’s service schedule for pumps, seals, and the motion system.
