Model 3200

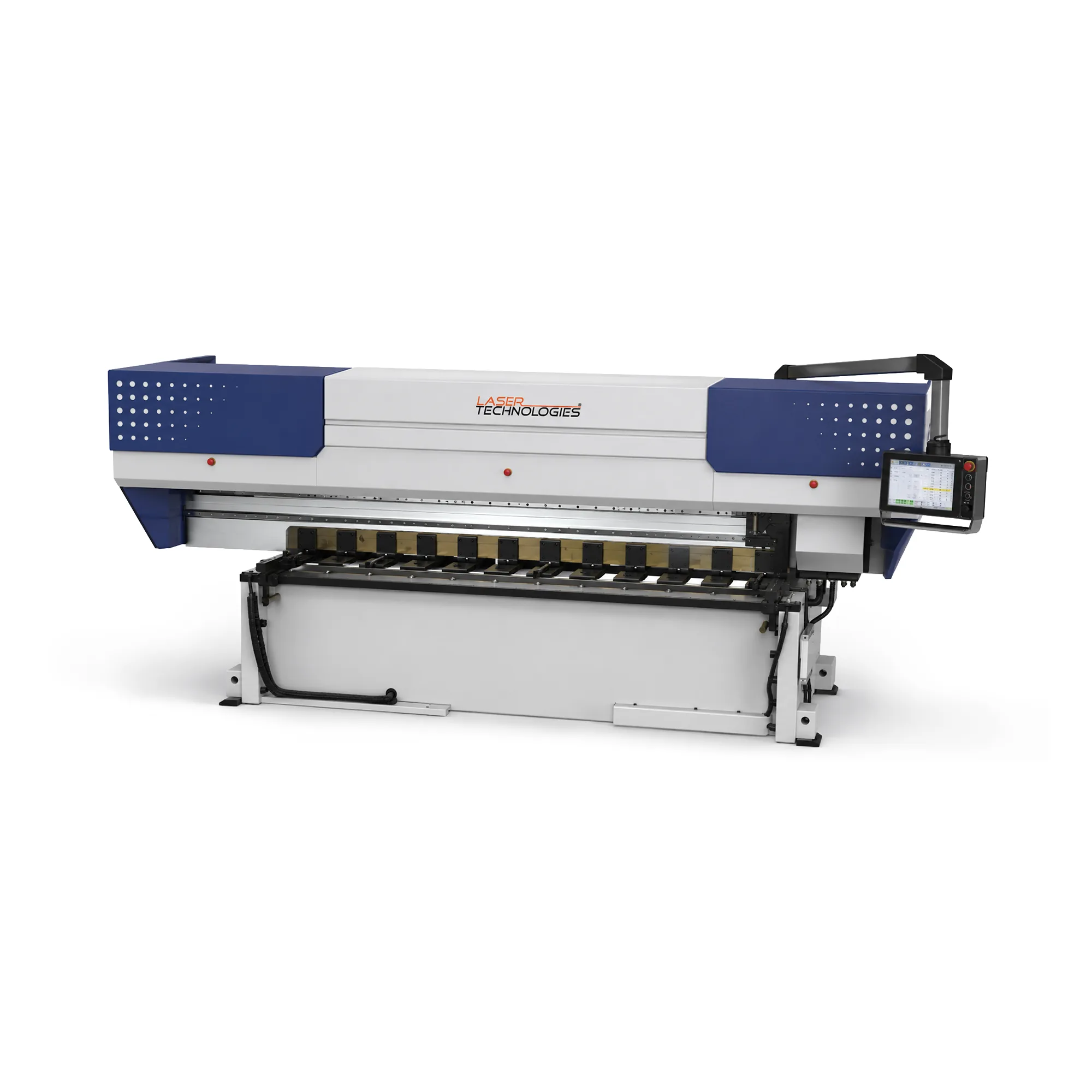

V-Grooving Machine — 1500 mm max width of grooving, 0.4 mm min thickness of grooving, 5.5 kW main motor power.
- 1500 mm Max width of grooving
- 0.4 mm Min thickness of grooving
- 5.5 kW Main Motor power
- 4600 mm Length
Product description
The Model 3200 is suited for architectural and decorative stainless-steel panels, sheet- metal cladding and façade panels, elevator and lift panels, kitchen and furniture panels, enclosures, and formed sheet-metal components. To operate, power up the machine and inspect the tooling, load and align the sheet, and set the groove position, depth, and path according to the job program. Select the appropriate tool and verify the workpiece limits before running the first groove. Inspect the groove position and depth, then continue the programmed grooving operation while monitoring tool condition. Remove the finished sheet, clear chips from the worktable, and shut down the machine according to the operating procedure.
- Maximum grooving length of 3200 mm
- Maximum grooving width of 1500 mm
- Stainless-steel grooving thickness up to 6 mm
- Supports material thickness down to 0.4 mm
- X-axis working speed of 5–70 m/min
- X-axis return speed of 100 m/min
- 5.5 kW main motor
- 9 mm minimum side distance
Features
1500 mm Maximum Grooving Width:
Supports sheets with a maximum grooving width of 1500 mm.
3200 mm Maximum Grooving Length:
Provides a maximum grooving length of 3200 mm for larger sheet-metal panels.
6 mm Maximum Stainless-Steel Grooving Thickness:
Handles stainless-steel grooving thicknesses up to 6 mm.
0.4 mm Minimum Material Thickness:
Supports material thicknesses down to 0.4 mm.
9 mm Minimum Side Distance:
The listed minimum side distance is 9 mm.
5–70 m/min X-Axis Working Speed:
Provides an X-axis working speed range of 5–70 m/min.
100 m/min X-Axis Return Speed:
The X-axis can return at a speed of up to 100 m/min.
5.5 kW Main Motor:
Uses a 5.5 kW main motor for the listed machine configuration.
Specifications
| Specification | Details |
|---|---|
| Model | No. Model 3200 |
| Max. Width of Grooving | 1500 mm |
| Max. Length of Grooving | 3200 mm |
| Steel | 6 mm |
| Min. Thickness of Grooving | 0.4 mm |
| Min. Side Distance | 9 mm |
| X-Axis Working Speed | 5–70 m/min |
| X-Axis Return Speed | 100 m/min |
| Main Motor Power | 5.5 kW |
| Machine Length | 4600 mm |
| Machine Width | 2650 mm |
| Machine Height | 1950 mm |
Maintenance & care
Inspect grooving tools regularly for wear or damage and keep the worktable and guide surfaces clean. Check the X-axis drive, guideways, and mechanical transmission, along with the motor, electrical panel, and control connections. Remove chips and dust after operation and lubricate mechanical points according to manufacturer requirements. Follow the preventive-maintenance schedule for tooling and drive components.
