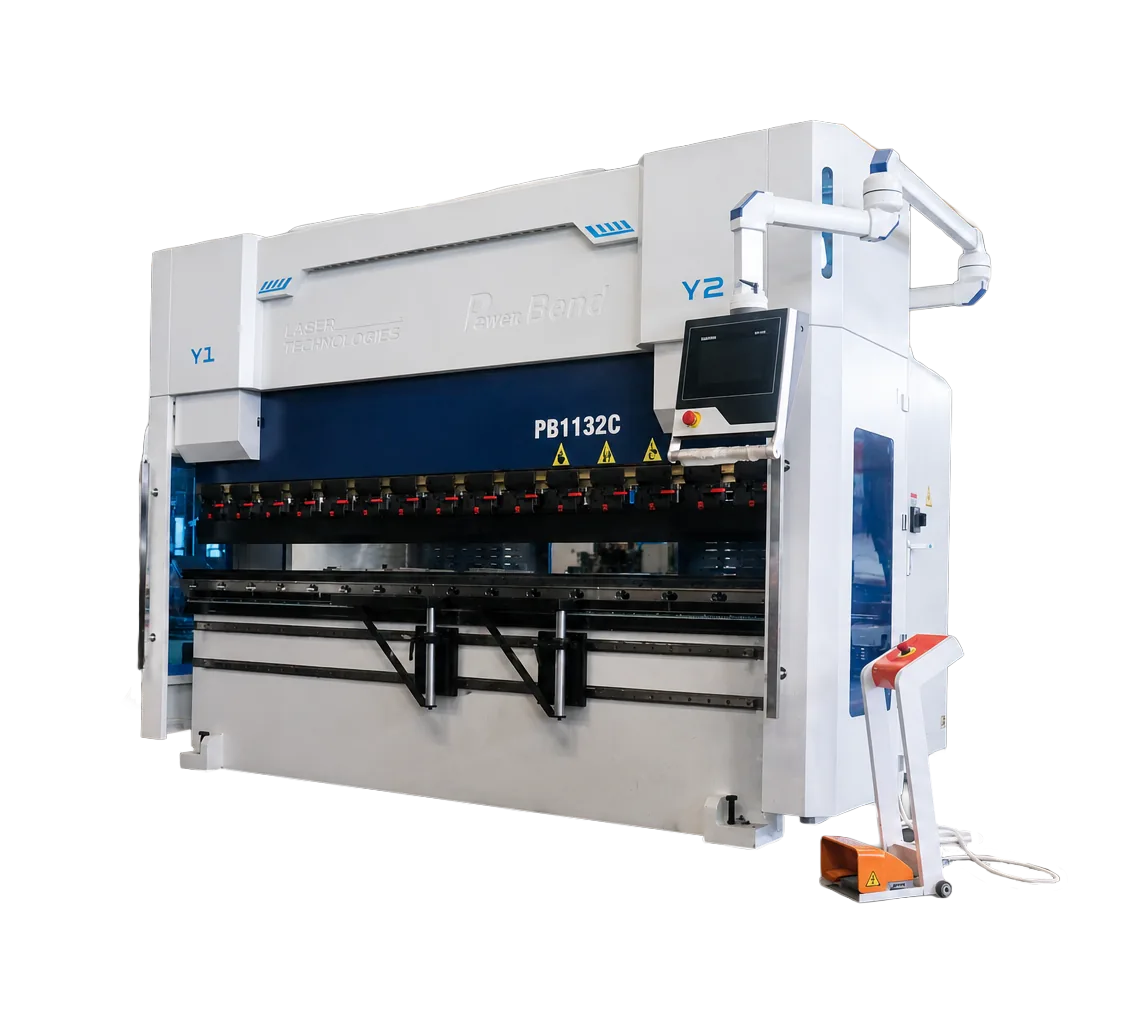

PB 70T/2500
Power Bend — 2500 mm worktable length, 2000 mm column distance, 150 mm stroke.
- 2500 mm Worktable Length
- 2000 mm Column Distance
- 150 mm Stroke
- 440 mm Daylight
Product description
The PB-70T/2500 is suited for electrical panels and enclosures, automotive and auto- component sheet-metal parts, HVAC components and ducts, industrial cabinets, frames and brackets, and general fabrication and precision sheet-metal components. For operation, power on the machine and controller and complete the required hydraulic and servo checks, select or create the bending program, install and align the required punch and die, enter the material, thickness, bend angle and positioning parameters, and position the sheet using the backgauge. Perform the first bend and check the angle and dimensions before continuing the programmed bending sequence while monitoring the workpiece. Unload the finished part, clean the tooling and work area, and complete the normal shutdown procedure.
- 700 KN bending force for the specified forming requirements
- 2500 mm working length for corresponding sheet sizes
- 4+1 axis configuration for programmed bending and positioning
- Delem DA53TX controller for CNC machine operation
- 300 mm throat depth and 150 mm stroke for the specified forming envelope
Features
700 KN Bending Force
The PB-70T/2500 provides a maximum bending force of 700 KN for the specified sheet- metal forming applications.
2500 mm Working Length
The machine provides a 2500 mm working length for bending sheets within its specified working range.
4+1 Axis CNC Configuration
The 4+1 axis configuration supports programmed bending and positioning operations.
Delem DA53TX Controller
The Delem DA53TX controller provides the stated CNC control interface for machine operation.
300 mm Throat Depth
The machine features a 300 mm throat depth for the specified forming requirements.
150 mm Stroke
The 150 mm ram stroke provides the specified vertical travel for bending operations.
Specifications
| Specification | Details |
|---|---|
| Model | 70T2500 |
| Bending Force | 700 KN |
| Worktable Length | 2500 mm |
| Column Distance | 2000 mm |
| Stroke | 150 mm |
| Daylight | 440 mm |
| Throat Depth | 300 mm |
| Approach Speed | 200 mm/s |
| Working Speed | 14 mm/s |
| Return Speed | 180 mm/s |
| Induction Motor Power | 5.5 KW |
| Servo Motor Power | 8.5 KW |
| Dimensions (L × W × H) | 3200 × 1850 × 2330 mm |
| Oil Tank Capacity | 170 L |
| Axis Configuration | 4+1 Axis |
Maintenance & care
Check the hydraulic and servo systems and oil level where applicable. Inspect the punch and die condition and clean tooling surfaces regularly. Check the backgauge, guideways and axis movement, along with the electrical and control panel, cables and sensors. Lubricate mechanical points according to manufacturer requirements, verify tooling alignment and work area cleanliness, and follow the recommended preventive maintenance schedule.
May we help?
- What are the main specifications of the PB 70T/2500?
- The PB 70T/2500 offers 2500 mm worktable length, 2000 mm column distance, 150 mm stroke, 440 mm daylight.
- What is the PB 70T/2500 used for?
- It is used for Electrical panels and enclosures, Automotive and auto-component sheet-metal parts, HVAC components and ducts, Industrial cabinets, frames and brackets, General fabrication and precision sheet-metal components.
- What maintenance does the PB 70T/2500 need?
- Check hydraulic/servo system status and oil level where applicable. Inspect punch and die condition and clean tooling surfaces. Check backgauge, guideways and axis movement. Inspect electrical/control panel, cables and sensors.
