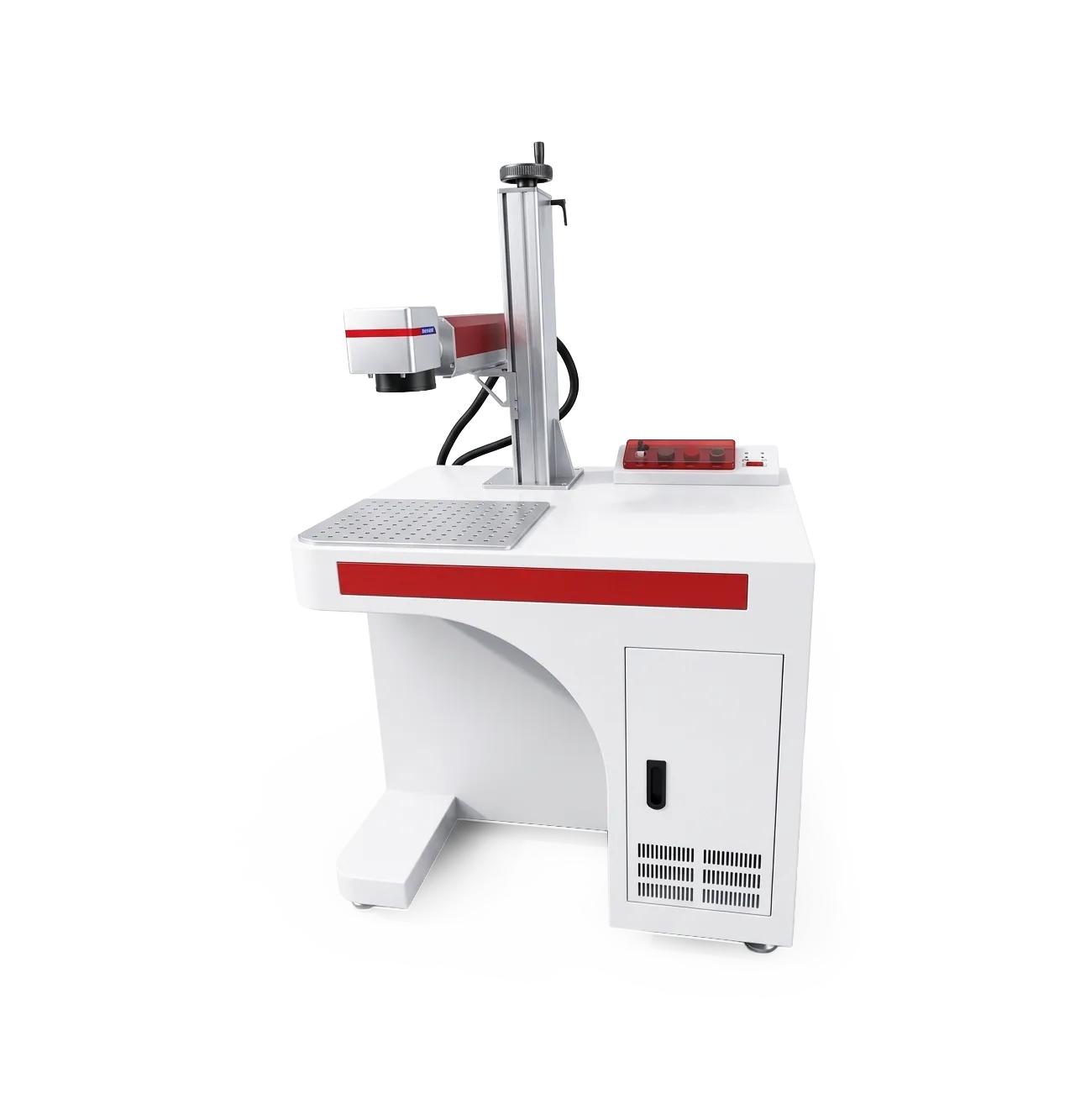

RightMark-20W
A compact, air-cooled 20W fiber laser marking machine for high-speed, precise marking on industrial components.
- 20 W Output power
- 10,000 mm/s Maximum speed
- 0.03 mm Minimum line width
- Air cooled Cooling
Product description
The Photon-X RightMark-20W uses a 1064 nm fiber laser source to deliver high-speed marking at up to 10,000 mm/s. With adjustable power from 0–100%, a minimum line width of 0.03 mm, and marking depths of 0.01–0.3 mm depending on the material, it supports detailed and permanent marking applications. The machine features a standard 110 × 110 mm marking area, with optional 200 × 200 mm and 300 × 300 mm configurations, plus support for PLT, DXF, BMP, SHX and TTF formats.
Features
High-Speed Fiber Laser Marking
The 20W fiber laser delivers marking speeds of up to 10,000 mm/s for efficient processing across production applications.
Fine, Precise Marking
A minimum line width of 0.03 mm and minimum character height of 0.5 mm support clear marking of fine text, codes and graphics.
Adjustable Laser Power
Laser power can be adjusted from 0–100% to help match marking intensity to the material and application.
Flexible Marking Areas
The standard 110 × 110 mm marking field can be configured with optional 200 × 200 mm or 300 × 300 mm fields.
Broad File Format Support
The system supports PLT, DXF, BMP, SHX and TTF formats for convenient integration of graphics, text and marking data.
Air-Cooled Operation
The air-cooled design reduces the need for dedicated cooling infrastructure while supporting efficient machine operation.
RightMark-20W specification
| Specification | Details |
|---|---|
| Model | RightMark-20W |
| Product Type | Laser marking machine |
| Wavelength | 1064 nm |
| Power Adjustment | 0–100% |
| Cooling | Air cooled |
| Minimum Line Width | 0.03 mm* |
| Maximum Speed | 10,000 mm/s |
| Marking Depth | 0.01–0.3 mm* |
| Minimum Character Height | 0.5 mm |
| Standard Marking Range | 110 × 110 mm |
| Optional Marking Range | 200 × 200 mm / 300 × 300 mm |
| Supporting Formats | PLT, DXF, BMP, SHX, TTF |
| Output Power Stability | <3% |
| Output Power | 20 W |
| Single Pulse Energy | 1.0 mJ @ 20 kHz |
| Repetition Frequency | 20–60 kHz |
Maintenance & care
Keep the marking area, optical components and ventilation paths clean and free from dust or debris to support consistent performance. The air-cooled configuration removes the need for a separate water-cooling system. Keep the machine in a clean, dry operating environment and follow the recommended inspection and service procedures for the laser source and marking head.
May we help?
- What is the maximum marking speed of the RightMark-20W?
- The RightMark-20W can achieve a maximum linear marking speed of 10,000 mm/s, depending on the marking application and material.
- What marking area does the RightMark-20W support?
- The standard marking area is 110 × 110 mm. Optional marking fields of 200 × 200 mm and 300 × 300 mm are also available.
- What file formats does the RightMark-20W support?
- The system supports PLT, DXF and BMP files, along with direct use of SHX and TTF character fonts.
