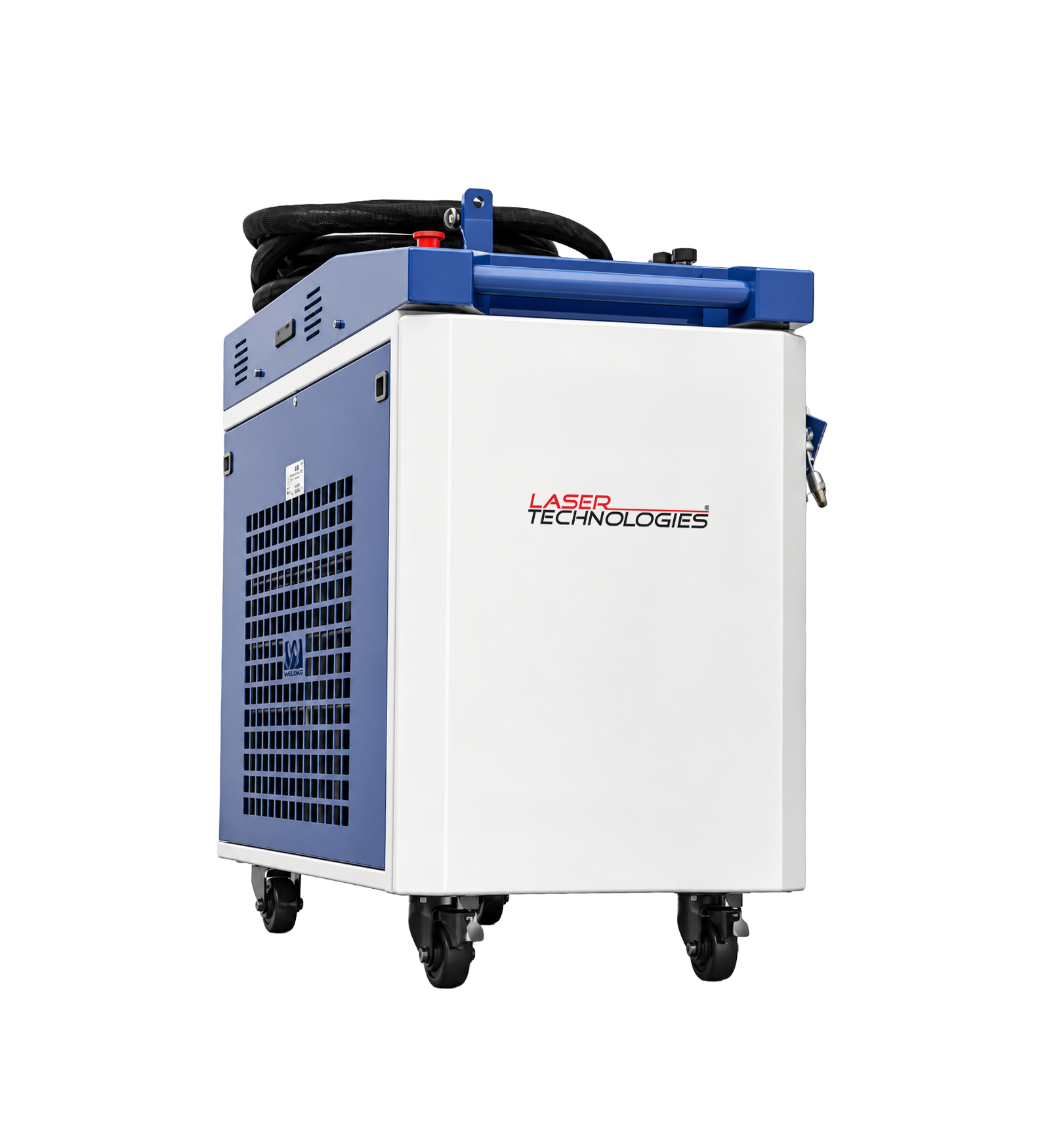

RightWeld
A water-cooled handheld laser welding system with up to 3,000 W laser power, 0–5 mm wobble range and an inbuilt water tank for continuous operation.
- 1.5–3 kW Laser power
- 0–5 mm Wobble range
- 0.5–5 mm Welding thickness
- 24 hours Continuous working
Product description
RightWeld is specified for welding applications involving stainless steel, carbon steel, galvanized steel, and aluminum, including sheet-metal enclosures, frames, kitchen and furniture components, and general engineering assemblies. Before operation, inspect the welding head, optics, water-cooling system, and gas connections. Prepare and fixture the workpieces, then select the appropriate laser power, pulse frequency, and wobble settings. Check the welding gap and nozzle position before starting the process. Perform a test weld, then proceed with welding while monitoring the weld pool and machine operation. After welding, inspect the finished joint, clean the workpiece and welding area, and stop the system according to the operating procedure.
- 1500 W / 2000 W / 3000 W laser power options
- Water-cooling system with inbuilt water tank
- 1–20 Hz laser pulse frequency
- 0.0–5.0 mm wobble range
- Welding gap requirement of ≤ 0.5 mm
- Suggested welding thickness of 0.5–5 mm, depending on materials
- 24-hour continuous working time
- 220 V / 380 V, 50 Hz working voltage
Features
Handheld Laser Welding Configuration
RightWeld is a handheld laser welding system.
Multiple Laser Power Options
The system is specified with laser power options of 1500 W, 2000 W, and 3000 W.
Water Cooling
The welding system uses water cooling with an inbuilt water tank.
Adjustable Wobble Range
The wobble range is specified from 0.0 mm to 5.0 mm.
1–20 Hz Laser Pulse Frequency
The system operates with a laser pulse frequency of 1–20 Hz.
24-Hour Continuous Working Time
The supplied specifications list a continuous working time of up to 24 hours.
Welding Thickness
The suggested welding thickness is 0.5–5 mm, depending on the material.
Specifications
| Specification | Details |
|---|---|
| Laser Power | 1500 W / 2000 W / 3000 W |
| Electric Power < | 6 kW |
| Laser Pulse Frequency | 1–20 Hz |
| Welding Gap Requirement ≤ | 0.5 mm |
| Wobble Range | 0.0–5.0 mm |
| Minimum Welding Pool | 0.8 mm |
| Machine Dimensions | 120 × 60 × 90 cm / 120 × 60 × 115 cm |
| Temperature | 15–35°C |
| Optical Fiber | 25 µm, 10 m |
| Continuous Working Time | 24 hours |
| Suggested Welding Thickness | 0.5–5 mm, depending on materials |
| Gross Weight | 240 kg |
| Working Voltage | 220 V / 380 V, 50 Hz |
Maintenance & care
Inspect the welding head, nozzle, protective glass, and optics regularly. Check the water- cooling system and inbuilt water tank. Verify shielding or assist gas connections and inspect the optical fiber, torch cable, and electrical connections. Clean welding spatter from the nozzle and work area. Where applicable, inspect the wire feeder and welding consumables. Follow the manufacturer's recommended maintenance schedule for periodic servicing.
May we help?
- What laser power options are available?
- The RightWeld is available with 1,500 W, 2,000 W and 3,000 W laser power options.
- What is the wobble range of the RightWeld?
- The system has an adjustable wobble range from 0.0 to 5.0 mm.
- What welding thickness is recommended?
- The suggested welding thickness is 0.5–5 mm, depending on the material.
