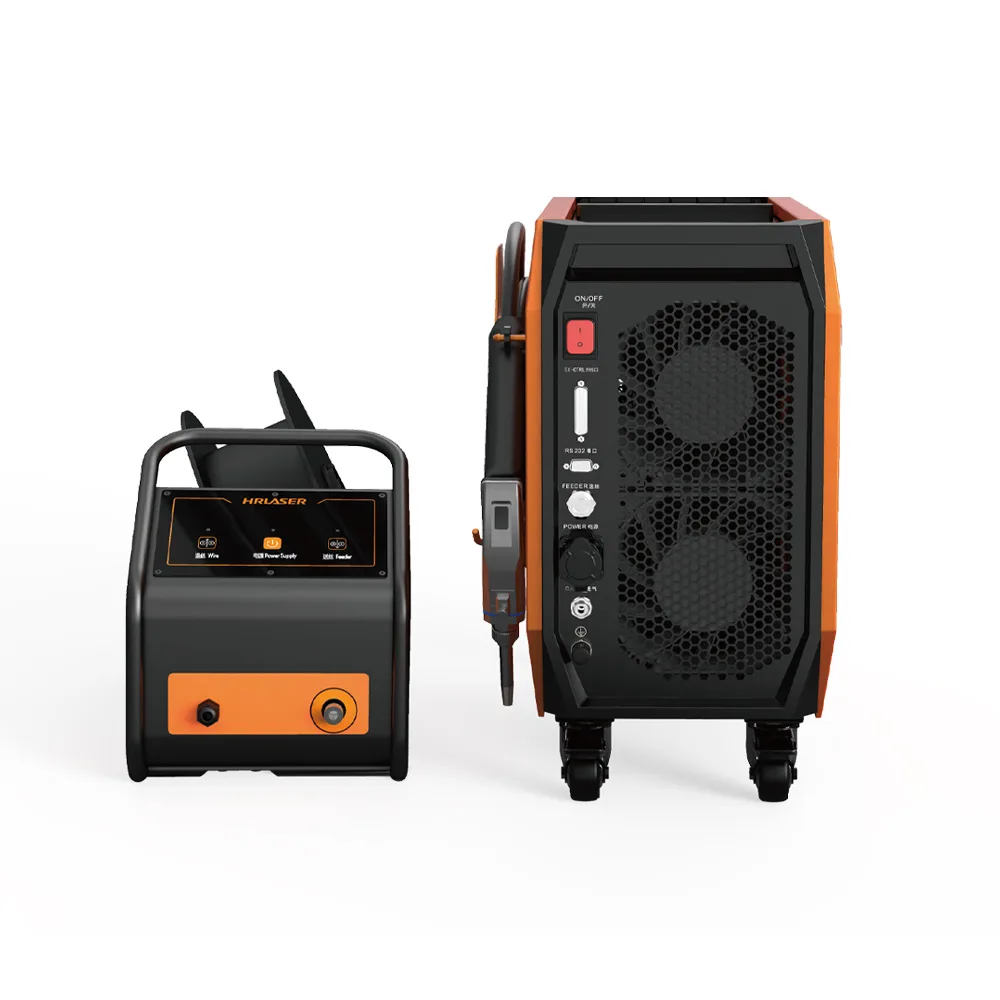

A1MD30i
An ultra-light air-cooled handheld fiber laser welding system with D-Mode operation, adjustable laser wobble and a compact design for mobile welding applications.
- < 29 kg Machine weight
- 0.68 kg Torch weight
- 0–4 mm Laser wobble
- 3.0 mm Single-side penetration
Product description
The A1MD30i is specified for welding stainless steel, carbon steel, galvanized steel, and aluminum assemblies, including sheet-metal enclosures, frames, kitchen and furniture components, and general engineering assemblies. Before operation, inspect the welding head, cooling system, and gas connections. Prepare and fixture the workpieces, then select the appropriate welding parameters. Set the required laser power and wobble range, check the nozzle position, and perform a test weld before processing. During welding, monitor the weld pool and machine status. After welding, inspect the finished joint, clean the workpiece and welding area, and stop the system according to the operating procedure.
- 2500 W rated power
- Continuous and pulsed working modes
- 0–4 mm laser wobble range
- Machine weight below 29 kg
- 0.68 kg welding torch
- 220 VAC input voltage
- Single-side penetration of up to 3.0 mm for stainless steel, carbon steel, and
- Single-side penetration of up to 2.0 mm for aluminum
Features
Handheld Laser Welding Configuration
I-Weld handheld laser welding system designed around the A1MD30i model.
2500 W Rated Power
The machine has a rated power of 2500 W.
Continuous and Pulsed Operation
The A1MD30i operates in continuous or pulsed working modes.
0–4 mm Laser Wobble
The system provides a laser wobble range of 0–4 mm.
Compact Machine Design
The machine weighs less than 29 kg and has a volume of less than 0.08 m³.
Lightweight Welding Torch
The welding torch weighs 0.68 kg.
Material Penetration
Single-side penetration is specified at up to 3.0 mm for stainless steel, carbon steel, and galvanized steel, and up to 2.0 mm for aluminum.
Specifications
| Specification | Details |
|---|---|
| Machine Weight < | 29 kg |
| Machine Volume < | 0.08 m³ |
| Overall Dimensions | 577 × 265 × 512 mm |
| Torch Weight | 0.68 kg |
| Laser Wobble | 0–4 mm |
| Input Voltage | 220 VAC |
| Rated Power | 2500 W |
| Operating Temperature | 0–40°C |
| Stainless Steel Penetration | 3.0 mm |
| Carbon Steel Penetration | 3.0 mm |
| Penetration | 3.0 mm |
| Aluminum Penetration | 2.0 mm |
Maintenance & care
Inspect the welding head, nozzle, protective glass, and optics regularly. Check the air- cooling condition and verify shielding or assist gas connections. Inspect the fiber, torch cable, and electrical connections for damage or wear. Clean welding spatter from the nozzle and work area. Where applicable, inspect the wire feeder and welding consumables. Follow the manufacturer's recommended maintenance schedule for periodic servicing.
May we help?
- What type of welding system is the A1MD30i?
- The A1MD30i is an air-cooled handheld fiber laser welding system designed for mobile and on-site welding applications.
- Does the A1MD30i support continuous and pulsed welding?
- Yes. It supports both continuous and pulsed D-Mode operation, with a laser wobble range of 0–4 mm.
- What is the machine weight?
- The A1MD30i weighs less than 29 kg, while the handheld torch weighs 0.68 kg.
