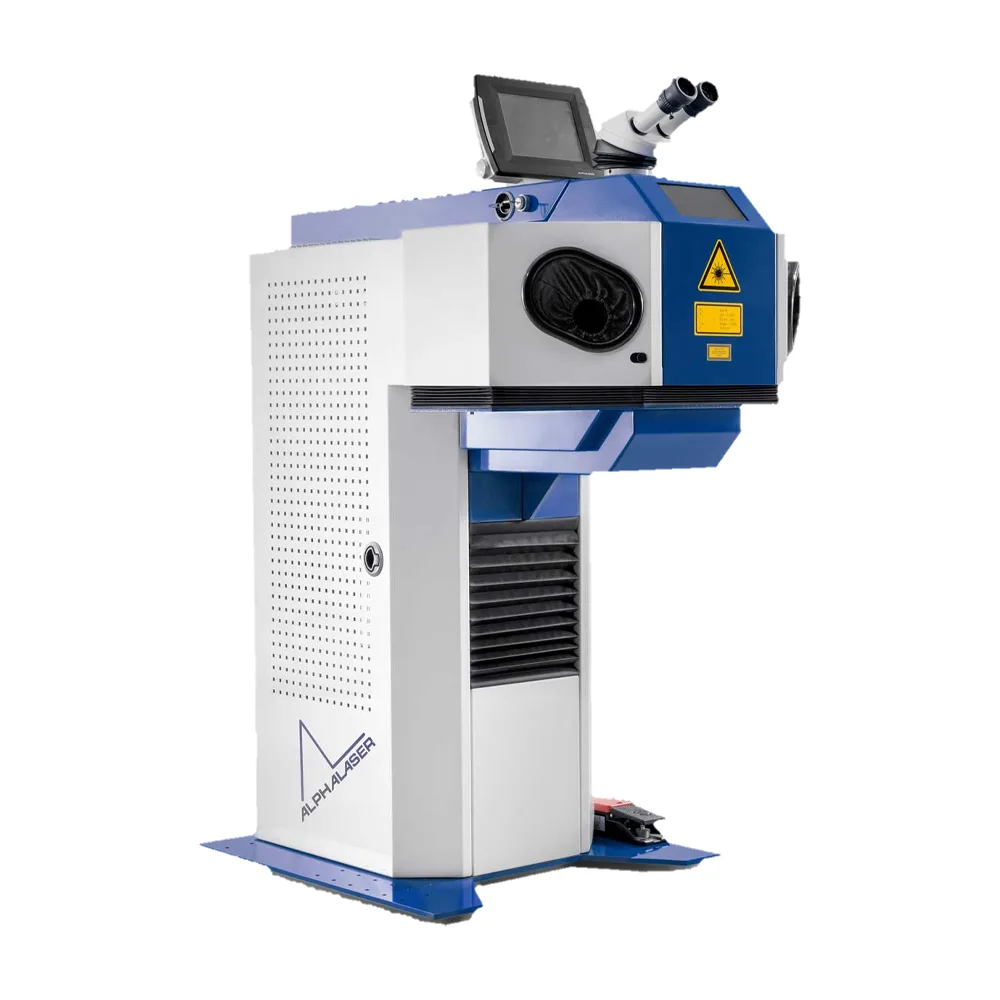

ALV 300F
A compact German-made laser welding system supporting Nd:YAG and fiber laser configurations, pulsed and CW operation, and flexible welding spot sizes.
- 120–300 W Average power
- 3–9 kW Peak pulse power
- Nd & fiber Laser options
- Pulsed / CW Operating modes
Product description
The ALV 300F is used for stainless-steel and carbon-steel fabrication, galvanized-steel and aluminum assemblies where supported by the model and process data, sheet-metal enclosures and frames, kitchen and furniture fabrication, and general engineering welding assemblies. To operate the system, inspect the laser head, cooling system, and gas supply before startup. Prepare and securely fixture the workpieces, select the welding program and required laser configuration, and set the laser power, pulse duration, frequency, and operating mode. Select the required welding spot and focal distance, then perform a test weld before starting the welding process. Monitor the weld and machine status during operation, inspect the finished weld, clean the workpiece and work area, and stop the system according to the operating procedure.
- 120–300 W average power
- Nd:YAG 1064 nm and fiber laser 1070 nm configurations
- 3–9 kW peak pulse power
- 30–75 J pulse energy
- Pulsed and CW operating modes
- Ø0.2–2.0 mm and Ø0.2–3.0 mm welding spot options
- Optional Ø0.1–4.0 mm welding spot
- 120 mm and 150 mm focal distance options
- Adjustable pulse power curve
- 3.5 m energy chain length
Features
120–300 W Average Power
The ALV 300F provides an average power range of 120–300 W.
Nd:YAG and Fiber Laser Options
The system is specified with an Nd:YAG laser at 1064 nm or a fiber laser at 1070 nm.
3–9 kW Peak Pulse Power
Peak pulse power is specified from 3–9 kW according to the laser configuration.
30–75 J Pulse Energy
Pulse energy is specified from 30–75 J according to the laser configuration.
Pulsed and CW Operation
The ALV 300F supports pulsed and continuous-wave operating modes.
Multiple Welding Spot Sizes
Welding spot sizes are specified as Ø0.2–2.0 mm and Ø0.2–3.0 mm, with an optional Ø0.1–4.0 mm configuration.
120 mm or 150 mm Focal Distance
The system provides focal distance options of 120 mm and 150 mm.
Adjustable Pulse Shaping
The power curve within a laser pulse can be adjusted.
Specifications
| Specification | Details |
|---|---|
| Wavelength Nd:YAG | 1064 nm / Fiber Laser 1070 nm |
| Average Power | 120–300 W |
| Peak Pulse Power | 9–3 kW |
| Pulse Energy | 75–30 J |
| Pulse Duration | 0.5–20 ms / 0.2 ms–CW / 0.2–50 ms or CW |
| Pulse Frequency Single pulse–50 Hz / | 100 Hz |
| Welding Spot | Ø0.2–2.0 mm / Ø0.2–3.0 mm, optional Ø0.1–4.0 |
| Focal Distance | 120 mm / 150 mm |
| Energy Chain Length | 3.5 m |
Maintenance & care
Inspect the welding head, nozzle, protective glass, and optics regularly. Check the cooling system where applicable and verify the shielding or assist gas supply and connections. Inspect the fiber, torch cable, energy chain, and electrical connections. Clean spatter from the nozzle and work area. Check the wire feeder and welding consumables where fitted. Follow the manufacturer's service schedule for periodic preventive maintenance.
