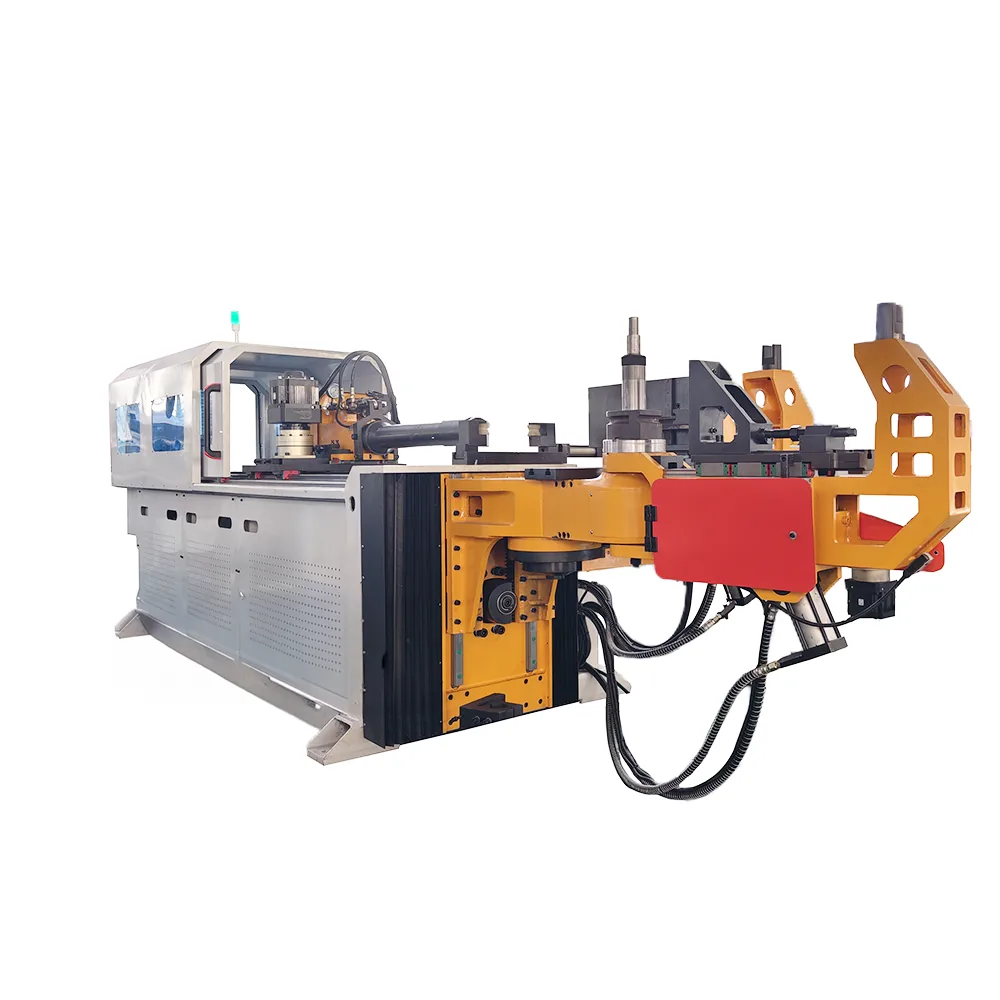

BLMA DW50CNC 5A MSV
CNC Pipe Bending Machine.
Product description
The BLMA DW50CNC 5A MSV is a CNC Pipe Bending Machine from the DW Series.
5-axis motion supports coordinated bending, feeding and rotary positioning. Bending accuracy of ±0.1° is listed for the model. Rotary and feeding accuracy support repeatable tube positioning.
It is used for Automotive and auto-component tube parts, Furniture and frame tubes, HVAC and refrigeration tube assemblies, Exhaust and structural tubing, General tube and profile fabrication.
Features
5-axis CNC pipe bending configuration
DW50CNC-5A-MSV
Servo-controlled bending, feeding and rotary/shifting
Axes
Maximum bending radius
R250 mmMin Bending RadiusAccording to pipe diameter
Maximum bending degree: 190°Feeding MethodClamping
/ direct feedingMax Feeding Length2500 mm
Bending accuracy
±0.1°
Rotary accuracy
±0.1°
Feeding accuracy: ±0.1 mmServo System
(5-Axis)Bending Servo Motor7 kWFeeding Servo Motor3 kWRotary Servo Motor0.75 kWLeft / Right Shifting Servo1 kWUp / Down Shifting Servo3 kWControl & HardwareInput MethodWorking value (Y, B, C)Max Storage
Storage capacity
up to 1000 groups
Maintenance & care
Inspect bending dies, clamps and tooling for wear.
Check hydraulic oil level/condition and leaks.
Inspect servo motors, cables, sensors and axis mechanisms.
Clean tube-contact surfaces and remove chips.
Check clamping and feeding alignment before production.
Lubricate mechanical points according to manufacturer requirements.
May we help?
- What is the BLMA DW50CNC 5A MSV used for?
- It is used for Automotive and auto-component tube parts, Furniture and frame tubes, HVAC and refrigeration tube assemblies, Exhaust and structural tubing, General tube and profile fabrication.
- What maintenance does the BLMA DW50CNC 5A MSV need?
- Inspect bending dies, clamps and tooling for wear. Check hydraulic oil level/condition and leaks. Inspect servo motors, cables, sensors and axis mechanisms. Clean tube-contact surfaces and remove chips.
