GH-4042DS

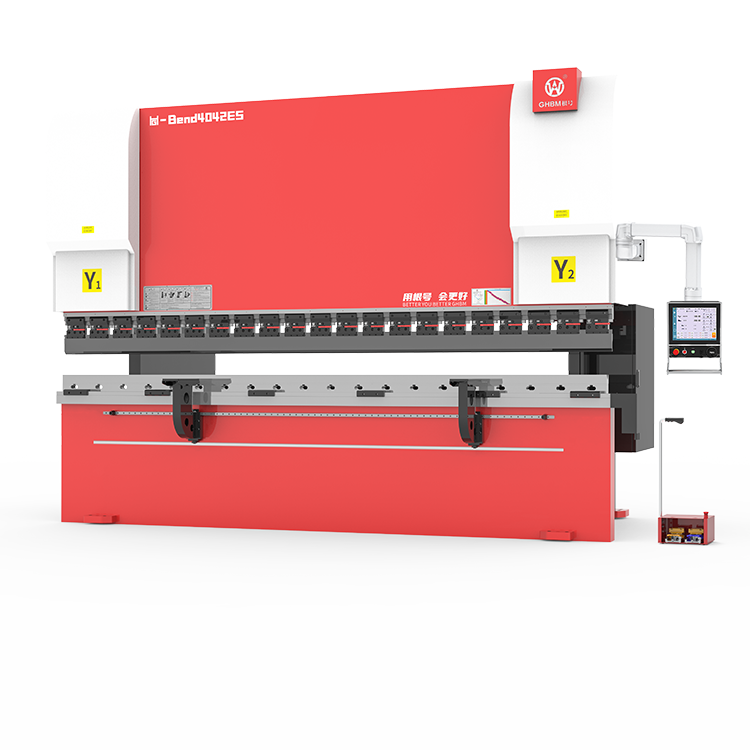

400-ton, 4200 mm heavy-duty DS Series CNC press brake with a 600 mm daylight opening, two 15 kW main servo motors and 7-axis (Y1, Y2, X, R, V, Z1, Z2) control.
- 400 Ton Max. working force
- 4200 mm Max. bending length
- 7-Axis NC axes
- 2 × 15 kW Main servo motors
Product description
The GH-4042DS is a heavy-duty CNC press brake from GHBM's DS Series. It has a working force of 400 tons and a maximum bending length of 4200 mm. Its seven NC axes are Y1, Y2, X, R, V, Z1 and Z2, which control ram movement, backgauge positioning and the worktable.
The machine has a 600 mm daylight opening, a 300 mm ram stroke and a 450 mm throat depth. The hydraulic system is driven by two 15 kW main servo motors, and the specified oil volume is 120 L × 2. It is controlled by a GHBM-940T CNC controller with a 21.5-inch Techmation display. Its configuration includes Techmation servo motors and drives, a DPT hydraulic system, an OPKON closed-loop position sensor, SKF/NOK cylinder seals and a GHBM single-side quick-release clamp.
Features
400-Ton Working Force
Maximum working force of 400 tons for heavy and thick plate bending.
4200 mm Bending Length
4.2-metre maximum bending length, with 3400 mm between columns.
600 mm Daylight Opening
Large opening for tall tooling, deep boxes and deep-formed parts.
300 mm Ram Stroke
Long stroke for tall tooling and deep parts.
450 mm Throat Depth
Deep throat for wider flanges and larger panels.
Dual 15 kW Main Servo Motors
Two 15 kW Techmation main servo motors (15 kW × 2) drive the hydraulic system.
Larger Oil Volume
Hydraulic oil volume specified as 120 L × 2.
Extended Backgauge Travel
X-axis stroke of 800 mm for deeper flange positioning.
Seven-Axis CNC Configuration
Y1, Y2, X, R, V, Z1 and Z2 axes for multi-axis control.
GHBM-940T CNC Controller
Paired with a 21.5-inch Techmation display screen.
Closed-Loop Position Feedback
Uses an OPKON closed-loop position sensor.
Repeatable Backgauge
X-axis: 800 mm stroke, up to 300 mm/s. R-axis: 150 mm stroke, up to 150 mm/s. Repeatable positioning accuracy of ≤0.05 mm on both axes.
Quick-Release Tooling
GHBM single-side quick-release clamp.
Dust-Proof Compensation Worktable
Compensation worktable with dust protection.
Hydraulic Sealing and Fittings
SKF/NOK cylinder seal kit and EATON compression fittings.
Technical Specifications
| Specification | GH-4042DS |
|---|---|
| Series | DS Series |
| Max. Working Force | 400 Ton |
| Max. Bending Length | 4200 mm |
| Distance Between Columns | 3400 mm |
| Ram Stroke | 300 mm |
| Daylight Opening | 600 mm |
| Throat Depth | 450 mm |
| Number of NC Axes | 7-Axis |
| NC Axis Configuration | Y1, Y2, X, R, V, Z1, Z2 |
| Main Motor Servo Power | 15 kW × 2 |
| Oil Volume | 120 L × 2 |
| Ram Approaching Speed | 80 mm/s |
| Ram Working Speed | 8 mm/s |
| Ram Returning Speed | 80 mm/s |
| Backgauge X-Axis Stroke | 800 mm |
| Backgauge X-Axis Max. Running Speed | 300 mm/s |
| Backgauge X-Axis Repeatable Positioning Accuracy | ≤0.05 mm |
| Backgauge R-Axis Stroke | 150 mm |
| Backgauge R-Axis Max. Running Speed | 150 mm/s |
| Backgauge R-Axis Repeatable Positioning Accuracy | ≤0.05 mm |
| Machine Length | 4400 mm |
| Machine Width | 2350 mm |
| Machine Height | 3200 mm |
| Machine Weight | Approximately 27000 kg |
Configuration and Component Brands
| Component | Brand / Origin |
|---|---|
| Machine Frame | GHBM — China |
| Single-Side Quick-Release Clamp | GHBM — China |
| Multi-Axis Control Backgauge System | GHBM — China |
| Hydraulic Pump | OLD — China |
| Hydraulic Cylinder | GHBM — China |
| Dust-Proof Compensation Worktable | GHBM — China |
| GHBM-940T CNC Controller | GHBM — China |
| 21.5-Inch Display Screen | Techmation — Taiwan |
| Main Servo Motor | Techmation — Taiwan |
| X, R-Axis Servo Motor | Techmation — Taiwan |
| X, R-Axis Servo Driver | Techmation — Taiwan |
| Hydraulic System | DPT — China |
| Cylinder Seal Kit | SKF / NOK — America / Japan |
| Compression Fitting | EATON — USA |
| Foot Switch | Kacon — Korea |
| Closed-Loop Position Sensor | OPKON — Turkey |
| Inductive Proximity Switch | OMRON — Japan |
| Low-Voltage Control Components | Schneider — France |
Maintenance & care
General recommendations for servo-hydraulic CNC press brakes. Follow the manufacturer's manual for model-specific requirements.
- Daily cleaning: Remove metal debris and dust from the full length of the worktable, tooling, clamps and backgauge area.
- Hydraulic oil checks: Check the oil level and condition in both 120 L oil volumes regularly. Replace oil and filters at the manufacturer's recommended intervals.
- Leak and seal inspection: Inspect the cylinders, pumps, hoses and fittings on both hydraulic circuits for leaks, and replace worn seals promptly.
- Motor checks: Watch both main servo motors for abnormal noise, heat or vibration.
- Tooling inspection: Check punches, dies and quick-release clamps along the full bending length for wear, damage or incorrect seating. Confirm that the tooling is rated for the tonnage being applied, and that tall tooling is secured properly.
- Lubrication: Lubricate backgauge guides, screws and other moving parts as specified by the manufacturer.
- Axis and backgauge checks: Watch for abnormal noise, vibration, positioning drift or unexpected movement across the full 800 mm X-axis travel.
- Electrical inspection: Check cables, connectors, switches and the control panel. Only qualified personnel should do electrical work.
- Safety checks: Before production, verify that the foot switch, emergency stops and safety devices work correctly.
- Periodic servicing: Schedule manufacturer-recommended inspections and keep a log of maintenance and faults.
