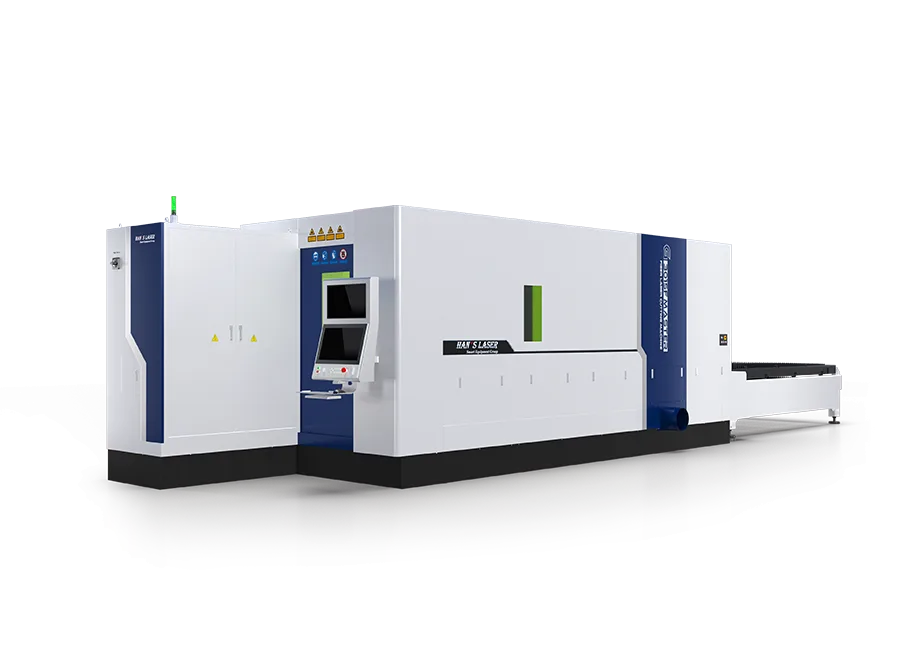

HAN'S G12025F
An ultra-large-format fiber laser cutting machine with a 12,200 × 2550 mm working area and 15,300 kg sheet capacity.
- 12,200 × 2550 mm Working area
- 3–60 kW Laser power
- 200 m/min Axis speed
- 2.5 G Acceleration
Product description
The G12025F is suited for sheet-metal fabrication, automotive and auto components, electrical panels, industrial enclosures, HVAC, kitchen equipment and general engineering applications. Load the sheet within the working area, select the cutting program and process parameters, check the nozzle, focus and gas supply, then run and monitor the programmed cutting cycle. Unload parts and scrap safely before completing the normal shutdown procedure.
- 12,200 × 2550 mm working area
- 200 m/min maximum axis positioning speed
- ±0.03 mm/m positioning accuracy
- 15,300 kg/table maximum sheet weight
- Laser power options from 3 kW to 60 kW
Features
12,200 × 2550 mm Working Area
The G12025F provides a 12,200 × 2550 mm working area for sheet-metal cutting applications.
High-Speed Axis Positioning
The machine reaches a maximum axis positioning speed of 200 m/min with maximum acceleration of 2.5 G.
High Positioning Accuracy
The G12025F provides positioning accuracy of ±0.03 mm/m and repeatability of ±0.02 mm.
15,300 kg Sheet Load Capacity
The machine supports a maximum sheet weight of 15,300 kg per table.
Multiple Laser Power Options
The G12025F is available with laser power options from 3 kW to 60 kW.
Specifications
| Specification | Details |
|---|---|
| Working Area | 12,200 × 2550 mm |
| Max. Acceleration (X/Y) | 2.5 G |
| Max. Axis Positioning Speed (X/Y) | 200 m/min |
| Accuracy | ±0.03 mm/m |
| Repeatability | ±0.02 mm |
| Max. Sheet Weight | 15,300 kg/table |
| Available Laser Power | 3 / 6 / 12 / 20 / 30 / 40 / 60 kW |
| Dimensions (L × W × H) | 29 × 4.1 × 2.5 m |
Maintenance & care
Inspect and clean the cutting head optics, nozzle and protective window regularly. Check assist-gas connections, cooling systems, guideways, cables, sensors and the cutting table. Keep the work area free from dust and slag and follow the manufacturer’s preventive maintenance schedule.
May we help?
- What is the working area of the G12025F?
- The G12025F has a 12,200 × 2550 mm working area for ultra-large-format sheet processing.
- What is the maximum sheet weight?
- The G12025F supports a maximum sheet weight of 15,300 kg per table.
- What laser power options are available?
- The G12025F is available with laser power options ranging from 3 kW to 60 kW.
