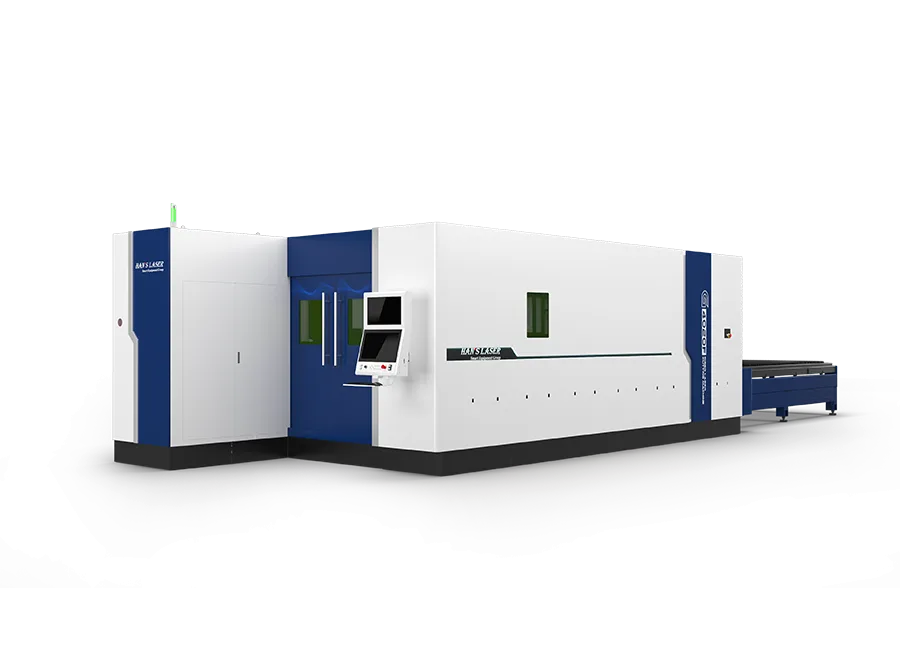

HAN'S G4020F
A high-power fiber laser cutting machine with a 4100 × 2050 mm working area, 200 m/min axis speed and up to 60 kW laser power.
- 4100 × 2050 mm Working area
- 3–60 kW Laser power
- 200 m/min Axis speed
- 3 G Acceleration
Product description
The G4020F is suited for sheet-metal fabrication, automotive and auto components, electrical panels, industrial enclosures, HVAC, kitchen equipment and general engineering applications. Load the sheet within the working area, select the cutting program and process parameters, check the nozzle, focus and gas supply, then monitor the programmed cutting cycle. Unload parts and scrap safely before completing the normal shutdown procedure.
- 4100 × 2050 mm working area
- 200 m/min maximum axis positioning speed
- ±0.03 mm/m positioning accuracy
- 3900 kg/table maximum sheet weight
- Laser power options from 3 kW to 60 kW
Features
4100 × 2050 mm Working Area
The G4020F provides a 4100 × 2050 mm working area for sheet-metal cutting applications.
High-Speed Axis Positioning
The machine reaches a maximum axis positioning speed of 200 m/min with maximum acceleration of 3 G.
High Positioning Accuracy
The G4020F provides positioning accuracy of ±0.03 mm/m and repeatability of ±0.02 mm.
3900 kg Sheet Load Capacity
The machine supports a maximum sheet weight of 3900 kg per table.
Multiple Laser Power Options
The G4020F is available with laser power options from 3 kW to 60 kW.
Specifications
| Specification | Details |
|---|---|
| Working Area | 4100 × 2050 mm |
| Max. Acceleration (X/Y) | 3 G |
| Max. Axis Positioning Speed (X/Y) | 200 m/min |
| Accuracy | ±0.03 mm/m |
| Repeatability | ±0.02 mm |
| Max. Sheet Weight | 3900 kg/table |
| Available Laser Power | 3 / 6 / 12 / 20 / 30 / 40 / 60 kW |
| Dimensions (L × W × H) | 12 × 3.6 × 2.5 m |
Maintenance & care
Inspect and clean the cutting head optics, nozzle and protective window regularly. Check assist-gas connections, cooling systems, guideways, cables, sensors and the cutting table. Keep the work area free from dust and slag and follow the manufacturer’s preventive maintenance schedule.
May we help?
- What is the working area of the G4020F?
- The G4020F has a 4100 × 2050 mm working area for large-format sheet processing.
- What laser power options are available?
- The G4020F is available with laser power options from 3 kW to 60 kW.
- What is the maximum sheet weight?
- The machine supports a maximum sheet weight of 3900 kg per table.
