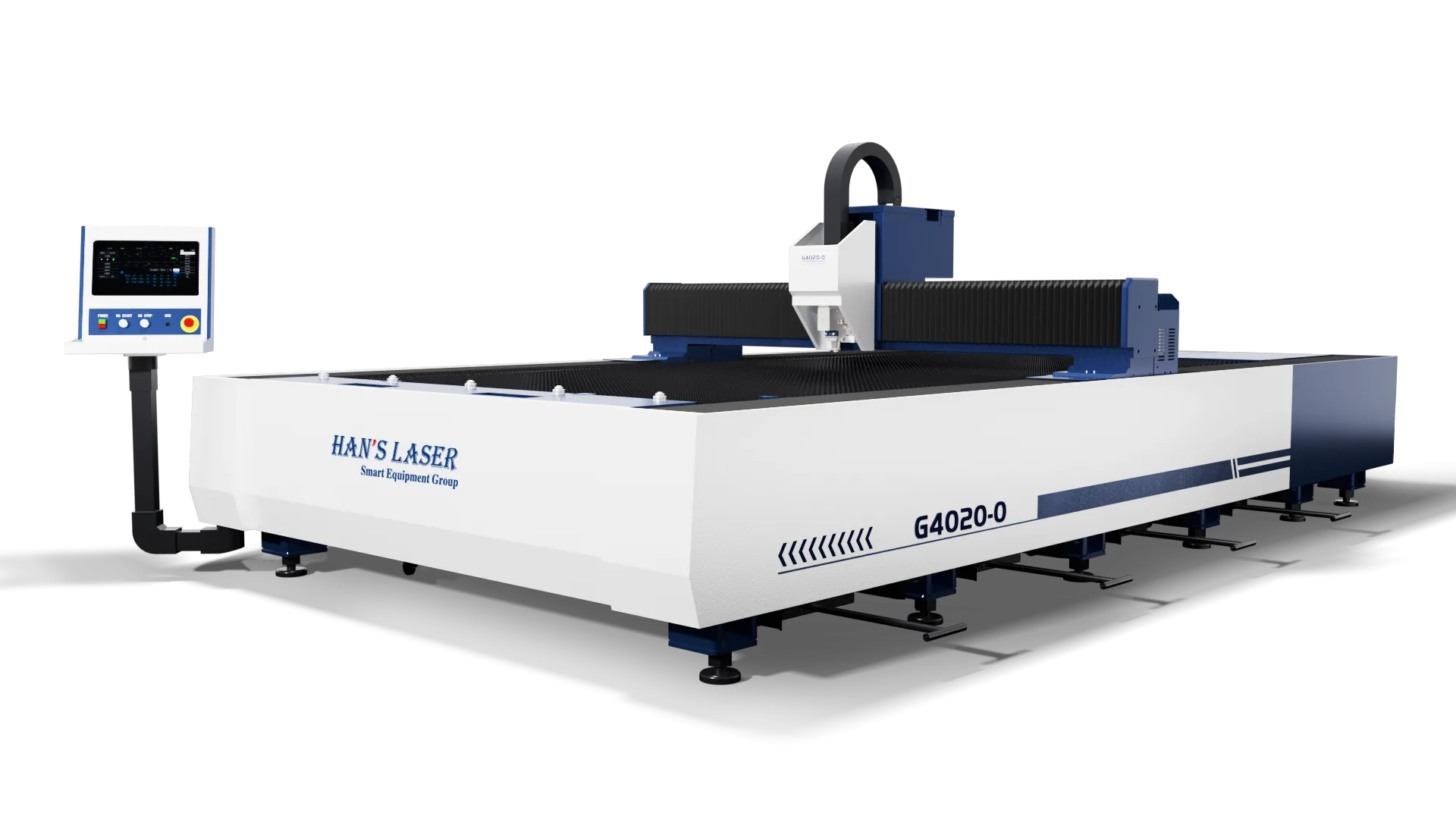

HANS G4020-O
A large-format fiber laser cutting machine with a 4050 × 2030 mm working area, 120 m/min positioning speed, and 1.5 G acceleration.
- 4050 × 2030 mm Working area
- 120 m/min Axis speed
- 1.5 G Acceleration
- ±0.05 mm/m Accuracy
Product description
The HANS Laser G4020-O provides a larger working platform for sheet metal processing, with a 4050 × 2030 mm working area. Its 120 m/min maximum axis positioning speed and 1.5 G acceleration support efficient movement across the expanded cutting area.
The machine delivers ±0.05 mm/m positioning accuracy and ±0.03 mm repeat positioning accuracy for consistent axis positioning. With overall dimensions of 5.7 m × 2.9 m × 2 m, the G4020-O combines a larger processing format with a defined machine footprint.
Features
Expanded Working Area
A 4050 × 2030 mm working area provides additional capacity for larger sheet formats.
Consistent Axis Performance
Precise positioning and repeat positioning specifications support consistent movement during production.
4050 × 2030 mm Working Area
The expanded working area accommodates larger sheet formats across a practical cutting platform.
±0.05 mm/m Positioning Accuracy
The specified accuracy supports precise X/Y axis positioning throughout the working area.
120 m/min Positioning Speed
Maximum axis positioning speed of 120 m/min supports efficient movement during cutting operations.
1.5 G Maximum Acceleration
The X/Y axes provide up to 1.5 G acceleration for responsive movement between cutting positions.
G4020-O specification
| Specification | Details |
|---|---|
| Brand | HANS Laser |
| Series | G-O Series |
| Model | G4020-O |
| Product Type | Laser Cutting Machine |
| Working Area | 4050 mm × 2030 mm |
| Overall Dimensions (L × W × H) | 5.7 m × 2.9 m × 2 m |
| Positioning Accuracy (X/Y) | ±0.05 mm/m |
| Repeat Positioning Accuracy (X/Y) | ±0.03 mm |
| Max. Axis Positioning Speed | 120 m/min |
| Max. Axis Acceleration (X/Y) | 1.5 G |
Maintenance & care
Regularly clean the machine and inspect mechanical, optical, and motion-system components. Follow HANS Laser’s recommended maintenance procedures and service schedule for reliable long-term operation.
May we help?
- What is the working area of the G4020-O?
- The G4020-O has a working area of 4050 mm × 2030 mm.
- What is the maximum axis positioning speed?
- The maximum axis positioning speed is 120 m/min.
- What is the repeat positioning accuracy?
- The machine has a repeat positioning accuracy of ±0.03 mm.
