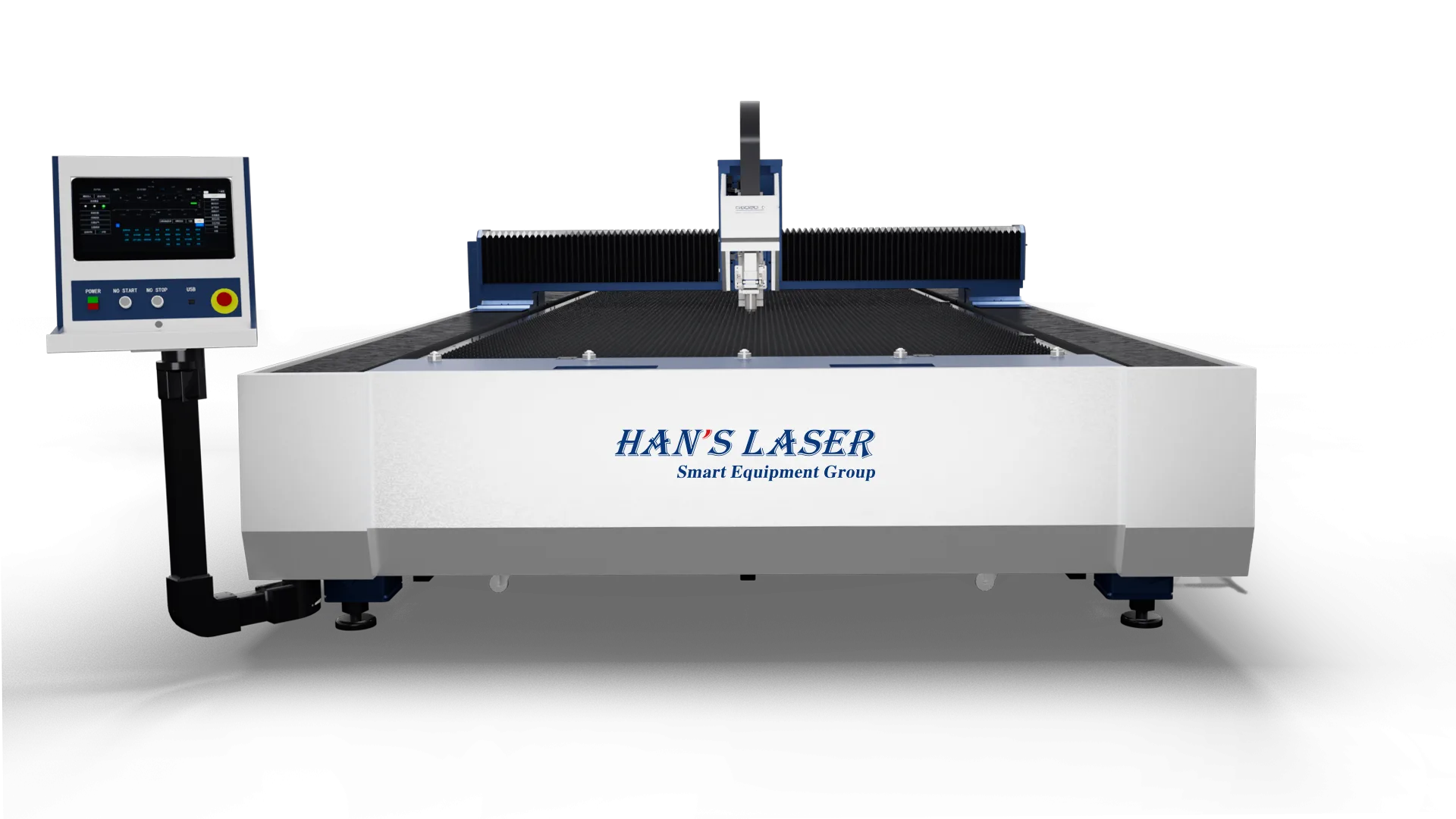

HAN'S G6020-O
A large-format fiber laser cutting machine with a 6100 × 2030 mm working area, 120 m/min positioning speed, and 1.5 G acceleration.
- 6100 × 2030 mm Working area
- 120 m/min Axis speed
- 1.5 G Acceleration
- ±0.05 mm/m Accuracy
Product description
The G6020-O is suited for sheet-metal fabrication, automotive and auto components, electrical panels, industrial enclosures, HVAC, kitchen equipment and general engineering applications. Load the sheet within the working area, select the cutting program and process parameters, check the nozzle, focus and gas supply, then run and monitor the programmed cutting cycle. Unload parts and scrap safely before completing the normal shutdown procedure.
- 6100 × 2030 mm working area for sheet processing
- 120 m/min maximum axis positioning speed
- Model-specific positioning accuracy and repeatability
- CNC programming for repeatable part production
- Programmed profile cutting through fiber-laser processing
- Multiple material and process programs can be managed through the machine
Features
G-O Series Fiber Laser Configuration
G6020-O is part of the G-O Series for CNC- controlled fiber laser sheet processing.
6100 × 2030 mm Processing Area
Provides a defined working area for sheet processing.
120 m/min Axis Positioning Speed
Supports high-speed axis movement during programmed operations.
Model-Specific Accuracy and Repeatability
Positioning accuracy and repeatability are based on the model configuration.
CNC-Controlled Processing
Supports programmed cutting operations for sheet components.
G6020-O specification
| Specification | Details |
|---|---|
| Brand | HAN'S Laser |
| Series | G-O Series |
| Model | G6020-O |
| Product Type | Laser Cutting Machine |
| Working Area | 6100 mm × 2030 mm |
| Overall Dimensions (L × W × H) | 7.9 m × 2.9 m × 2 m |
| Positioning Accuracy (X/Y) | ±0.05 mm/m |
| Repeat Positioning Accuracy (X/Y) | ±0.03 mm |
| Max. Axis Positioning Speed | 120 m/min |
| Max. Axis Acceleration (X/Y) | 1.5 G |
Maintenance & care
Inspect and clean the cutting head optics, nozzle and protective window regularly. Check assist-gas connections, cooling systems, guideways, cables, sensors and the cutting table. Keep the work area free from dust and slag and follow the manufacturer’s preventive maintenance schedule. Technical Parameter
May we help?
- What is the working area of the G6020-O?
- The machine has a working area of 6100 mm × 2030 mm.
- What is the maximum axis positioning speed?
- The maximum axis positioning speed is 120 m/min.
- What are the accuracy specifications?
- The G6020-O has ±0.05 mm/m positioning accuracy and ±0.03 mm repeat positioning accuracy.
