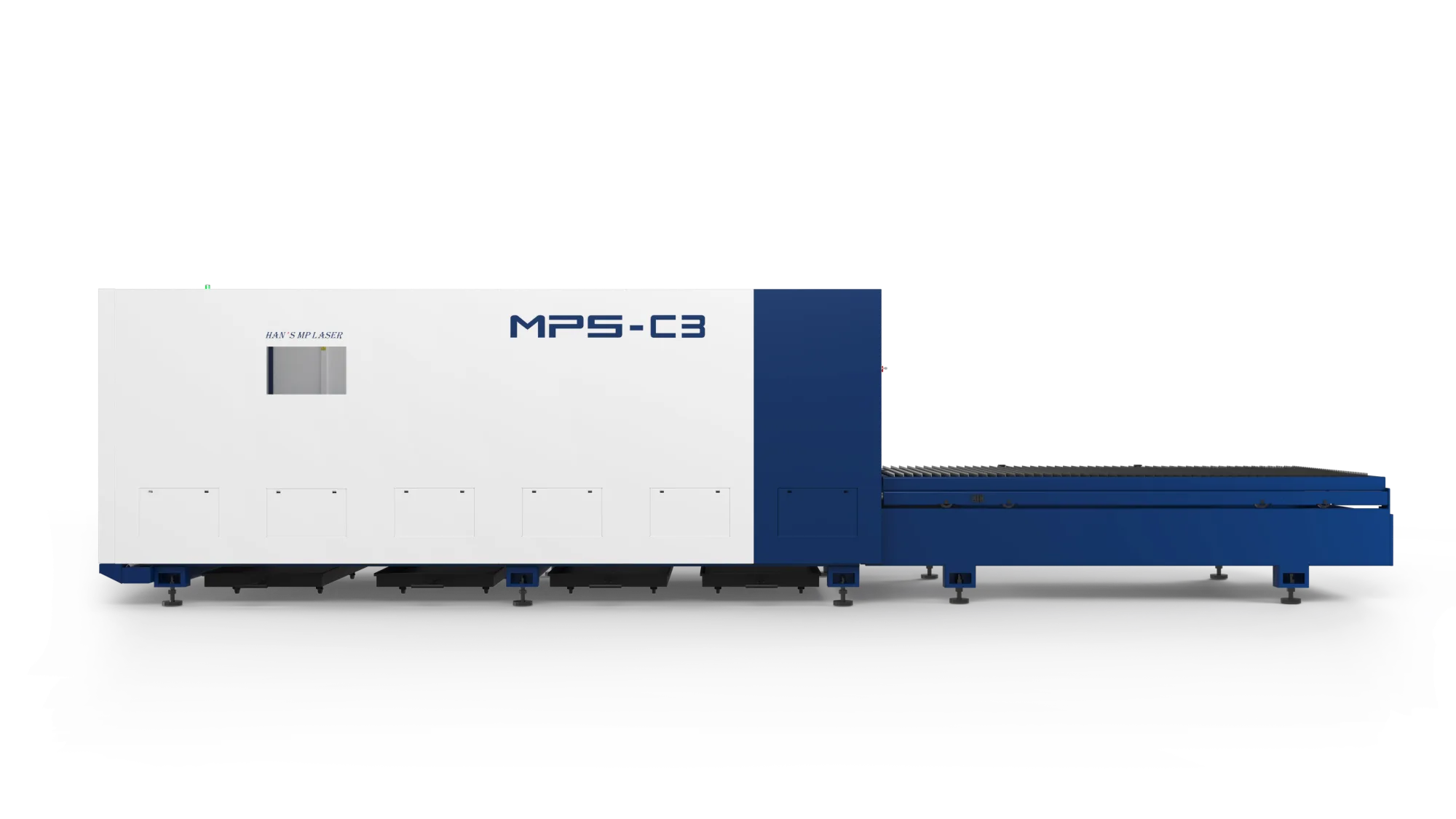

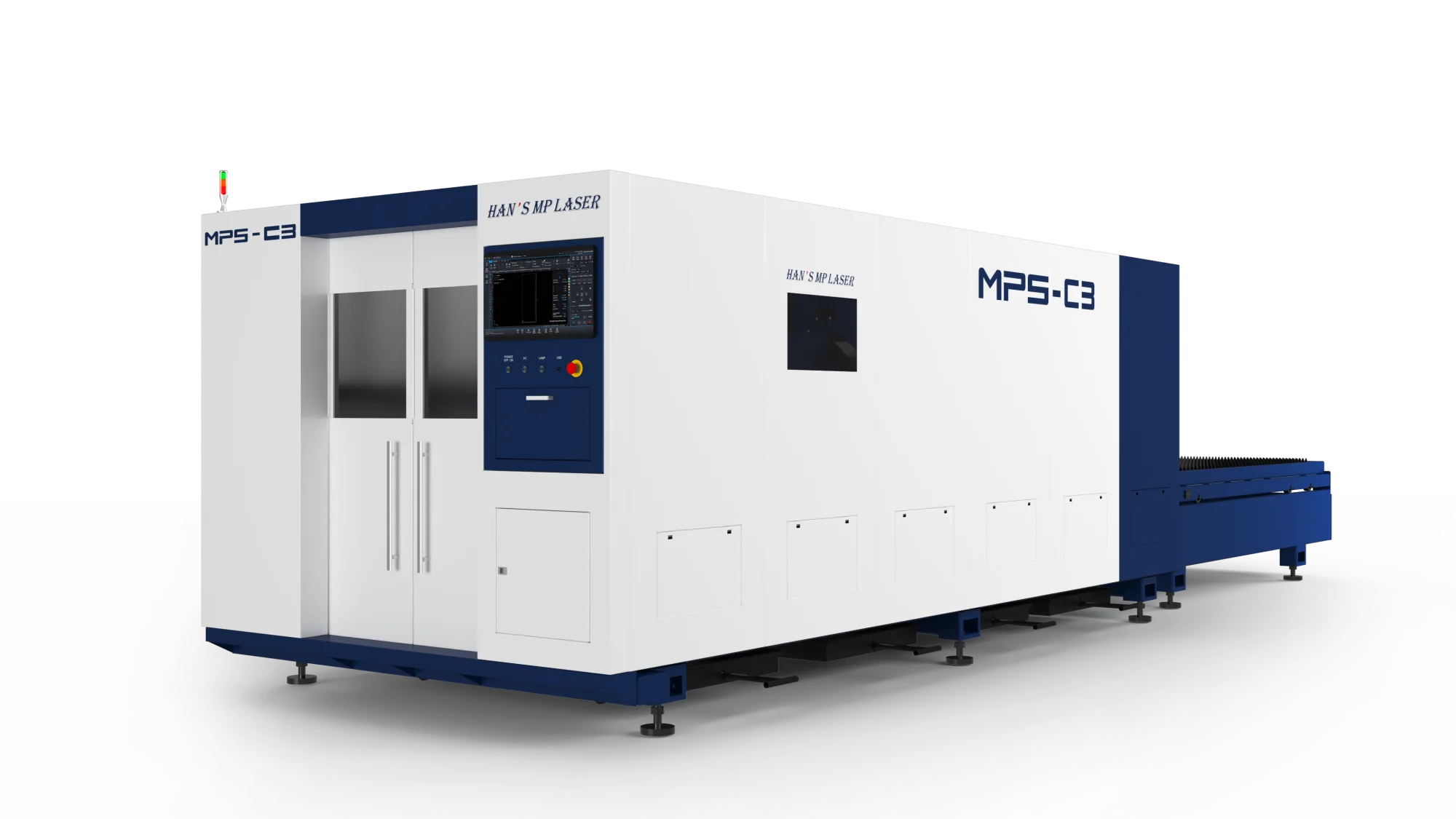

HAN'S MPS - C3
A compact fiber laser cutting machine with a 3000 × 1500 mm processing area, precise motion control and efficient sheet handling.
- 3000 × 1500 mm Processing area
- 120 m/min Axis speed
- ±0.05 mm/m Accuracy
- 900 kg Workbench load
Product description
The MPS C3 is suited for sheet-metal fabrication, automotive and auto components, electrical panels, industrial enclosures, HVAC, kitchen equipment and general engineering applications. For operation, power up the CNC, laser, cooling and assist-gas systems, load the sheet within the working area, select the cutting program and process parameters, check the nozzle, focus and gas supply, then run and monitor the programmed cutting cycle. Unload parts and scrap safely before completing the normal shutdown procedure.
- 3000 × 1500 mm working area for specified sheet sizes
- 120 m/min maximum axis positioning speed
- ±0.05 mm/m positioning accuracy
- 900 kg maximum workbench load
- CNC-controlled operation for repeatable programmed cutting
Features
3000 × 1500 mm Processing Area
The MPS C3 provides a 3000 × 1500 mm working area for sheet-metal cutting applications.
High Axis Positioning Speed
The machine reaches a maximum axis positioning speed of 120 m/min for fast machine movement.
High Positioning Accuracy
With positioning accuracy of ±0.05 mm/m and repeatability of ±0.03 mm, the MPS C3 supports consistent positioning.
900 kg Workbench Load
The machine supports a maximum workbench load of 900 kg for sheet handling within its specified working area.
Fiber Laser Cutting Configuration
The MPS C3 is configured for programmed fiber laser cutting with CNC-controlled operation.
Specifications
| Specification | Details |
|---|---|
| Processing Area | 3000 × 1500 mm |
| X/Y Axis Positioning Accuracy | ±0.05 mm/m |
| X/Y Axis Repeat Positioning Accuracy | ±0.03 mm |
| Max. Axis Positioning Speed | 120 m/min |
| Max. Acceleration | 1.5 G |
| Max. Workbench Load | 900 kg |
| Dimensions (L × W × H) | 8650 × 2250 × 2200 mm |
Maintenance & care
Inspect and clean the cutting head optics, nozzle and protective window regularly. Check assist-gas connections, cooling systems, guideways, cables, sensors and the cutting table. Keep the work area free from dust and slag and follow the manufacturer’s preventive maintenance schedule.
May we help?
- What is the processing area of the MPS C3?
- The MPS C3 has a 3000 × 1500 mm processing area for sheet metal cutting applications.
- How accurate is the MPS C3?
- The machine provides X/Y positioning accuracy of ±0.05 mm/m and repeat positioning accuracy of ±0.03 mm.
- What is the maximum workbench load?
- The MPS C3 supports a maximum workbench load of 900 kg.
