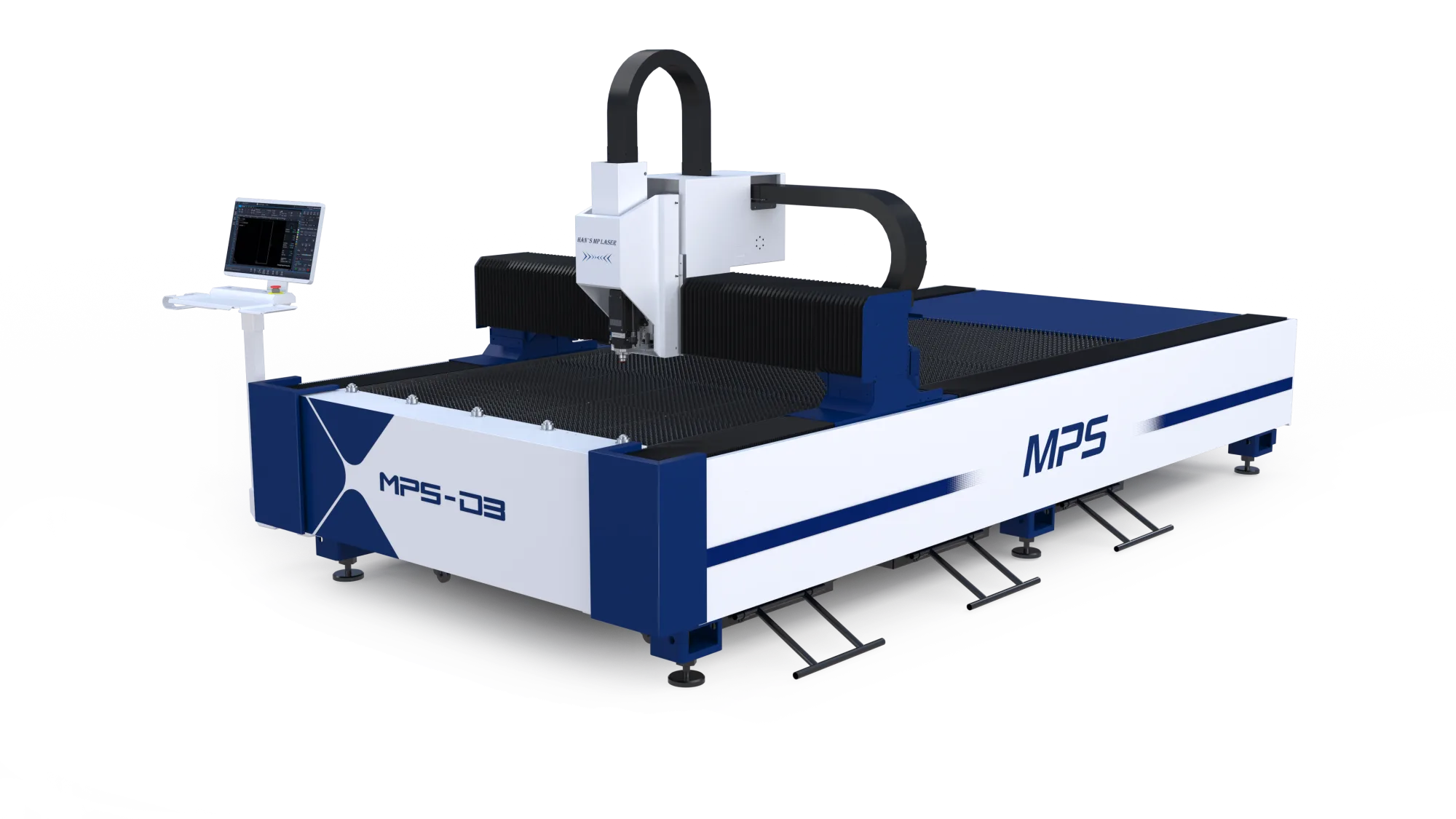

HAN'S MPS - D3
A fiber laser cutting machine with a 3000 × 1500 mm processing area, high-speed axis movement and precise repeat positioning.
- 3000 × 1500 mm Processing area
- 120 m/min Axis speed
- ±0.05 mm/m Accuracy
- 700 kg Workbench load
Product description
The MPS D3 is suited for sheet-metal fabrication, automotive and auto components, electrical panels, industrial enclosures, HVAC, kitchen equipment and general engineering applications. Operation involves loading the sheet within the working area, selecting the cutting program and process parameters, checking the nozzle, focus and gas supply and monitoring the programmed cutting cycle. Parts and scrap should be unloaded safely before normal shutdown.
- 3000 × 1500 mm working area for specified sheet sizes
- 120 m/min maximum axis positioning speed
- ±0.05 mm/m positioning accuracy
- 700 kg maximum workbench load
- CNC-controlled operation for repeatable programmed cutting
Features
3000 × 1500 mm Processing Area
The MPS D3 provides a 3000 × 1500 mm working area for sheet-metal cutting applications.
High Axis Positioning Speed
The machine reaches a maximum axis positioning speed of 120 m/min for efficient machine movement.
High Positioning Accuracy
With positioning accuracy of ±0.05 mm/m and repeatability of ±0.03 mm, the MPS D3 supports consistent positioning.
700 kg Workbench Load
The machine supports a maximum workbench load of 700 kg within its specified working area.
Fiber Laser Cutting Configuration
The MPS D3 is configured for programmed fiber laser cutting with CNC-controlled operation.
Specifications
| Specification | Details |
|---|---|
| Processing Area | 3000 × 1500 mm |
| X/Y Axis Positioning Accuracy | ±0.05 mm/m |
| X/Y Axis Repeat Positioning Accuracy | ±0.03 mm |
| Max. Axis Positioning Speed | 120 m/min |
| Max. Acceleration | 1.2 G |
| Max. Workbench Load | 700 kg |
| Dimensions (L × W × H) | 4900 × 2250 × 2000 mm |
Maintenance & care
Inspect and clean the cutting head optics, nozzle and protective window regularly. Check assist-gas connections, cooling systems, guideways, cables, sensors and the cutting table. Keep the work area free from dust and slag and follow the manufacturer’s preventive maintenance schedule.
May we help?
- What is the processing area of the MPS D3?
- The MPS D3 has a 3000 × 1500 mm processing area.
- What is the positioning accuracy of the MPS D3?
- Its X/Y positioning accuracy is ±0.05 mm/m, with repeat positioning accuracy of ±0.03 mm.
- What is the maximum sheet load?
- The MPS D3 has a maximum workbench load of 700 kg.
