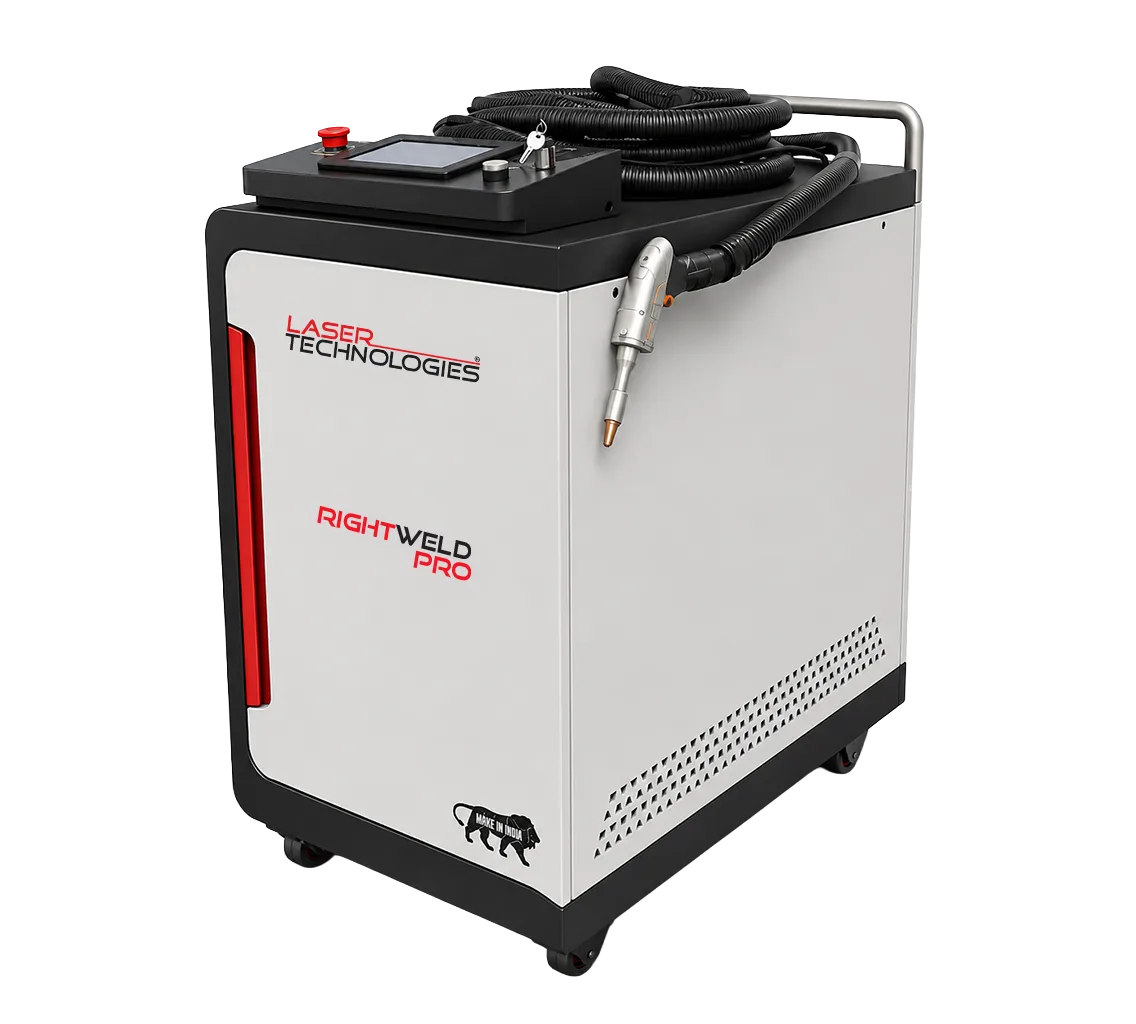

RightWeld Pro-1500
An intelligent handheld laser welding system with 1,500 W power, 1064–1080 nm wavelength, adjustable 2–100% power and single-axis wobble welding.
- 1,500 W Laser power
- 2–100% Power adjustment
- 1–20 mm/s Welding speed
- < ±1% Output instability
Product description
RightWeld Pro-1500 is specified for welding stainless steel, carbon steel, galvanized steel, and aluminum assemblies, including sheet-metal enclosures, frames, kitchen and furniture components, and general engineering assemblies. Before operation, inspect the welding head, optics, wire feeder, and relevant connections. Prepare and fixture the workpieces, then set the laser power and welding speed according to the selected process. Set the required wobble parameters and check the nozzle position before performing a test weld. Proceed with welding while monitoring the weld pool and machine status. After completing the weld, inspect the joint, clean the workpiece and welding area, and stop the system according to the operating procedure.
- 1500 W laser power
- 1064–1080 nm laser wavelength
- 2–100% power adjustment range
- Output power instability below ±1%
- Welding speed of 1–20 mm/s
- Single-axis wobble welding style
- Single wire feeder
- 220 V single-phase power supply
Features
Handheld Laser Welding Configuration
RightWeld Pro-1500 is an intelligent handheld laser welding system.
1500 W Laser Power
The machine is equipped with a 1500 W laser.
1064–1080 nm Laser Wavelength
The system operates within a laser wavelength range of 1064–1080 nm.
2–100% Power Adjustment
Laser output power can be adjusted from 2% to 100%.
1–20 mm/s Welding Speed
The specified welding speed range is 1–20 mm/s.
Single-Axis Wobble Welding
The welding style is specified as wobble with single-axis movement.
Single Wire Feeder
The system is equipped with a single wire feeder.
Specifications
| Specification | Details |
|---|---|
| Laser Power | 1500 W |
| Laser Wavelength | 1064–1080 nm |
| Power Adjustment Range | 2–100% |
| Output Power Instability < | ±1% |
| Welding Speed | 1–20 mm/s |
| Power Supply | 220 V / Single Phase / 50 or 60 Hz |
| Machine Dimensions (L × W × H) | 100 × 60 × 105 cm |
Maintenance & care
Inspect the welding head, nozzle, protective glass, and optics regularly. Check the cooling arrangement as applicable and verify shielding or assist gas connections. Inspect the optical fiber, torch cable, and electrical connections for damage or wear. Clean welding spatter from the nozzle and work area. Inspect the single wire feeder and welding consumables as required. Follow the manufacturer's recommended maintenance schedule for periodic servicing.
May we help?
- What is the laser power of the RightWeld Pro-1500?
- The RightWeld Pro-1500 provides 1,500 W laser power.
- Can the laser power be adjusted?
- Yes. The power adjustment range is 2–100%.
- What type of wire feeder does it use?
- The Pro-1500 is equipped with a single wire feeder.
