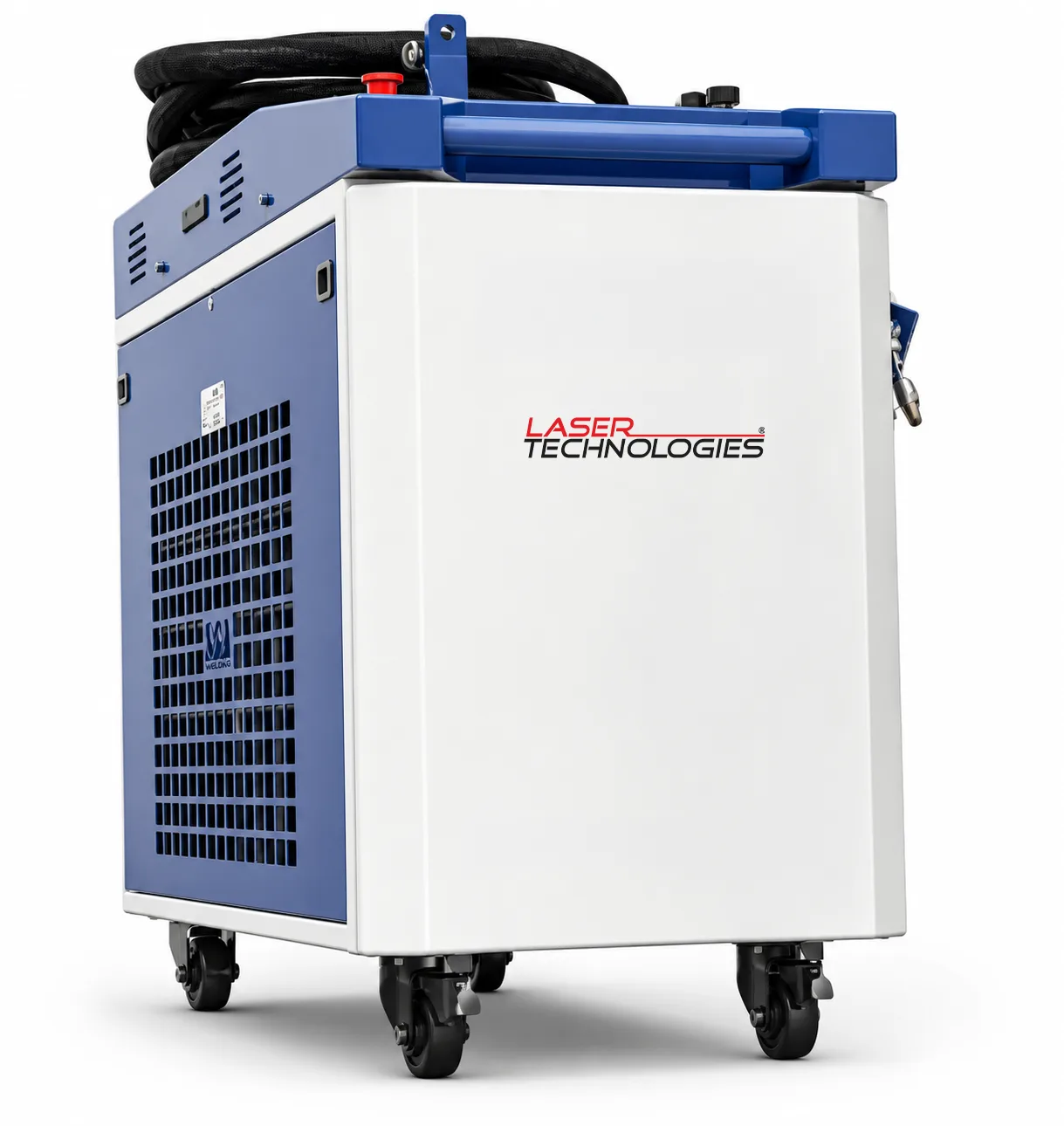

RightWeld Pro-3000
An intelligent handheld laser welding system with 3,000 W power, 1064–1080 nm wavelength, adjustable 2–100% power and single-axis wobble welding.
- 3,000 W Laser power
- 2–100% Power adjustment
- 1–20 mm/s Welding speed
- 380 V Three-phase supply
Product description
RightWeld Pro-3000 is specified for welding stainless steel, carbon steel, galvanized steel, and aluminum assemblies, including sheet-metal enclosures, frames, kitchen and furniture components, and general engineering assemblies. Before operation, inspect the welding head, optics, wire feeder, and relevant connections. Prepare and fixture the workpieces, then select the required laser power and welding speed. Set the wobble parameters and wire-feeding configuration where applicable, check the nozzle position, and perform a test weld. Proceed with welding while monitoring the weld pool and machine status. After welding, inspect the finished joint, clean the workpiece and welding area, and stop the system according to the operating procedure.
- 3000 W laser power
- 1064–1080 nm laser wavelength
- 2–100% power adjustment range
- Output power instability below ±1%
- Welding speed of 1–20 mm/s
- Single-axis wobble welding
- Single and double wire feeding
- 380 V three-phase power supply
Features
Handheld Laser Welding Configuration
RightWeld Pro-3000 is an intelligent handheld laser welding system.
3000 W Laser Power
The machine is equipped with a 3000 W laser.
1064–1080 nm Laser Wavelength
The system operates within a laser wavelength range of 1064–1080 nm.
2–100% Power Adjustment
Laser output power can be adjusted from 2% to 100%.
1–20 mm/s Welding Speed
The specified welding speed range is 1–20 mm/s.
Single-Axis Wobble Welding
The welding style is specified as wobble with single-axis movement.
Single and Double Wire Feeding
The system is configured with single and double wire feeding options.
Specifications
| Specification | Details |
|---|---|
| Laser Power | 3000 W |
| Laser Wavelength | 1064–1080 nm |
| Power Adjustment Range | 2–100% |
| Output Power Instability < | ±1% |
| Welding Speed | 1–20 mm/s |
| Power Supply | 380 V / 3 Phase / 50 or 60 Hz |
| Machine Dimensions (L × W × H) | 110 × 60 × 105 cm |
Maintenance & care
Inspect the welding head, nozzle, protective glass, and optics regularly. Check the cooling arrangement as applicable and verify shielding or assist gas connections. Inspect the fiber, torch cable, and electrical connections for damage or wear. Clean welding spatter from the nozzle and work area. Inspect the wire feeder and welding consumables as required. Follow the manufacturer's recommended maintenance schedule for periodic servicing.
May we help?
- What is the laser power of the RightWeld Pro-3000?
- The RightWeld Pro-3000 provides 3,000 W laser power.
- What is the power adjustment range?
- The laser power can be adjusted from 2–100%.
- What type of wire feeding does it support?
- The Pro-3000 supports both single and double wire feeding.
