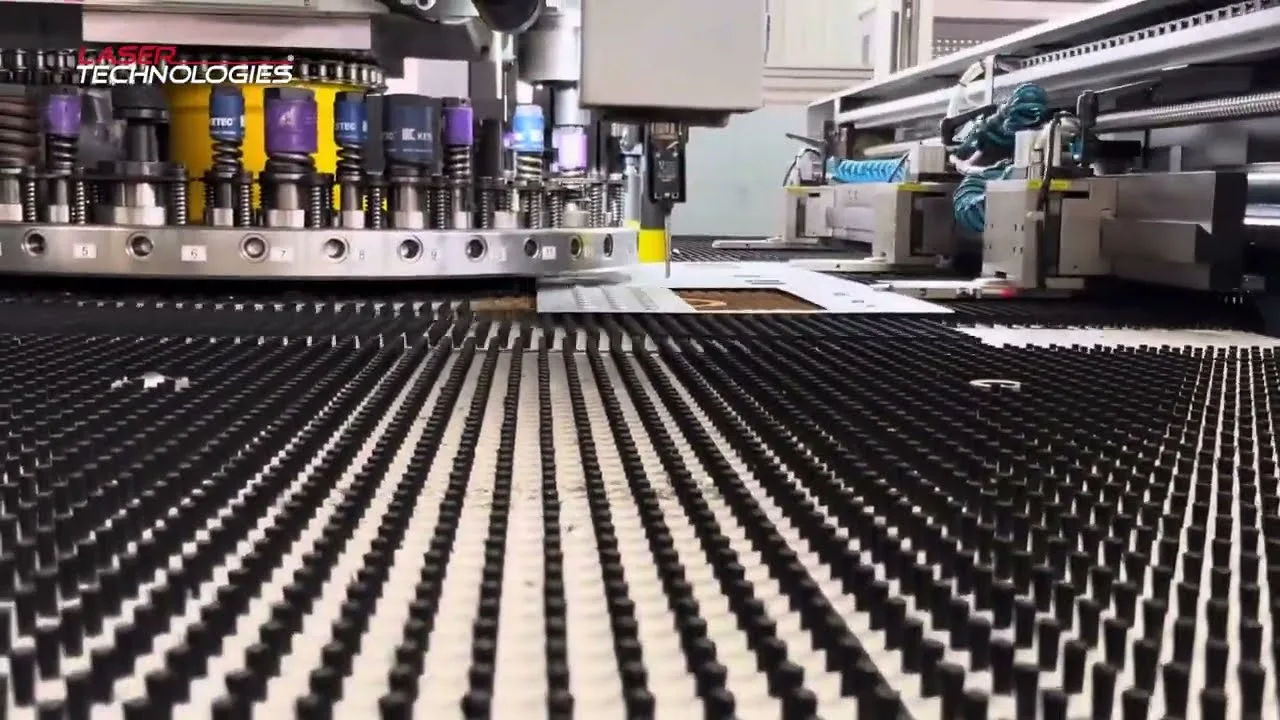

TL30 Combi Machine
A high-speed punch and laser combi machine combining 300 kN punching with 3 kW or 6 kW laser cutting.
- 300 kN Punching capacity
- 3 / 6 kW Laser power
- 16 / 24 / 32 Tool stations
- 240 hpm Max punch speed
Product description
The TL30 combines mechanical punching and fiber laser cutting in one production platform, allowing manufacturers to perform two sheet metal processes within a single machine. It delivers 300 kN punching capacity, up to 240 hpm and laser power options of 3000 W or 6000 W. With 16, 24 or 32 station configurations, ±0.1 mm punching and laser accuracy, and sheet formats up to 1500 × 2500 mm for punching with one reposition, the TL30 is designed for efficient, flexible multi-process production.
Features
Integrated Punching & Laser Cutting
Punching and laser cutting are combined on one machine to streamline multi-process sheet metal production.
300 kN Punching Capacity
A 300 kN punching force supports reliable processing across a wide range of sheet metal applications.
3 kW & 6 kW Laser Options
Two laser power configurations provide flexibility for different cutting requirements and production applications.
16 / 24 / 32 Station Turret
Multiple station configurations allow the tooling setup to be matched to the complexity and variety of production requirements.
High-Speed Production
Punch speeds of up to 240 hpm and feeding speeds of up to 80 m/min support efficient production cycles.
Four-Axis CNC Control
X, Y, T and Z axis control coordinates sheet movement, turret operation and laser processing for consistent results.
Dual Clamping & Repositioning
Two clamps and two reposition cylinders provide secure sheet handling and controlled movement during large-format processing.
Precise Multi-Process Operation
±0.1 mm punching and laser accuracy supports consistent feature positioning across combined cutting and punching operations.
TL30 specification
| Specification | Details |
|---|---|
| Brand | Dardontech |
| Product Series | TL Series |
| Model | TL30 |
| Product Type | Punch & Laser Combi Machine |
| Punching Capacity | 300 kN |
| Max. Punch Speed | 240 hpm |
| Max. Sheet Thickness | 4 mm |
| Max. Tool Diameter | Φ88.9 mm |
| Punching Accuracy | ±0.1 mm |
| Station Configurations | 16 / 24 / 32 |
| Laser Power | 3000 W / 6000 W |
| Laser Cutting Accuracy | ±0.1 mm |
| Laser Processing Range | 2000 × 1500 mm / 1250 mm |
| Feeding Speed | ≤80 m/min |
| Turret Rotating Speed | 30 rpm |
| CNC Axes | 4 axes: X, Y, T, Z |
| Work Clamping | 2 clamps + 2 reposition cylinders |
| Main Motor Power | 5.5 kW |
| Air Pressure | 0.65 MPa |
| Dimensions | 5300 × 5200 × 2300 mm / 4800 × 5200 × 2300 mm |
Maintenance & care
Regular inspection of the punching tools, turret, laser cutting system, clamps and repositioning components helps maintain consistent machine performance. Maintenance procedures should follow the manufacturer's recommended operating and service requirements.
