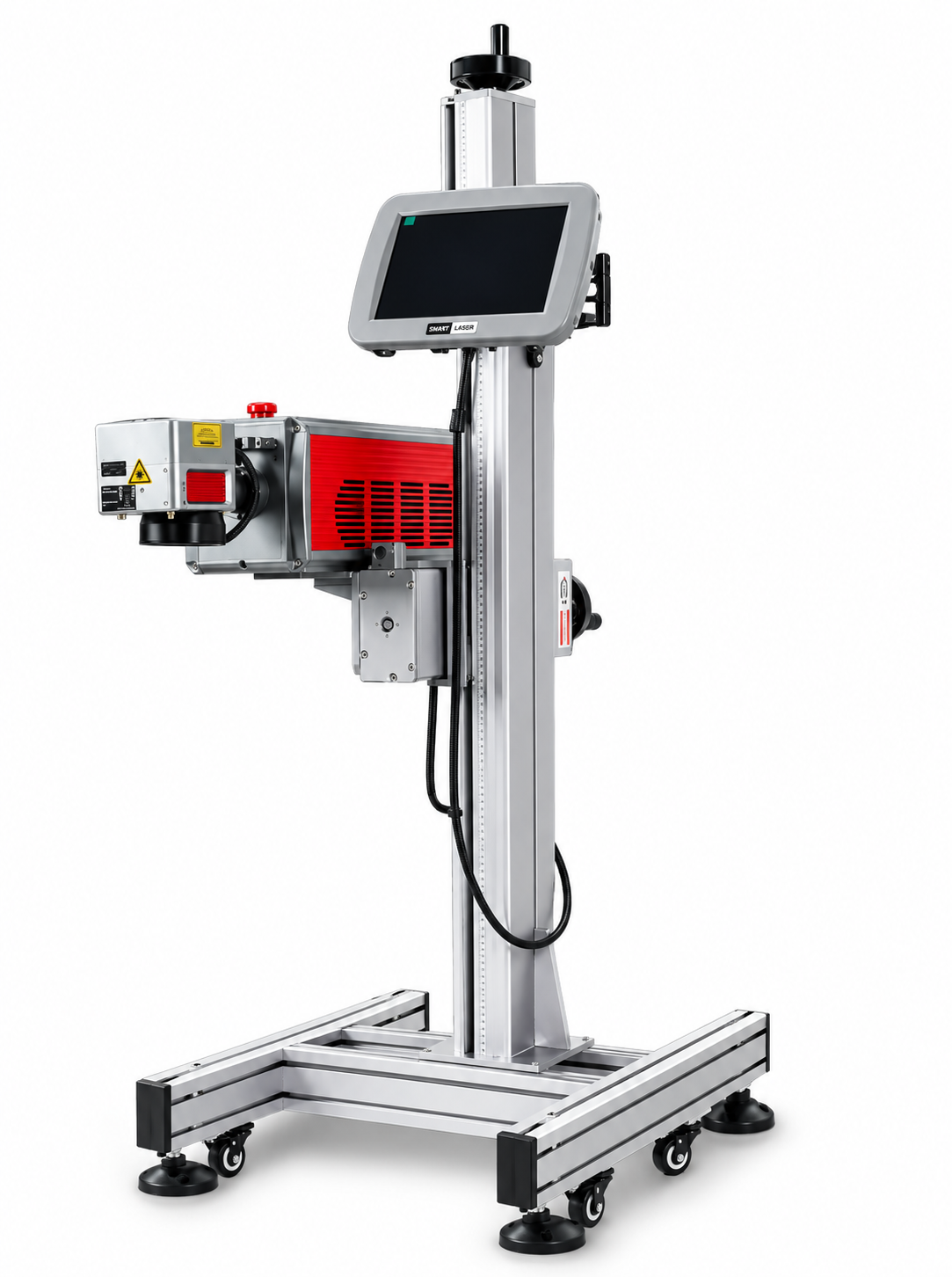

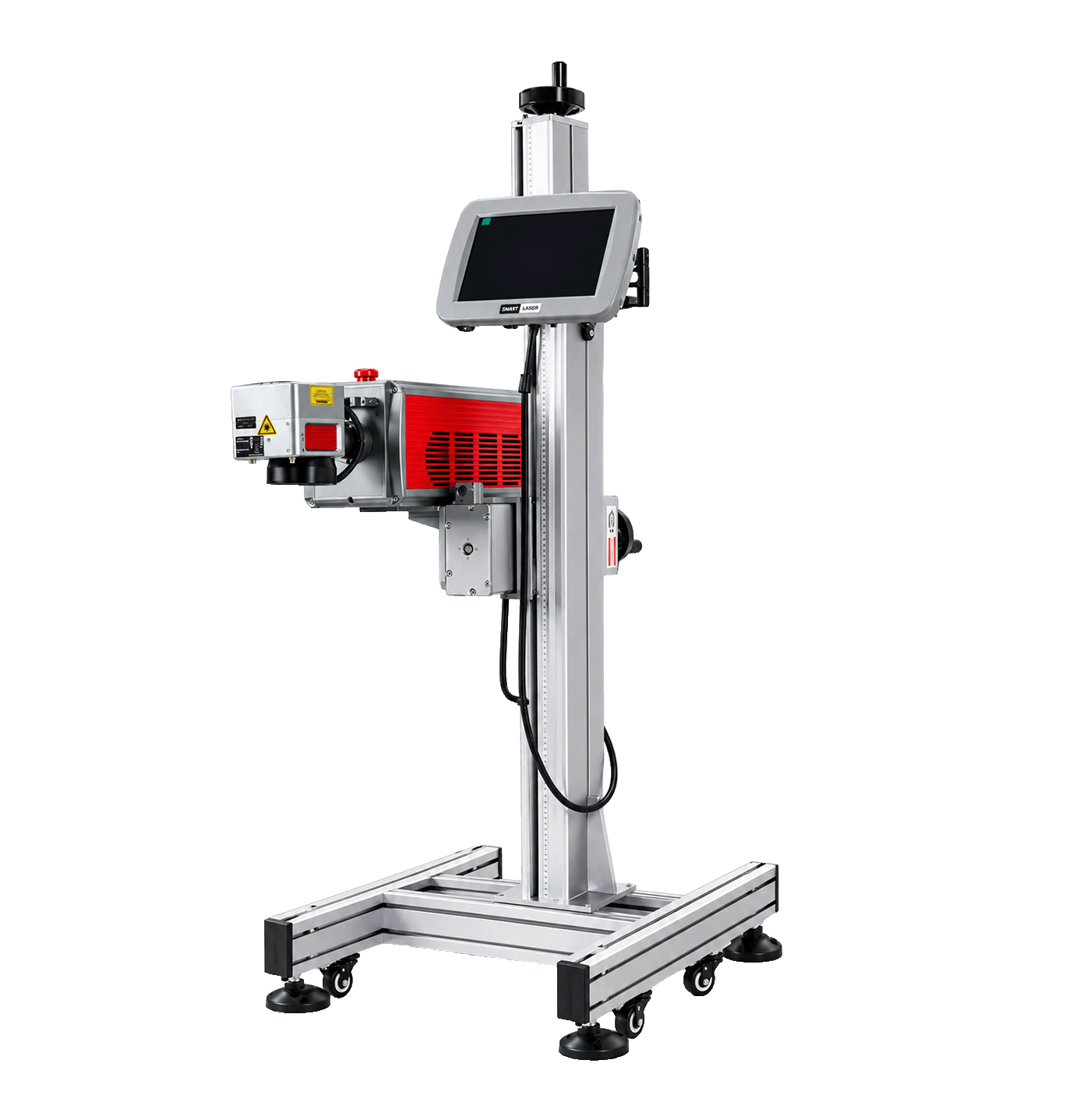

CO₂ Laser on Fly Marking Machine
High-speed CO₂ laser flying marking machine for precise, reliable, and efficient continuous coding on packaging, plastics, and other non-metallic materials.
- ≤35W, ≤33W, ≤30W Output Power
- ≤10,000 mm/s Engraving Speed
- ±0.002 Repetition Accuracy
- Built-in Air Cooling Cooling Method
Product description
Application & Operating Information
The RightMark CO₂ on Fly Series is suitable for online marking on paper, film, plastic, PVC, wood, leather, coated metal and other non-metallic materials. Applications include dates, batch numbers, serial numbers, barcodes, 2D codes, logos and variable data.
For operation, set the marking parameters, connect the production line, load the required content, and run the system for automatic continuous marking.
Features
High-Speed Continuous Marking
The RightMark CO₂ on Fly Series is designed for high-speed, continuous marking on moving production lines, helping improve productivity and throughput.
CO₂ Laser Marking Technology
The series uses CO₂ laser technology and is suitable for marking a wide range of non-metallic materials and packaging surfaces.
High-Speed Coding Performance
The system supports high-speed production-line marking, including up to 100 3 mm-high 2D codes per minute and 100 production-date digital codes per minute, depending on marking content and production conditions.
Flexible Coding Functions
Supports automatic coding, serial numbers, batch numbers, dates, barcodes, 2D codes, automatic number skipping and other variable marking requirements.
High-Speed Engraving
With engraving speeds of up to 10,000 mm/s, the machine is designed for continuous industrial production environments.
Flying Coding System
The system enables marking directly on products while they are moving along the production line, supporting online coding applications.
Specifications
| Specification | Details |
|---|---|
| Beam Quality M² | ≤2 |
| Pulse Repetition Frequency | 0–25 kHz |
| Laser Wavelength | 10.6 μm |
| Design Life | Approx. 20,000 operating hours |
| Marking Range | 50–300 mm (Range optional) |
| Engraving Depth | ≤1 mm* |
| Repetition Accuracy | ±0.002 |
| Minimum Marker Line Width | 0.1 mm |
| Minimum Character Height | 0.15 mm |
| System Power Supply | 800W / 220V / 50Hz (Connectable to 110V) |
| Operating System | Flying Coding System |
Maintenance & care
Regularly inspect and clean the laser optical components and marking area. Keep the optical surfaces and ventilation areas free from dust and contamination. Check the built-in air-cooling system, electrical connections, cables, sensors and production-line interface regularly. Ensure the machine operates within the specified temperature and humidity range and maintain suitable air conditioning when required. Follow the manufacturer's preventive maintenance schedule for reliable operation.
