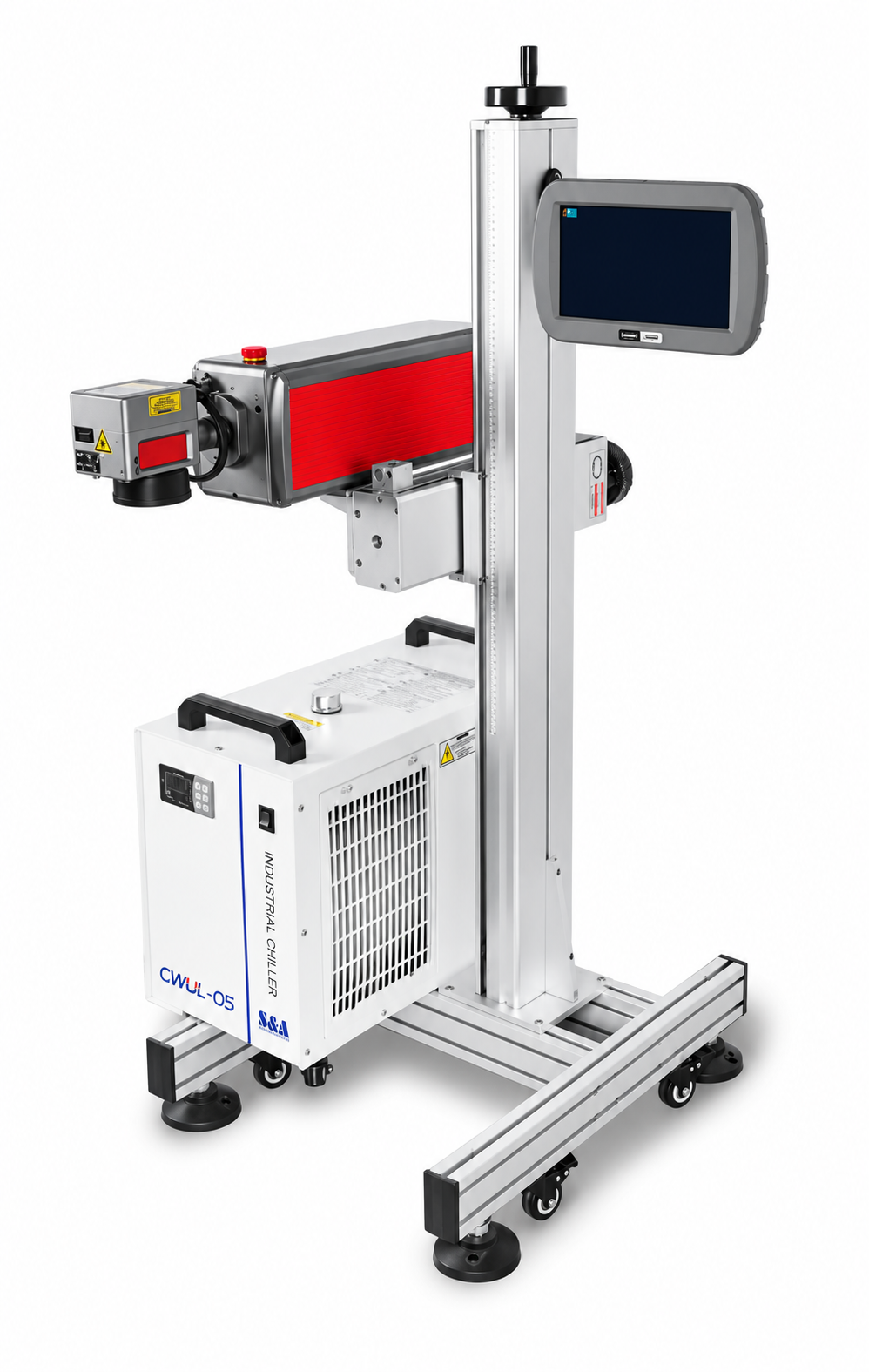

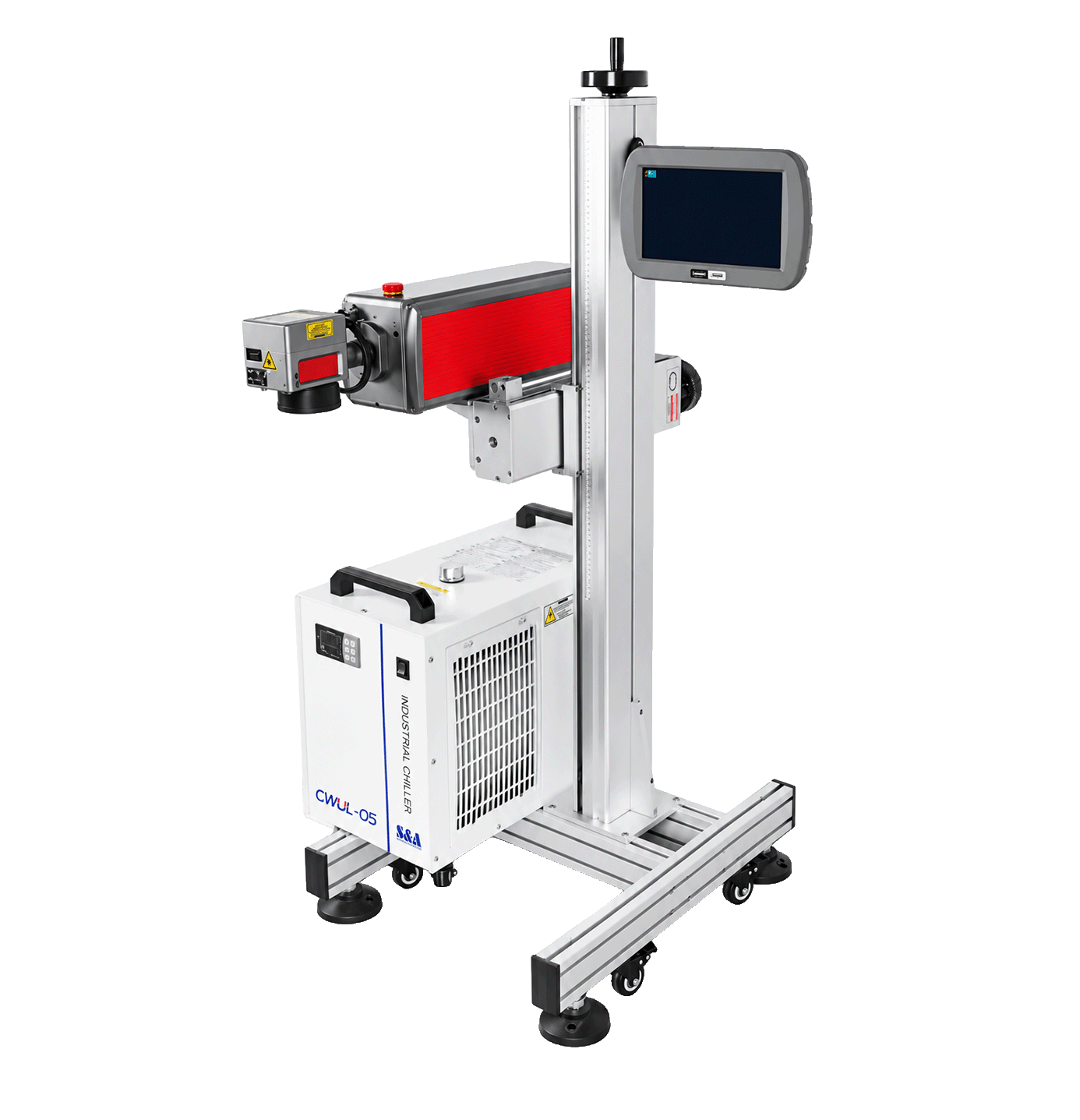

UV Laser on Fly Marking Machine
High-speed UV laser flying marking machine for precise, reliable, and efficient continuous coding on packaging, plastics, and production-line products.
- 355 nm Laser Wavelength
- Water Cooling Cooling Method
- Flying Coding System Operating System
- ≤10,000 mm/s Engraving Speed
Product description
The RightMark UV on Fly Series is designed for continuous production-line marking and coding applications. It is suitable for PPR, PVC, PE pipes, plastic films, plastic bottle caps and similar materials, as well as packaging and product identification applications.
Advantages
- 355 nm UV laser for high-quality marking applications
- High-speed flying marking for continuous production lines
- Up to 10,000 mm/s engraving speed
- Supports barcodes, 2D codes, serial numbers, batch numbers and dates
- 50–300 mm marking range with optional configurations
- Suitable for PPR, PVC, PE and plastic packaging materials
- Water-cooled laser system
- Minimum character height of 0.15 mm
- Designed for high-throughput industrial coding applications
- Available in 5W, 10W and 10W configurations across the 507-F05, 507-F10 and 507-F15 models
Features
High-Speed Continuous Marking
The RightMark UV on Fly Series is designed for continuous, high-speed marking on moving production lines, supporting efficient and consistent coding operations.
UV Laser Marking Technology
Equipped with a 355 nm UV laser wavelength, the system is suitable for marking a wide range of sensitive and packaging materials with high-quality results.
High-Speed Coding Performance
The system supports high-speed production-line marking, including up to 100 3 mm-high 2D codes per minute and 100 production-date digital codes per minute, depending on marking content and production conditions.
Flexible Coding Functions
Supports automatic coding, serial numbers, batch numbers, production dates, barcodes, 2D codes, automatic number skipping and other variable marking requirements.
High-Speed Engraving
With engraving speeds of up to 10,000 mm/s, the machine is designed for continuous production environments.
Flying Coding System
The system operates as a flying coding solution, enabling marking directly on products while they are moving along the production line.
Wide Marking Range
The standard marking range is 50–300 mm, with optional range configurations available.
Specifications
| Specification | Details |
|---|---|
| Laser Model | 5M, 10M, 15M |
| Output Power | 5W, 10W, 10W |
| Beam Quality M² | ≤2 |
| Pulse Repetition Frequency | 2–200 kHz |
| Design Life | Approx. 20,000 operating hours (non-life time) |
| Marking Range | 50–300 mm (Range optional) |
| Output Power Stability | <5% |
| Engraving Depth | ≤1 mm* |
| Repetition Accuracy | ±0.002 |
| Minimum Marker Line Width | 0.1 mm |
| Minimum Character Height | 0.15 mm |
| System Power Supply | 1200W / 220V / 50Hz (Connectable to 110V) |
Maintenance & care
Regularly inspect and clean the laser optical components and marking area. Keep the protective optical surfaces free from dust and contamination. Check the water-cooling system, electrical connections, cables, sensors and production-line interface regularly. Ensure the machine operates within the specified temperature and humidity range and maintain proper ventilation and air-conditioning where required. Follow the manufacturer's preventive maintenance schedule for reliable operation.
