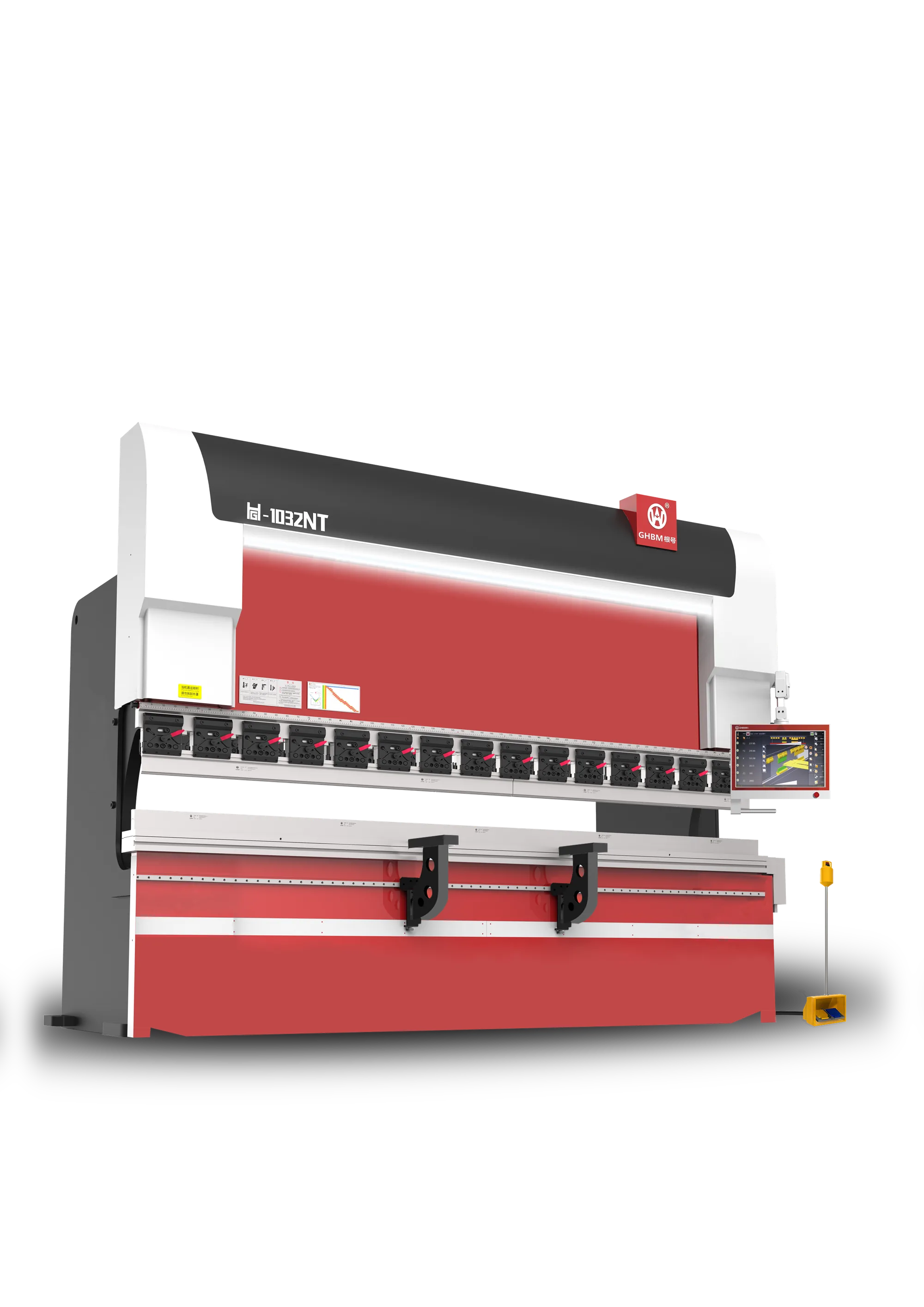

GHBM GH 1032NT
GHBM-Bend — 100 Ton working pressure, 3200 mm max. bending length, 2750 mm distance between columns.
- 100 Ton Working Pressure
- 3200 mm Max. Bending Length
- 2750 mm Distance Between Columns
- 200 mm Ram Stroke
Product description
The GHBM GH 1032NT is a GHBM-Bend from the GH Series, with 100 Ton working pressure, 3200 mm max. bending length, 2750 mm distance between columns.
100 Ton bending capacity supports the intended material/forming range. 3200 mm working length supports corresponding sheet sizes. Y1, Y2, X, R, V CNC axes support programmed positioning.
It is used for Electrical panels and enclosures, Automotive and auto-component sheet-metal parts, HVAC components and ducts, Industrial cabinets, frames and brackets, General fabrication and precision sheet-metal components.
Features
GH Series CNC press brake configuration
GH-1032NT
Bending force/working pressure
100 Ton
Working/bending length
3200 mm
CNC axis configuration
Y1, Y2, X, R, V
Controller
GHBM EL-15T
Throat depth
400 mm
Ram/stroke data
200 mm
Servo/motor information
7.5 kW
Specifications
| Specification | Details |
|---|---|
| Working Pressure | 100 Ton |
| Max. Bending Length | 3200 mm |
| Distance Between Columns | 2750 mm |
| Ram Stroke | 200 mm |
| Open Height | 460 mm |
| Throat Depth | 400 mmCNC Axis (4+1): Y1, Y2, X, R, V |
| Main Servo Motor Power | 7.5 kWY |
| Approach | 160 mm/s |
| Working | 10 mm/s |
| Return | 160 mm/sX |
| Stroke | 600 mm |
| Speed | 350 mm/s |
| Positioning Accuracy | ≤0.05 mmR |
| Machine Weight | ~8,000 kg, Downstroke Single Servo,GHBM EL-15T Controller,STANDARD MAIN SERVO MOTOR DRIVEN |
Maintenance & care
Check hydraulic/servo system status and oil level where applicable.
Inspect punch and die condition and clean tooling surfaces.
Check backgauge, guideways and axis movement.
Inspect electrical/control panel, cables and sensors.
Lubricate mechanical points according to manufacturer requirements.
Verify tooling alignment and work area cleanliness.
May we help?
- What are the main specifications of the GHBM GH 1032NT?
- The GHBM GH 1032NT offers 100 Ton working pressure, 3200 mm max. bending length, 2750 mm distance between columns, 200 mm ram stroke.
- What is the GHBM GH 1032NT used for?
- It is used for Electrical panels and enclosures, Automotive and auto-component sheet-metal parts, HVAC components and ducts, Industrial cabinets, frames and brackets, General fabrication and precision sheet-metal components.
- What maintenance does the GHBM GH 1032NT need?
- Check hydraulic/servo system status and oil level where applicable. Inspect punch and die condition and clean tooling surfaces. Check backgauge, guideways and axis movement. Inspect electrical/control panel, cables and sensors.
