GHBM GH 2242NT

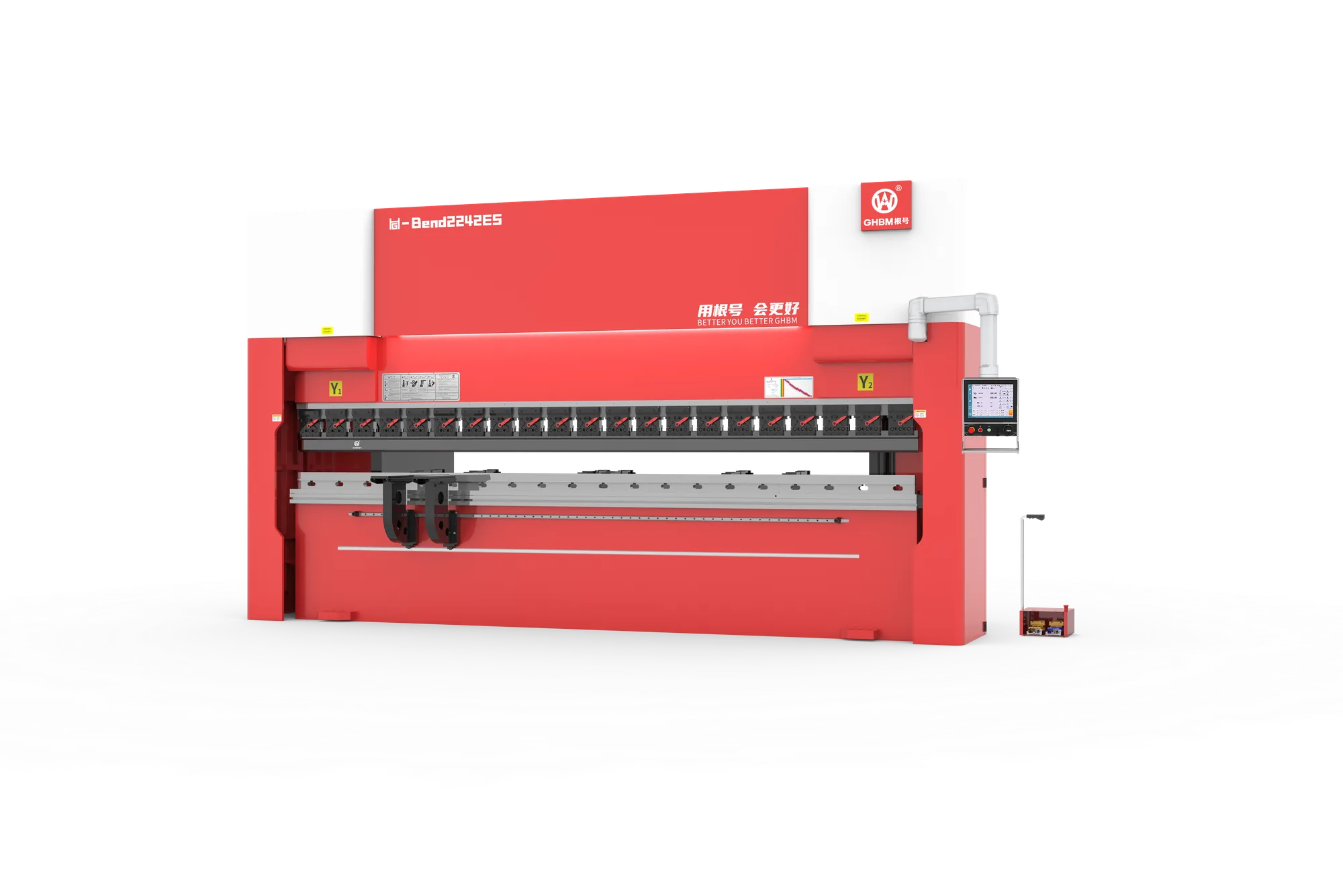

GHBM-Bend — 3400 mm distance between columns, 200 mm ram stroke, 460 mm open height.
- 3400 mm Distance Between Columns
- 200 mm Ram Stroke
- 460 mm Open Height
- 17 kWY Main Servo Motor Power
Product description
The GH-2242NT is suited for electrical panels and enclosures, automotive and auto- component sheet-metal parts, HVAC components and ducts, industrial cabinets, frames and brackets, and general fabrication and precision sheet-metal components. Operation involves powering on the machine and controller, completing hydraulic/servo checks, selecting or creating the bending program, installing and aligning the required punch and die, entering material, thickness, bend angle and positioning parameters, and positioning the sheet using the backgauge. The first bend should be checked for angle and dimensions before continuing the programmed bending sequence. Finished parts should be unloaded safely, followed by tooling and work-area cleaning and safe machine shutdown.
Features
220 Ton Bending Capacity
The GH-2242NT provides a working pressure of 220 Ton for its specified bending applications.
4200 mm Bending Length
The machine provides a maximum bending length of 4200 mm for corresponding sheet sizes.
4+1 CNC Axis Configuration
The GH-2242NT uses Y1, Y2, X, R and V CNC axes for programmed bending and positioning.
400 mm Throat Depth
The machine has a throat depth of 400 mm for its specified forming configuration.
200 mm Ram Stroke
The GH-2242NT provides a ram stroke of 200 mm for its specified bending operations.
17 kW Main Servo Motor
The machine is equipped with a 17 kW main servo motor.
Specifications
| Specification | Details |
|---|---|
| Working Pressure | 220 Ton |
| Max. Bending Length | 4200 mm |
| Distance Between Columns | 3400 mm |
| Ram Stroke | 200 mm |
| Open Height | 460 mm |
| Throat Depth | 400 mm |
| Main Servo Motor Power | 17 kW |
| Y-Axis Approach Speed | 150 mm/s |
| Y-Axis Working Speed | 10 mm/s |
| Y-Axis Return Speed | 150 mm/s |
| X-Axis Stroke | 600 mm |
| X-Axis Speed | 350 mm/s |
| R-Axis Stroke | 150 mm |
| R-Axis Speed | 150 mm/s |
| Dimensions (W × D × H) | 4850 × 2000 × 2700 mm |
Maintenance & care
Check the hydraulic/servo system status and oil level where applicable. Inspect the punch and die condition and clean tooling surfaces regularly. Check the backgauge, guideways and axis movement, along with the electrical/control panel, cables and sensors. Lubricate mechanical points according to manufacturer requirements, verify tooling alignment and work-area cleanliness, and perform periodic preventive maintenance according to the service schedule.
May we help?
- What are the main specifications of the GHBM GH 2242NT?
- The GHBM GH 2242NT offers 3400 mm distance between columns, 200 mm ram stroke, 460 mm open height, 17 kWY main servo motor power.
- What is the GHBM GH 2242NT used for?
- It is used for Electrical panels and enclosures, Automotive and auto-component sheet-metal parts, HVAC components and ducts, Industrial cabinets, frames and brackets, General fabrication and precision sheet-metal components.
- What maintenance does the GHBM GH 2242NT need?
- Check hydraulic/servo system status and oil level where applicable. Inspect punch and die condition and clean tooling surfaces. Check backgauge, guideways and axis movement. Inspect electrical/control panel, cables and sensors.
