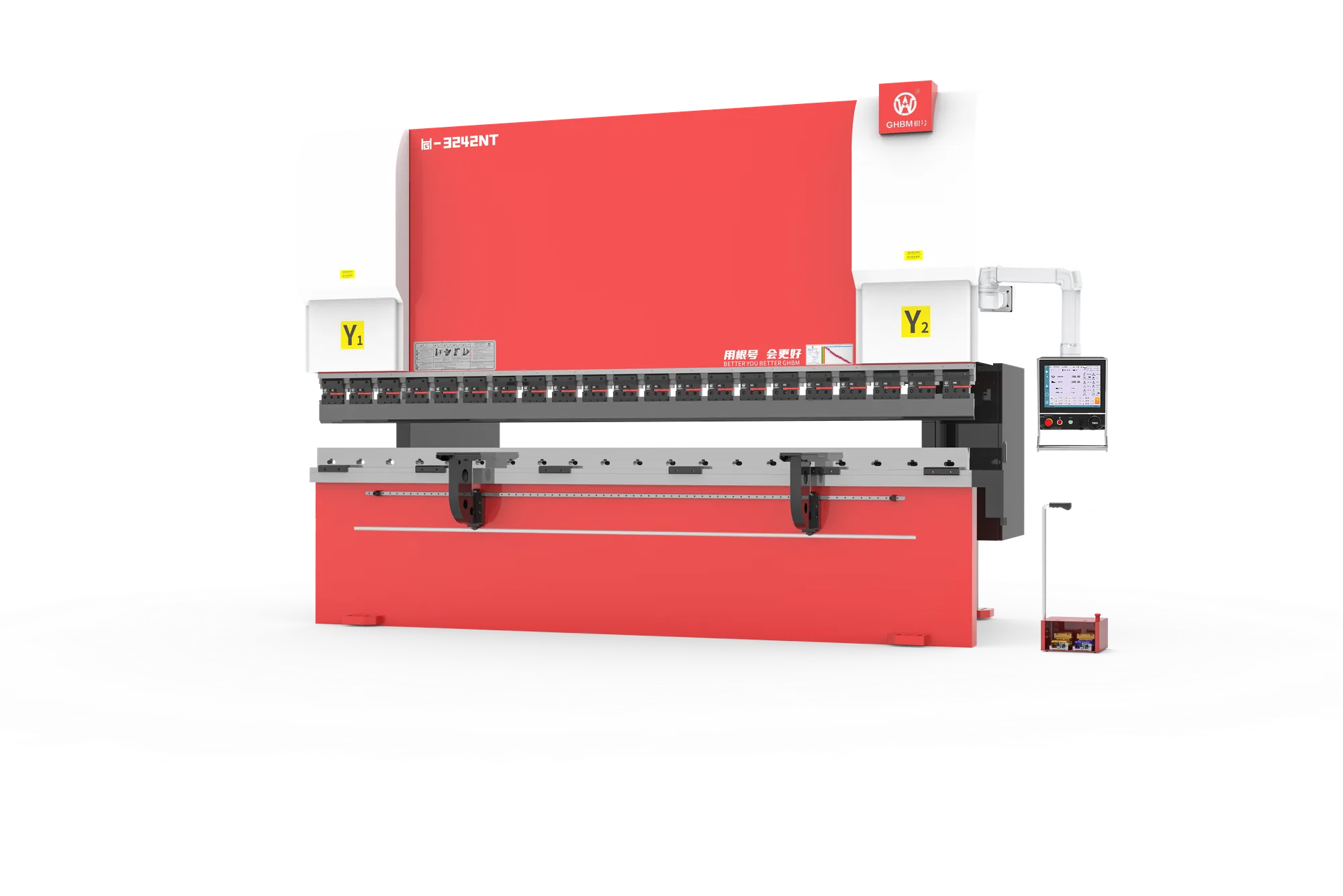

GHBM GH 3242NT
GHBM-Bend — 3400 mm distance between columns, 300 mm ram stroke, 500 mm open height.
- 3400 mm Distance Between Columns
- 300 mm Ram Stroke
- 500 mm Open Height
- 17 kWY Main Servo Motor Power
Product description
The GH-3242NT is suited for electrical panels and enclosures, automotive and auto- component sheet-metal parts, HVAC components and ducts, industrial cabinets, frames and brackets, and general fabrication and precision sheet-metal components. Operation involves powering on the machine and controller, completing hydraulic/servo checks, selecting or creating the bending program, installing and aligning the required punch and die, entering material, thickness, bend angle and positioning parameters, and positioning the sheet using the backgauge. The first bend should be checked for angle and dimensions before continuing the programmed bending sequence. Finished parts should be unloaded safely, followed by tooling and work-area cleaning and safe machine shutdown.
Features
320 Ton Bending Capacity
The GH-3242NT provides a working pressure of 320 Ton for its specified bending applications.
4200 mm Bending Length
The machine provides a maximum bending length of 4200 mm for corresponding sheet sizes.
4+1 CNC Axis Configuration
The GH-3242NT uses Y1, Y2, X, R and V CNC axes for programmed bending and positioning.
450 mm Throat Depth
The machine has a throat depth of 450 mm for its specified forming configuration.
300 mm Ram Stroke
The GH-3242NT provides a ram stroke of 300 mm for its specified bending operations.
17 kW Main Servo Motor
The machine is equipped with a 17 kW main servo motor.
Specifications
| Specification | Details |
|---|---|
| Working Pressure | 320 Ton |
| Max. Bending Length | 4200 mm |
| Distance Between Columns | 3400 mm |
| Ram Stroke | 300 mm |
| Open Height | 500 mm |
| Throat Depth | 450 mm |
| Main Servo Motor Power | 17 kW |
| Y-Axis Approach Speed | 110 mm/s |
| Y-Axis Working Speed | 8 mm/s |
| Y-Axis Return Speed | 110 mm/s |
| X-Axis Stroke | 600 mm |
| X-Axis Speed | 350 mm/s |
| R-Axis Stroke | 150 mm |
| R-Axis Speed | 150 mm/s |
| Dimensions (W × D × H) | 4400 × 2350 × 3200 mm |
Maintenance & care
Check the hydraulic/servo system status and oil level where applicable. Inspect the punch and die condition and clean tooling surfaces regularly. Check the backgauge, guideways and axis movement, along with the electrical/control panel, cables and sensors. Lubricate mechanical points according to manufacturer requirements, verify tooling alignment and work-area cleanliness, and perform periodic preventive maintenance according to the service schedule.
