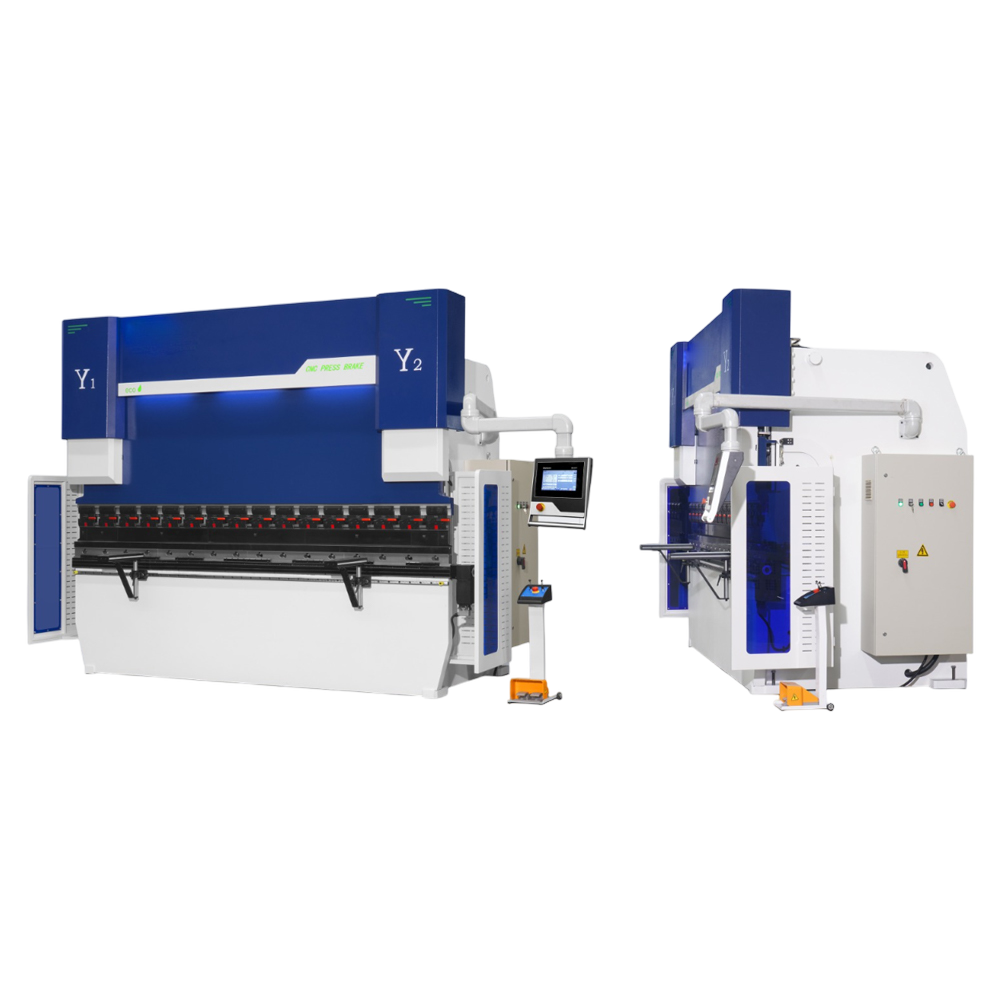

NC Sheet Bending Machine
A compact upstroke NC press brake designed for fast, accurate bending of thin to medium sheet metal, with bending lengths from 1200 mm to 3000 mm.
- 350–1000 kN Working pressure
- 1200–3000 mm Bending length
- ≤ 4 mm Max thickness
- Upstroke NC Configuration
Product description
The GH-NT Series Upstroke NC Press Brake is designed for thin and medium sheet metal bending, combining a stable welded frame with straightforward NC operation. Available in multiple bending lengths and pressure capacities, it provides reliable performance for light fabrication, job shops, and everyday sheet metal applications.
Features
Upstroke NC Design
The upstroke configuration is suited to light and medium sheet metal bending applications.
1200–3000 mm Bending Lengths
Multiple machine sizes provide flexibility for different part dimensions and workshop requirements.
Thin to Medium Sheet Capability
Recommended maximum thickness ranges from 3 mm to 4 mm, depending on the selected model.
Simple NC Control
Straightforward parameter programming supports repeatable bending and efficient machine setup.
Reinforced Welded Frame
The robust frame design provides structural stability during bending operations.
Low Center of Gravity
The machine design helps reduce vibration and deformation during operation.
Multiple Capacity Options
Working pressure ranges from 350 kN to 1000 kN across the available models.
GH-NT upstroke models

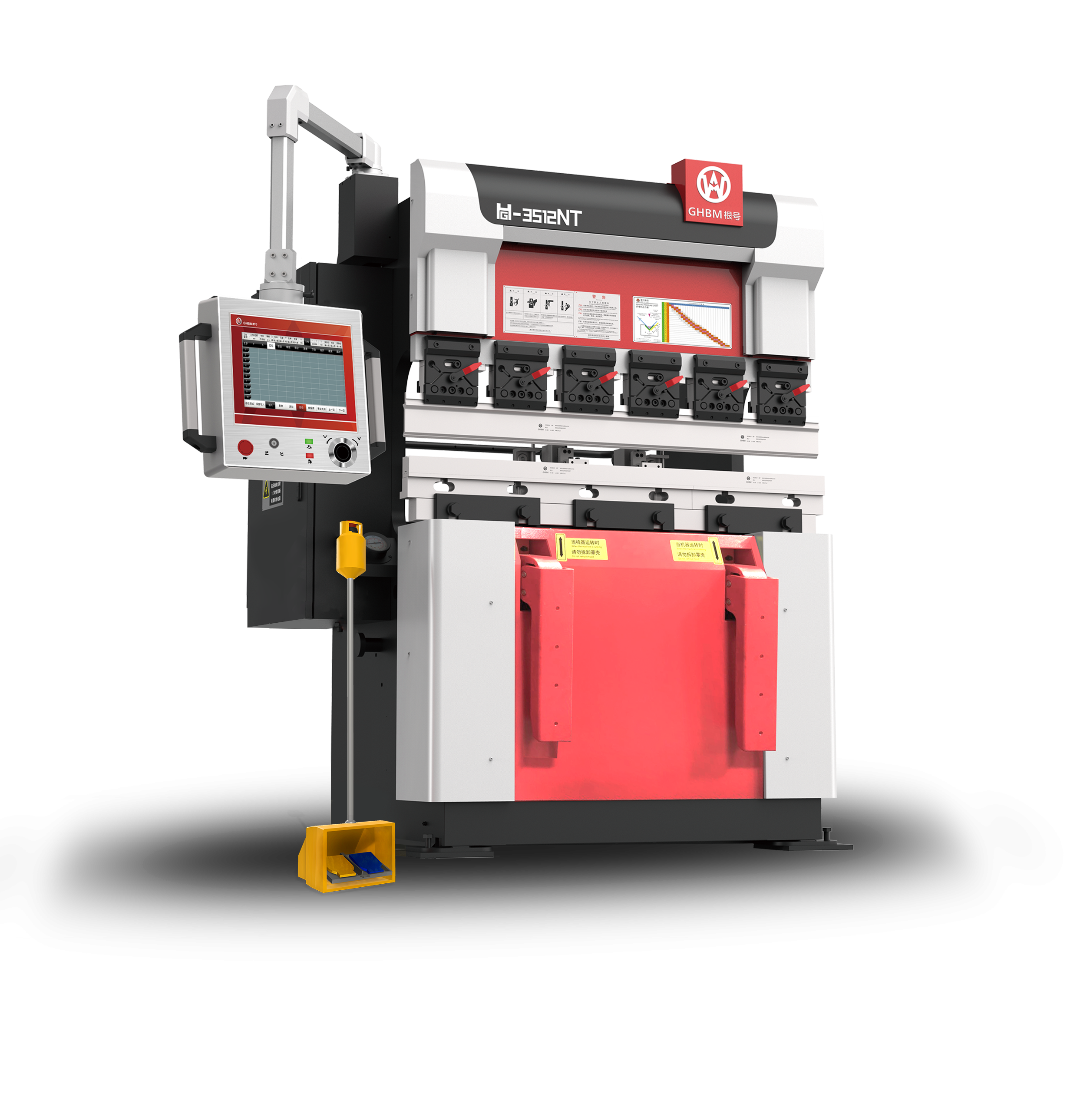

| Specification | GH-3512NT | GH-4016NT | GH-6020NT | GH-8025NT | GH-1030NT |
|---|---|---|---|---|---|
| Bending Length | 1200 mm | 1600 mm | 2000 mm | 2500 mm | 3000 mm |
| Max. Working Pressure | 350 kN | 400 kN | 600 kN | 800 kN | 1000 kN |
| Recommended Max. Thickness | ≤ 3 mm | ≤ 3 mm | ≤ 3.5 mm | ≤ 3.5 mm | ≤ 4 mm |
Maintenance & care
Follow the recommended maintenance schedule for the selected machine configuration. Regularly inspect the hydraulic system, NC controls, tooling, frame, backgauge, and safety components. Maintain lubrication, hydraulic oil, and electrical connections according to the manufacturer's recommendations.
May we help?
- What type of sheet metal is the Upstroke NC Press Brake designed for?
- The GH-NT Series is primarily designed for thin to medium sheet metal applications, with recommended maximum thicknesses ranging from 3 mm to 4 mm depending on the model.
- What bending lengths are available?
- The series includes models with bending lengths from 1200 mm to 3000 mm, allowing manufacturers to select a configuration based on their part and production requirements.
- What applications is the GH-NT Series suitable for?
- It is suitable for light sheet metal fabrication, including ducts, panels, brackets, and other components commonly produced in fabrication workshops and general job shops.
