GH-8025NT

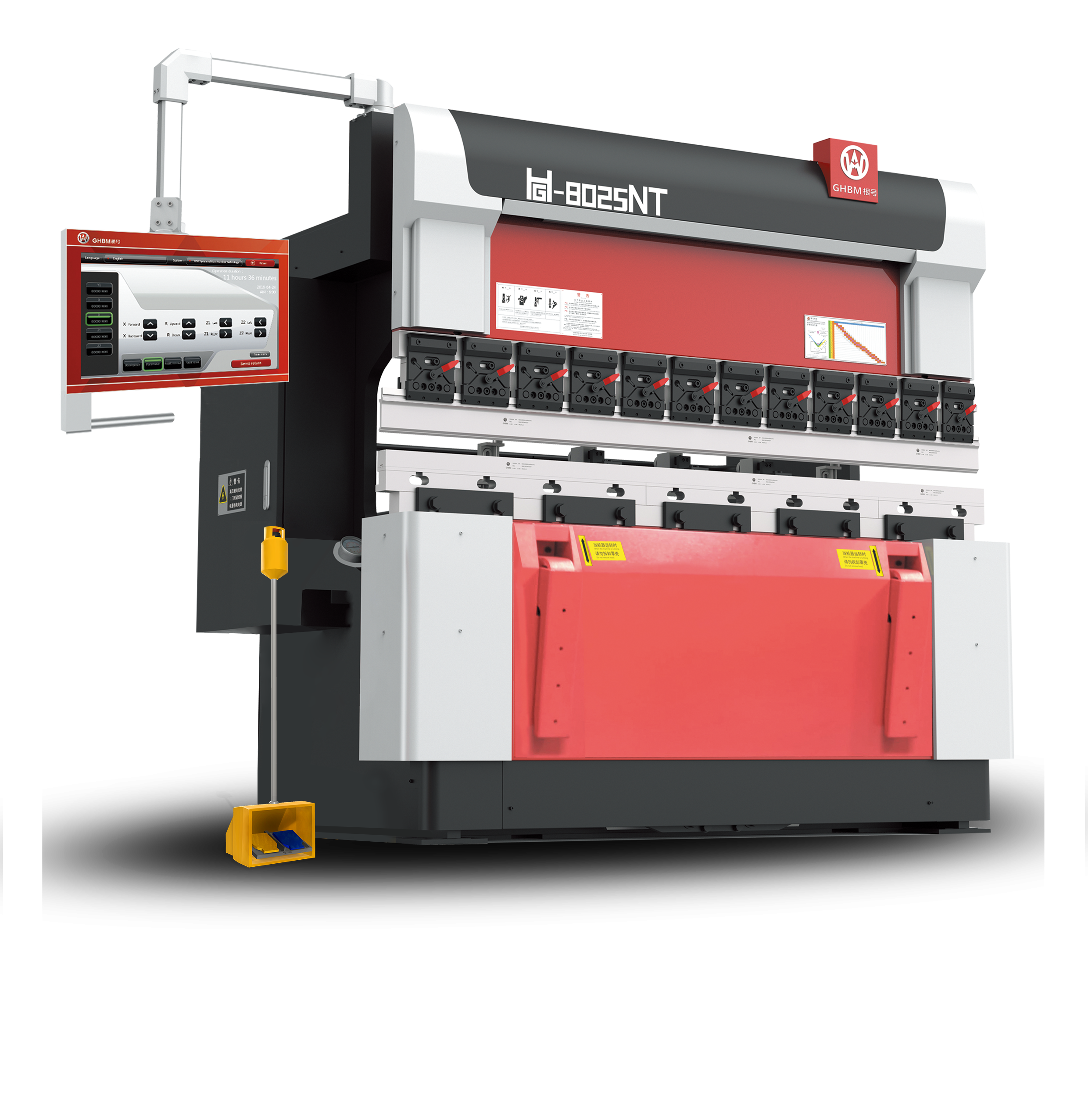

80-ton, 2500 mm CNC press brake with a 3-axis (Y, X, R) NC system, 5.5 kW main motor and a 15-inch display.
- 80 T Bending force
- 2500 mm Maximum bending length
- 3-Axis Y / X / R NC system
- 15-inch Display screen
Product description
The GH-8025NT is an 80-ton CNC press brake designed for sheet metal bending applications. It features a maximum bending length of 2500 mm and a 3-axis NC system (Y, X, R) to support ram movement and workpiece positioning during bending operations.
The machine has a 100 mm table stroke, 400 mm daylight opening, 400 mm throat depth and a maximum X-axis backgauge stroke of 550 mm. It is equipped with a 5.5 kW main motor, three hydraulic cylinders, a 60-litre oil tank and a 15-inch display screen.
The machine dimensions are 2700 × 1200 × 2150 mm, with an approximate weight of 4200 kg. The configuration includes a double-side quick-release punch holder and specified electrical, hydraulic and motion-control components for industrial sheet metal bending applications.
Features
80-Ton Bending Capacity
A maximum working force of 80 tons supports sheet metal bending requirements within the machine's rated capacity.
2500 mm Bending Length
The maximum bending length of 2500 mm provides a working area for longer sheet metal components.
3-Axis NC System
The Y, X and R axis configuration supports ram movement and backgauge positioning during bending operations.
Industrial Machine Construction
With dimensions of 2700 × 1200 × 2150 mm and an approximate weight of 4200 kg, the machine is configured for industrial workshop installations.
15-Inch Display Screen
The machine includes a 15-inch display screen for the operator interface.
Hydraulic System
The configuration includes three hydraulic cylinders, a 60-litre oil tank and a hydraulic system.
Double-Side Quick-Release Punch Holder
The specified punch holder supports punch tooling setup and removal.
Industrial Electrical and Control Components
The configuration includes ABB intermediate relays, a Mitsubishi PLC controller, OMRON/Panasonic proximity switches, a Kacon foot switch and other electrical and control components.
Backgauge Positioning
The maximum X-axis backgauge stroke of 550 mm supports workpiece positioning during bending operations.
Servo Drive Components
The X and Y axes use FLEXEM servo motors and servo drivers.
Technical Specifications
| Specification | GH-8025NT |
|---|---|
| Maximum Working Force | 80 Ton |
| Maximum Bending Length | 2500 mm |
| Distance Between Columns | 2200 mm |
| Table Stroke | 100 mm |
| Daylight Opening | 400 mm |
| Throat Depth | 400 mm |
| Number of NC Axes | Y, X, R — 3-Axis |
| Main Motor Power | 5.5 kW |
| Number of Hydraulic Cylinders | 3 pcs |
| Oil Tank Capacity | 60 L |
| Maximum Backgauge Stroke (X-axis) | 550 mm |
| Ram Up Speed | 52 mm/s |
| Ram Bending Speed | 10 mm/s |
| Ram Down Speed | 46 mm/s |
| Machine Length | 2700 mm |
| Machine Width | 1200 mm |
| Machine Height | 2150 mm |
| Machine Weight | Approximately 4200 kg |
Configuration and Component Brands
| Component | Brand / Origin |
|---|---|
| Intermediate Relay | ABB — Switzerland |
| Closed-Loop Position Sensor | Nationally renowned brands — China |
| Foot Switch | Kacon — Korea |
| Limit Switch | Yamatake — Japan |
| PLC Controller | Mitsubishi — Japan |
| Proximity Switch | OMRON / Panasonic — Japan |
| Hydraulic Cylinder Seal Kit | NOK — Japan |
| Machine Frame | GHBM — China |
| Double-Side Quick-Release Punch Holder | GHBM — China |
| Relay Module | GHBM — China |
| Hydraulic System | GHBM — China |
| 15-Inch Display Screen | GHBM — China |
| Hydraulic Solenoid Valve | GHBM — China |
| Hydraulic Pump | GHBM — China |
| X- and Y-Axis Servo Motor | FLEXEM — China |
| X- and Y-Axis Servo Driver | FLEXEM — China |
| Electronic Pulse Encoder | Lingdu — China |
| Power Supply | MEAN WELL — Taiwan |
Maintenance & care
Follow the manufacturer's recommended maintenance schedule to support reliable machine operation.
- Regularly inspect the hydraulic system, cylinders and hydraulic connections.
- Check hydraulic oil levels and maintain oil quality according to manufacturer guidelines.
- Keep the worktable, punch holder and tooling clean.
- Periodically inspect electrical components, servo systems and backgauge mechanisms.
- Operate the machine according to the manufacturer's safety and operating instructions.
