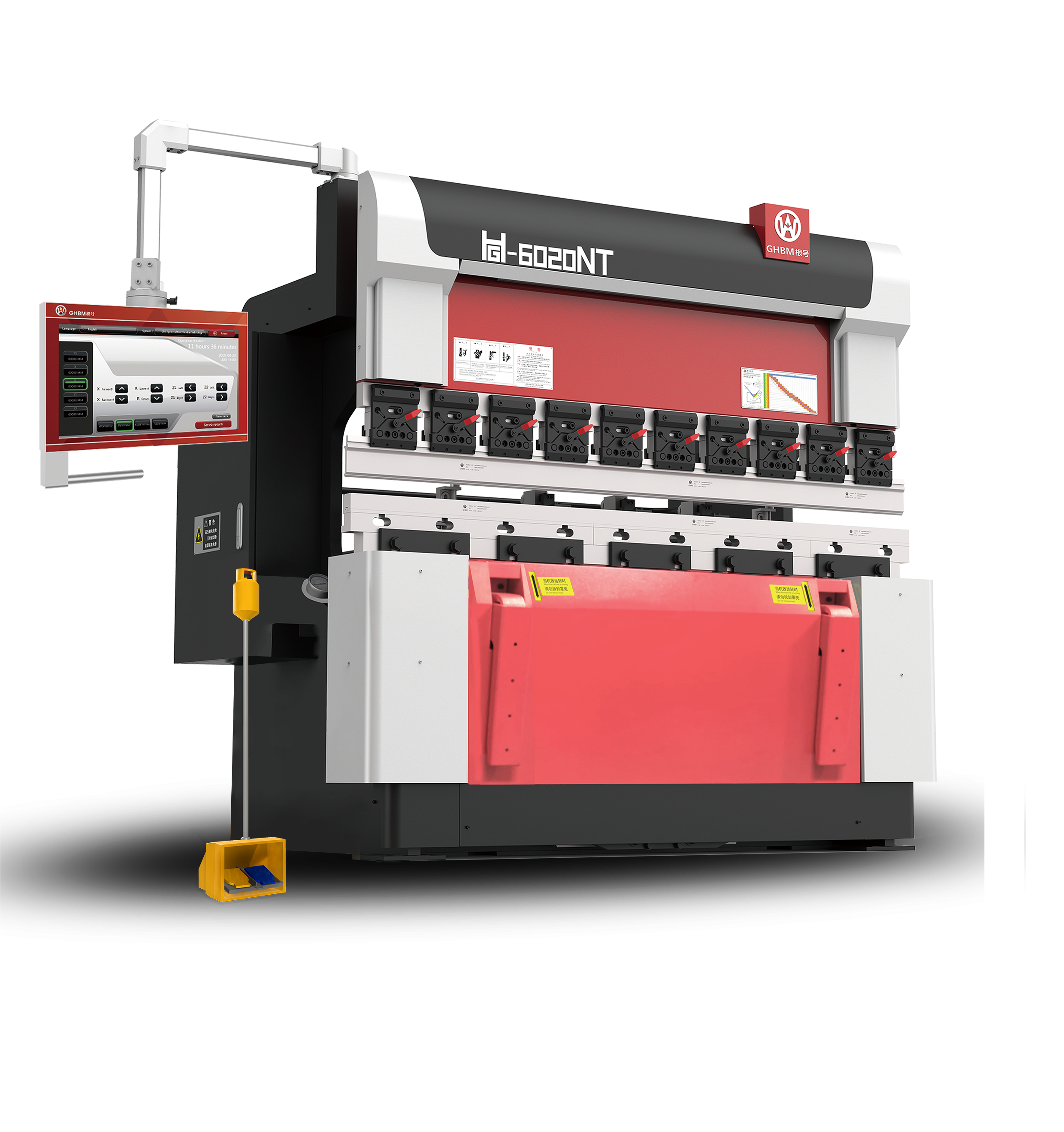

GH-6020NT
60-ton, 2000 mm CNC press brake with a 3-axis (Y, X, R) NC system, 5.5 kW main motor and a 15-inch display.
- 60 T Bending force
- 2000 mm Maximum bending length
- 3-Axis Y / X / R NC system
- 15-inch Display screen
Product description
The GH-6020NT is a 60-ton CNC press brake designed for sheet metal bending applications. It features a maximum bending length of 2000 mm and a 3-axis NC system (Y, X, R) to support bending operations and workpiece positioning.
The machine has a 100 mm table stroke, 400 mm daylight opening, 400 mm throat depth and a maximum X-axis backgauge stroke of 550 mm. It is equipped with a 5.5 kW main motor, three hydraulic cylinders, a 60-litre oil tank and a 15-inch display screen. With dimensions of 2200 × 1250 × 2150 mm and an approximate weight of 3500 kg, the machine is configured for industrial sheet metal bending applications.
Features
60-Ton Bending Capacity
A maximum working force of 60 tons supports sheet metal bending requirements within the machine's rated capacity.
2000 mm Bending Length
The maximum bending length of 2000 mm accommodates sheet metal components requiring a longer working area.
3-Axis NC System
The Y, X and R axis configuration supports ram movement and backgauge positioning during bending operations.
Industrial Machine Construction
With dimensions of 2200 × 1250 × 2150 mm and an approximate weight of 3500 kg, the machine is designed for industrial workshop installations.
15-Inch Display Screen
The machine features a 15-inch display screen for the operator interface.
Hydraulic System
The configuration includes a hydraulic system with three hydraulic cylinders and a 60-litre oil tank.
Double-Side Quick-Release Punch Holder
The specified punch holder supports punch tooling setup and removal.
Industrial Electrical Components
The configuration includes components from ABB, Mitsubishi, OMRON/Panasonic, Yamatake, Kacon and other specified suppliers.
Backgauge Positioning
The maximum X-axis backgauge stroke of 550 mm supports workpiece positioning during bending operations.
Technical Specifications
| Specification | GH-6020NT |
|---|---|
| Maximum Working Force | 60 Ton |
| Maximum Bending Length | 2000 mm |
| Distance Between Columns | 1700 mm |
| Table Stroke | 100 mm |
| Daylight Opening | 400 mm |
| Throat Depth | 400 mm |
| Number of NC Axes | Y, X, R — 3-Axis |
| Main Motor Power | 5.5 kW |
| Number of Hydraulic Cylinders | 3 pcs |
| Oil Tank Capacity | 60 L |
| Maximum Backgauge Stroke (X-axis) | 550 mm |
| Ram Up Speed | 52 mm/s |
| Ram Bending Speed | 10 mm/s |
| Ram Down Speed | 46 mm/s |
| Machine Length | 2200 mm |
| Machine Width | 1250 mm |
| Machine Height | 2150 mm |
| Machine Weight | Approximately 3500 kg |
Configuration and Component Brands
| Component | Brand / Origin |
|---|---|
| Intermediate Relay | ABB — Switzerland |
| Closed-Loop Position Sensor | Nationally renowned brands — China |
| Foot Switch | Kacon — Korea |
| Limit Switch | Yamatake — Japan |
| PLC Controller | Mitsubishi — Japan |
| Proximity Switch | OMRON / Panasonic — Japan |
| Hydraulic Cylinder Seal Kit | NOK — Japan |
| Machine Frame | GHBM — China |
| Double-Side Quick-Release Punch Holder | GHBM — China |
| Relay Module | GHBM — China |
| Hydraulic System | GHBM — China |
| 15-Inch Display Screen | GHBM — China |
| Hydraulic Solenoid Valve | GHBM — China |
| Hydraulic Pump | GHBM — China |
| X- and Y-Axis Servo Motor | FLEXEM — China |
| X- and Y-Axis Servo Driver | FLEXEM — China |
| Electronic Pulse Encoder | Lingdu — China |
| Power Supply | MEAN WELL — Taiwan |
Maintenance & care
Follow the manufacturer's recommended maintenance schedule to support reliable machine operation.
- Regularly inspect the hydraulic system, cylinders and hydraulic connections.
- Check hydraulic oil levels and maintain the oil according to manufacturer guidelines.
- Keep the worktable, punch holder and tooling clean.
- Inspect electrical components and backgauge mechanisms periodically.
- Operate the machine according to the manufacturer's safety and operating instructions.
