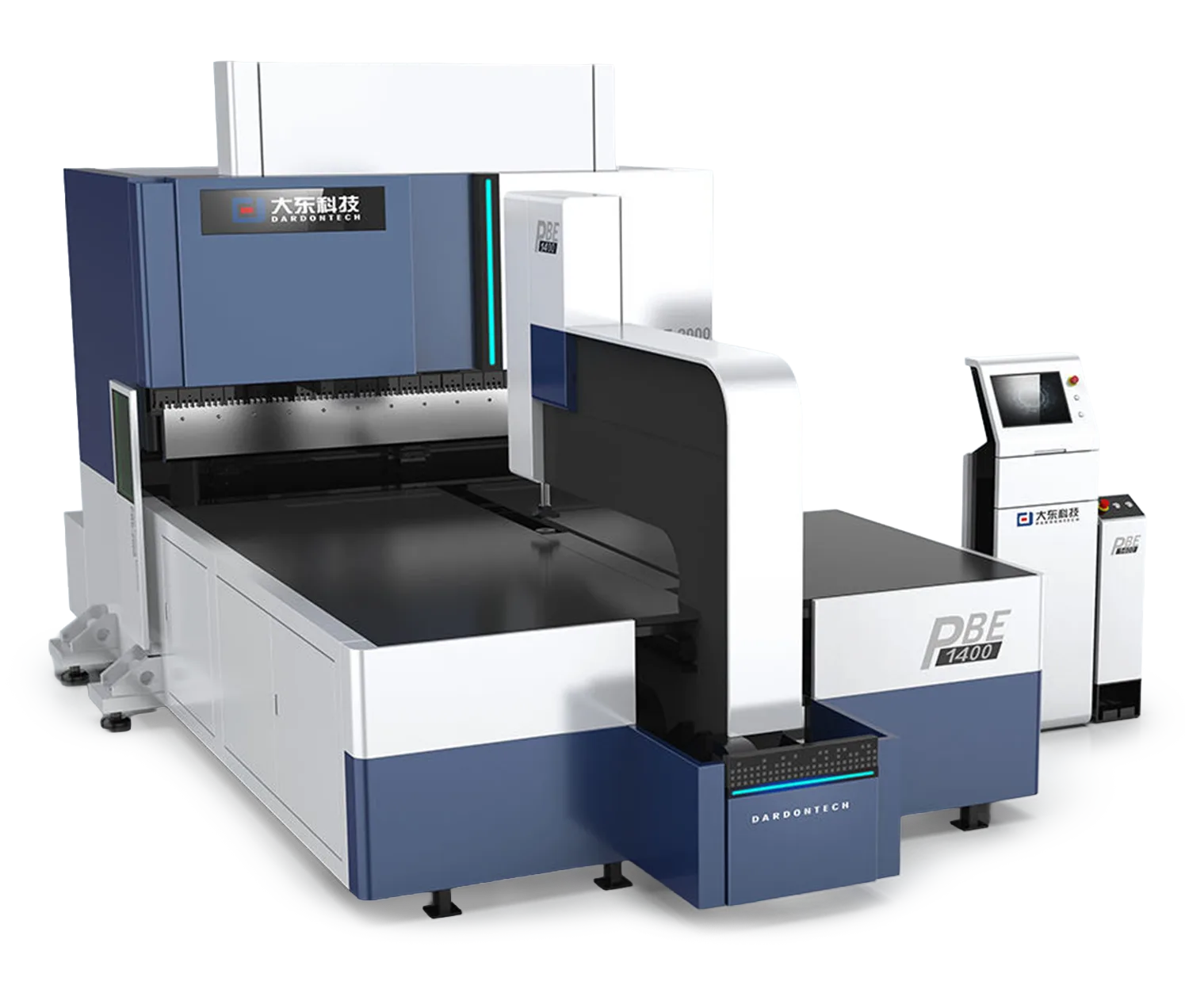

Dardontech PBE-1400
A CNC bending machine with a 1400 mm bending length, ±135° bending range and up to 38 T pressing force for versatile sheet forming.
- 1400 mm Bending length
- ±135° Bending angle
- 38 T Max pressing force
- 0.35 mm Min thickness
Product description
The Dardontech PBE-1400 is designed for precision sheet metal bending with a maximum bending length and sheet width of 1400 mm. Its ±135° bending range supports a wide range of forming operations, while standard and heavy-duty configurations provide pressing forces of up to 28 T and 38 T. The machine can process sheet material from 0.35 mm, with maximum capacities of up to 2.0 mm for stainless steel, 3.0 mm for mild steel and 3.5 mm for aluminum, depending on configuration. Angular precision of ±0.5 and straightness precision of ±0.2 support consistent bending performance.
Features
1400 mm Bending Length
The 1400 mm bending length provides capacity for a broader range of sheet metal components and workpieces.
1400 mm Sheet Width
The machine accommodates sheets up to 1400 mm wide for flexible forming applications.
±135° Bending Angle
A bending range of ±135° supports different forming requirements across sheet metal applications.
Up to 38 T Pressing Force
The heavy-duty configuration provides up to 38 T pressing force for demanding bending operations.
Material-Specific Thickness Capacity
The machine supports stainless steel up to 2.0 mm, mild steel up to 3.0 mm and aluminum up to 3.5 mm, depending on configuration.
Precision Forming
Angular precision of ±0.5 and straightness precision of ±0.2 support accurate and repeatable bending results.
Standard and Heavy-Duty Options
Two pressing-force configurations allow the machine to be selected according to the required bending workload.
Technical specification
| Specification | Details |
|---|---|
| Model | PBE-1400 |
| Max. Bending Height | 170 mm |
| Bending Angle | ±135° |
| Min. Sheet Thickness | 0.35 mm |
| Angular Precision | ±0.5 °/m |
| Straightness Precision | ±0.2 °/m |
| Working Voltage | 380V ±10% |
| Max. Bending Length | 1400 mm |
| Max. Sheet Width | 1400 mm |
| Min. Workpiece Size — Four Sides Bending | 200 mm |
| Min. Workpiece Size — Single Side Bending | 170 mm |
| Max. Pressing Force — Standard | 28 T |
| Max. Pressing Force — Heavy Duty | 38 T |
| Max. Sheet Thickness — SS | 1.0 / 1.5 / 2.0 mm |
| Max. Sheet Thickness — MS | 1.5 / 2.0 / 3.0 mm |
| Max. Sheet Thickness — AL | 2.0 / 3.0 / 3.5 mm |
| Power — Standard | 36 kW |
| Power — Heavy Duty | 40 kW |
Maintenance & care
Maintain the PBE-1400 according to the manufacturer's recommended service schedule. Regularly inspect the bending mechanism, tooling, CNC controls and electrical systems. Keep the machine and work area clean and carry out lubrication, inspection and preventive maintenance as specified for the selected configuration.
May we help?
- What is the maximum bending length of the PBE-1400?
- The Dardontech PBE-1400 has a maximum bending length of 1400 mm and supports sheet widths up to 1400 mm.
- What materials can the PBE-1400 bend?
- The machine is specified for stainless steel, mild steel and aluminum, with maximum sheet thickness depending on the material and selected configuration.
- What is the maximum pressing force of the PBE-1400?
- The standard configuration provides up to 28 T of pressing force, while the heavy-duty configuration provides up to 38 T.
