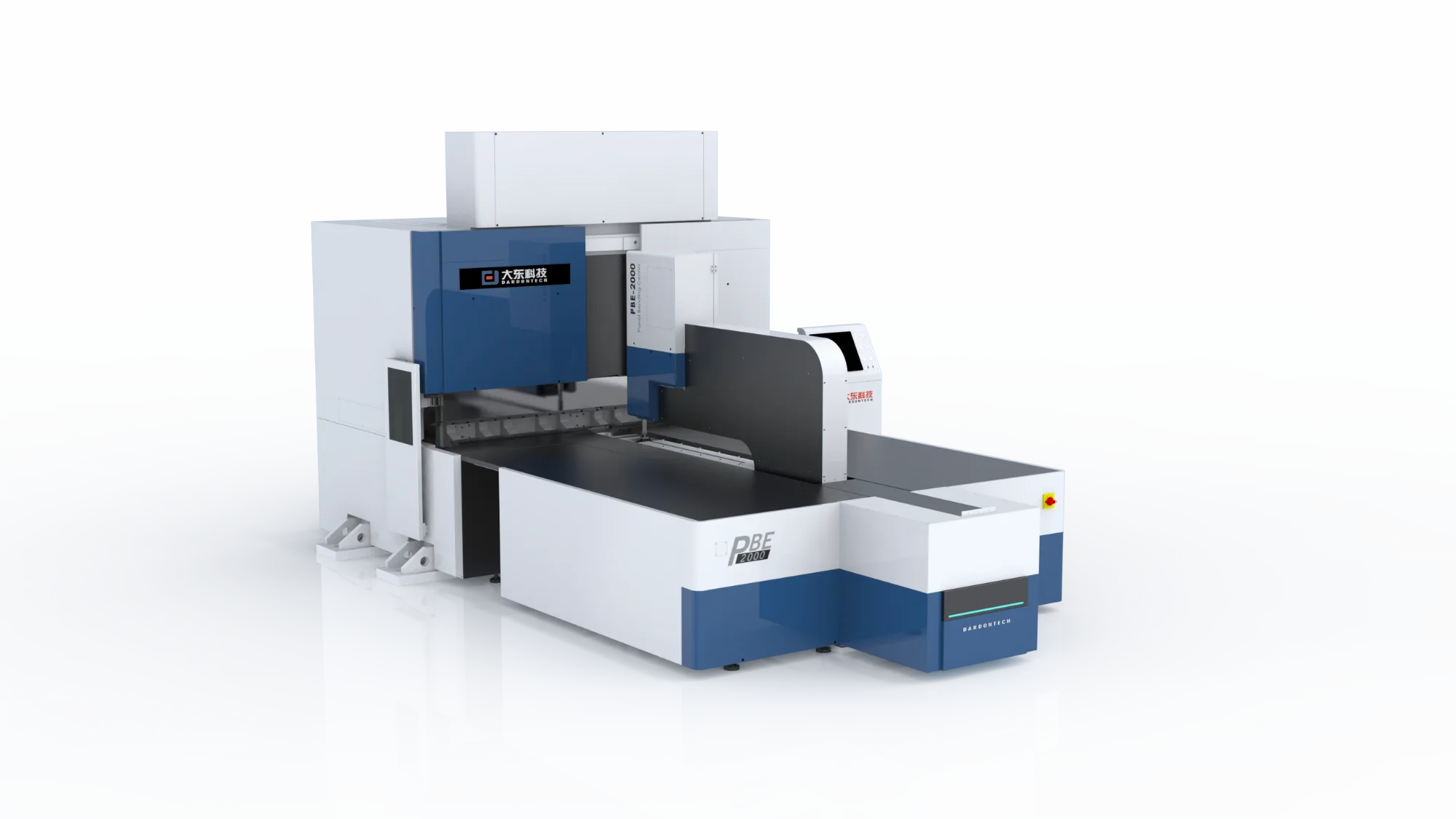

Dardontech PBE-2000
A CNC bending machine with a 2000 mm bending length, 1250 mm sheet width, ±135° bending range and up to 53 T pressing force.
- 2000 mm Bending length
- 1250 mm Sheet width
- 53 T Max pressing force
- 0.35 mm Min thickness
Product description
The Dardontech PBE-2000 is built for precision bending of larger sheet metal workpieces, providing a maximum bending length of 2000 mm and sheet width of 1250 mm. Its ±135° bending range supports versatile forming operations, while standard and heavy-duty configurations provide pressing forces of up to 38 T and 53 T. The machine handles sheet material from 0.35 mm and supports stainless steel up to 2.0 mm, mild steel up to 3.0 mm and aluminum up to 3.5 mm, depending on configuration. Angular precision of ±0.5 and straightness precision of ±0.2 support consistent forming results.
Features
2000 mm Bending Length
The 2000 mm bending length accommodates larger sheet metal components and extended workpieces.
1250 mm Sheet Width
The machine supports sheet widths up to 1250 mm for a range of industrial bending applications.
Up to 53 T Pressing Force
The heavy-duty configuration delivers up to 53 T of pressing force for higher-demand forming operations.
±135° Bending Range
The machine provides a broad bending angle range for different sheet forming requirements.
Material-Specific Processing
Maximum sheet thickness reaches up to 2.0 mm for stainless steel, 3.0 mm for mild steel and 3.5 mm for aluminum, depending on configuration.
Precision Bending
Angular precision of ±0.5 and straightness precision of ±0.2 support accurate and consistent bending.
Standard and Heavy-Duty Configurations
The PBE-2000 is available in configurations with different pressing forces to match production requirements.
Technical specification
| Specification | Details |
|---|---|
| Model | PBE-2000 |
| Max. Bending Height | 170 mm |
| Bending Angle | ±135° |
| Min. Sheet Thickness | 0.35 mm |
| Angular Precision | ±0.5 °/m |
| Straightness Precision | ±0.2 °/m |
| Working Voltage | 380V ±10% |
| Max. Bending Length | 2000 mm |
| Max. Sheet Width | 1250 mm |
| Min. Workpiece Size — Four Sides Bending | 200 mm |
| Min. Workpiece Size — Single Side Bending | 170 mm |
| Max. Pressing Force — Standard | 38 T |
| Max. Pressing Force — Heavy Duty | 53 T |
| Max. Sheet Thickness — SS | 1.0 / 1.5 / 2.0 mm |
| Max. Sheet Thickness — MS | 1.5 / 2.0 / 3.0 mm |
| Max. Sheet Thickness — AL | 2.0 / 3.0 / 3.5 mm |
| Power — Standard | 41 kW |
| Power — Heavy Duty | 41 kW |
Maintenance & care
Follow the recommended maintenance schedule for the PBE-2000 configuration in use. Regularly inspect the bending mechanism, tooling, CNC controls and electrical systems. Keep the machine clean and maintain lubrication and other preventive maintenance requirements according to the manufacturer's recommendations.
May we help?
- What is the maximum bending length of the PBE-2000?
- The PBE-2000 provides a maximum bending length of 2000 mm and is designed for bending larger sheet metal workpieces.
- What is the maximum pressing force available?
- The standard configuration provides up to 38 T of pressing force, while the heavy-duty configuration provides up to 53 T.
