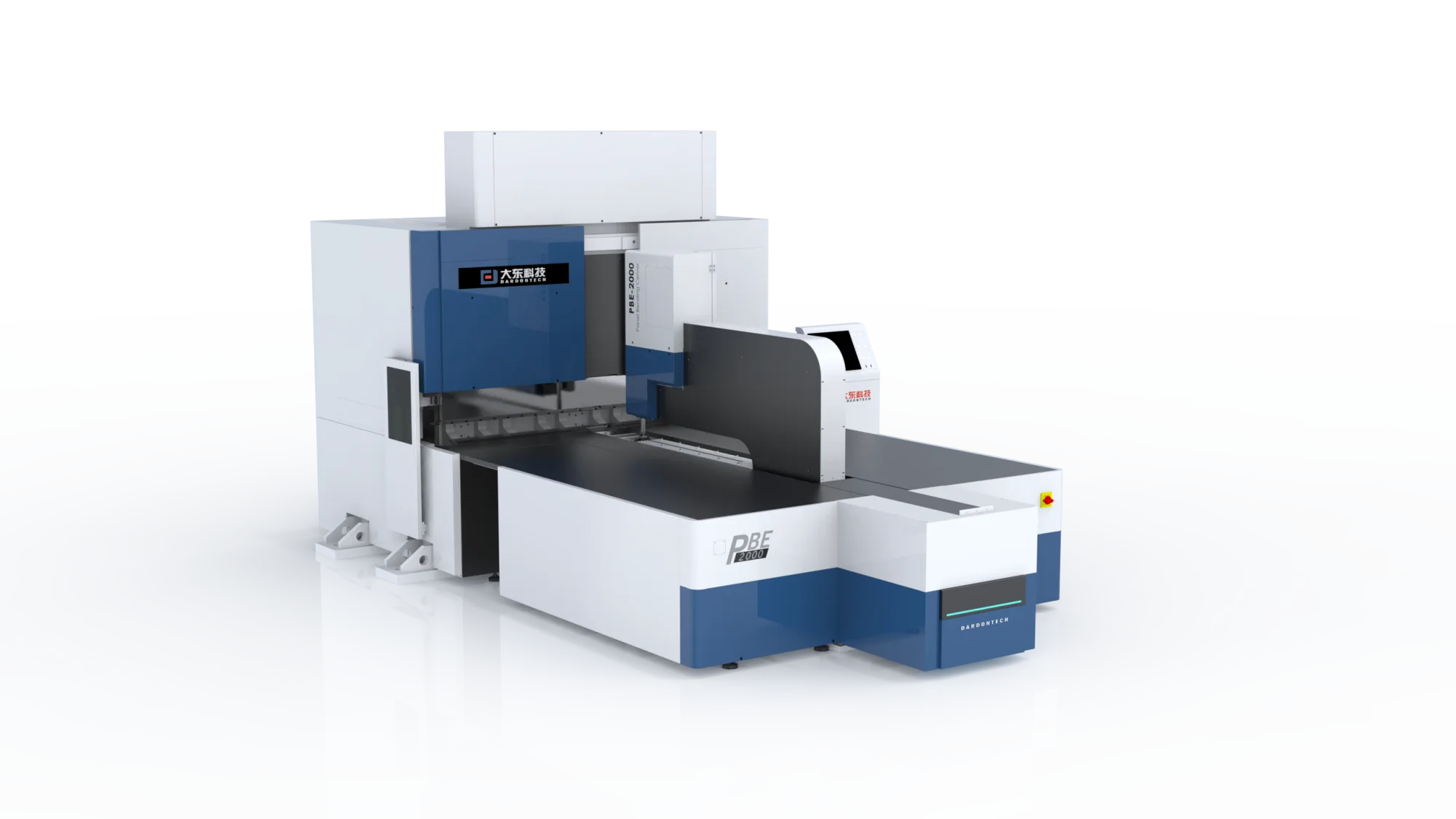

Dardontech PBE-3000
A large-format CNC bending machine with a 3000 mm bending length, ±135° bending capability and up to 155 T pressing force.
- 3000 mm Bending length
- ±135° Bending angle
- 155 T Max pressing force
- 3 axes Configuration
Product description
The Dardontech PBE-3000 is the largest model in the supplied PBE Series range, designed for bending larger sheet metal workpieces across a 3000 mm bending length. It supports sheet widths up to 1250 mm and provides a ±135° bending range. Standard and heavy-duty configurations deliver pressing forces of up to 115 T and 155 T respectively, with both configurations specified for 3-axis operation. The machine processes sheet material from 0.35 mm, with maximum capacities of up to 2.0 mm for stainless steel, 3.0 mm for mild steel and 3.5 mm for aluminum. Angular precision of ±0.5 and straightness precision of ±0.2 support consistent bending results.
Features
3000 mm Bending Length
The 3000 mm bending length supports larger components and extended sheet metal workpieces.
1250 mm Sheet Width
The machine accommodates sheet widths up to 1250 mm for larger-format bending applications.
Up to 155 T Pressing Force
The heavy-duty configuration provides up to 155 T of pressing force for demanding sheet forming operations.
3-Axis Configuration
Both standard and heavy-duty configurations are specified for 3-axis operation.
±135° Bending Angle
The ±135° bending range provides flexibility for different forming requirements.
Material-Specific Processing
The machine supports stainless steel up to 2.0 mm, mild steel up to 3.0 mm and aluminum up to 3.5 mm, depending on configuration.
Precision Bending
Angular precision of ±0.5 and straightness precision of ±0.2 support controlled and repeatable forming.
Technical specification
| Specification | Details |
|---|---|
| Model | PBE-3000 |
| Max. Bending Height | 170 mm |
| Bending Angle | ±135° |
| Min. Sheet Thickness | 0.35 mm |
| Angular Precision | ±0.5 °/m |
| Straightness Precision | ±0.2 °/m |
| Working Voltage | 380V ±10% |
| Max. Bending Length | 3000 mm |
| Max. Sheet Width | 1250 mm |
| Min. Workpiece Size — Four Sides Bending | 200 mm |
| Min. Workpiece Size — Single Side Bending | 170 mm |
| Max. Pressing Force — Standard | 115 T (3 axes) |
| Max. Pressing Force — Heavy Duty | 155 T (3 axes) |
| Max. Sheet Thickness — SS | 1.0 / 1.5 / 2.0 mm |
| Max. Sheet Thickness — MS | 1.5 / 2.0 / 3.0 mm |
| Max. Sheet Thickness — AL | 2.0 / 3.0 / 3.5 mm |
| Power — Standard | 71 kW |
| Power — Heavy Duty | 81 kW |
Maintenance & care
Maintain the PBE-3000 according to the manufacturer's recommended maintenance schedule. Regularly inspect the bending mechanism, tooling, 3-axis system, CNC controls and electrical components. Keep the working area clean and maintain lubrication and preventive servicing requirements according to the selected machine configuration.
May we help?
- What is the maximum bending length of the PBE-3000?
- The Dardontech PBE-3000 provides a maximum bending length of 3000 mm and supports sheet widths up to 1250 mm.
- How much pressing force does the PBE-3000 provide?
- The standard configuration provides up to 115 T of pressing force, while the heavy-duty configuration provides up to 155 T. Both configurations are specified for 3-axis operation.
- What sheet thickness can the PBE-3000 process?
- The minimum specified sheet thickness is 0.35 mm. Maximum thickness varies by material and configuration, reaching up to 2.0 mm for stainless steel, 3.0 mm for mild steel and 3.5 mm for aluminum.
