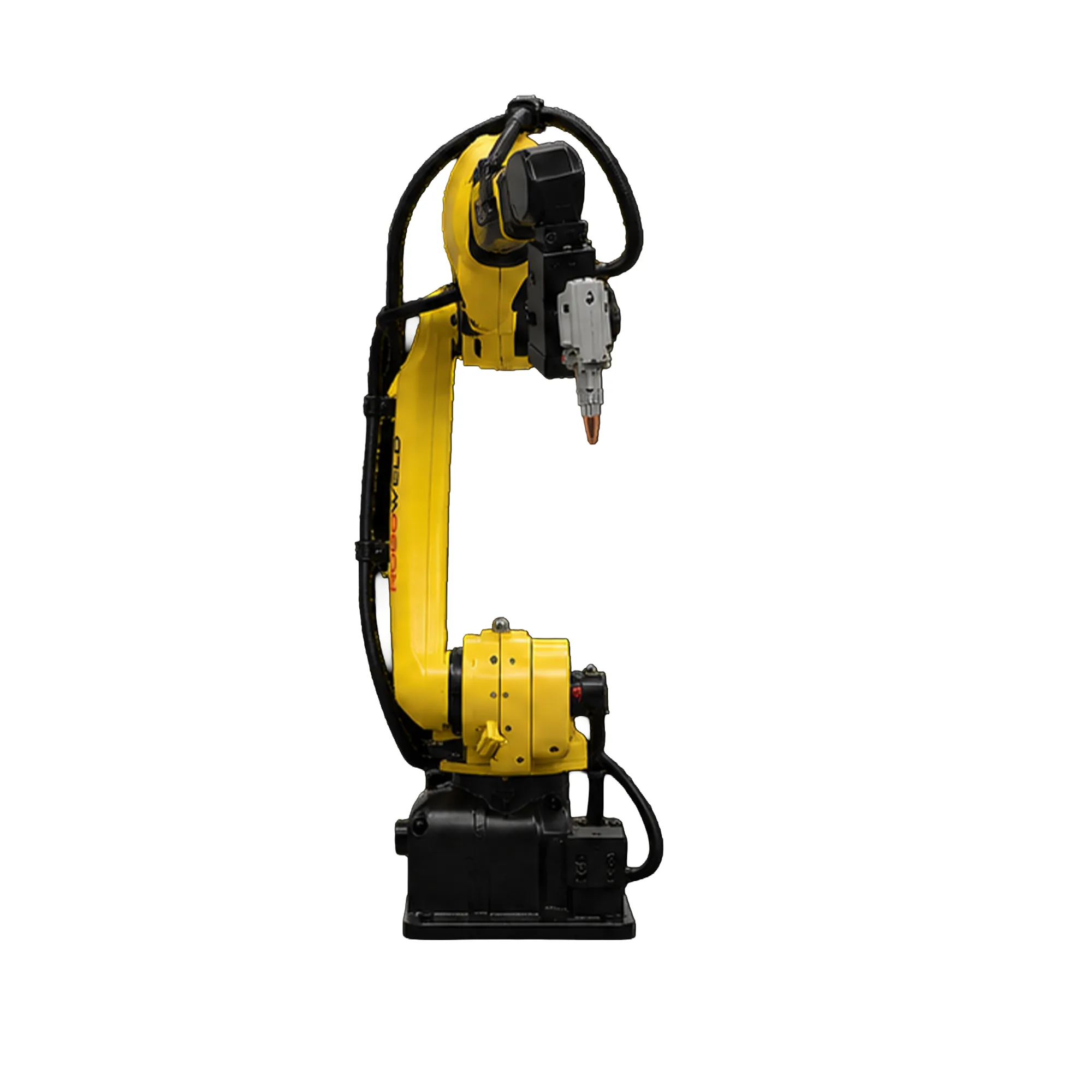

FANUC M10iD12
ROBO-Weld- Automatic Laser Welding Machine — 12kg payload), 1441mm max. reach, Floor Mounted robot mounting.
- 12kg Payload)
- 1441mm Max. Reach
- Floor Mounted Robot Mounting
- 6 Controlled axes
Product description
The FANUC M10iD12 is an ROBO-Weld- Automatic Laser Welding Machine from the ROBO-Weld, with 12kg payload), 1441mm max. reach, Floor Mounted robot mounting.
Model FANUC M10iD12 provides programmable robotic motion for repeatable welding. Model-specific reach/payload supports its stated work envelope. Automated motion can reduce repeated manual positioning.
It is used for Automotive and auto-component welding, Sheet-metal assemblies and frames, Industrial equipment and fabricated structures, Repeated MIG/MAG/TIG/laser welding operations where configured, Production cells requiring repeatable programmed weld paths.
Features
Payload/reach
12kg
Repeatability/positioning
/ Positioning
Compatible welding processes
Laser / MIG / TIG / Servo MIG / ARC (GMAW/FCAW)
Programmable robotic motion for repeatable
Weld paths
Teach/program workflow supported by the
Listed controller/interface
Model FANUC M10iD12 provides programmable
Robotic motion for repeatable welding
Model-specific reach/payload supports its stated
Work envelope
Automated motion can reduce repeated
Manual positioning
Specifications
| Specification | Details |
|---|---|
| Model | FANUC M10iD12 Max. Load capacity at Wrist ( |
| Payload) | 12kg |
| Max. Reach | 1441mm |
| Robot Mounting | Floor Mounted |
| Controlled axes | 6 |
| Robot footprint | 340X340mm |
| Mechanical weight | 130kg |
| Repeatability / Positioning Precision | ± 0.02mm |
| Max. Rapid Speed / Simultaneous | 2000mm/sec |
| Welding Compatible | Laser / MIG / TIG / Servo MIG / ARC (GMAW/FCAW) |
| Electrical connections | 50/60Hz 3phase 200-220VAC Volt |
| Controller | R-30iB Plus |
| Focus Length | 155mm |
| Assist Gas Pressure | ≤ 1 Bar |
Maintenance & care
Inspect torch/nozzle, cable routing and wire-feeding components.
Check robot joints, mounting and work envelope for obstructions.
Inspect welding power source, cooling and gas supply.
Check fixtures and workpiece location before production.
Clean spatter from torch and surrounding fixtures.
Inspect electrical connections and teach-pendant/control condition.
May we help?
- What are the main specifications of the FANUC M10iD12?
- The FANUC M10iD12 offers 12kg payload), 1441mm max. reach, Floor Mounted robot mounting, 6 controlled axes.
- What is the FANUC M10iD12 used for?
- It is used for Automotive and auto-component welding, Sheet-metal assemblies and frames, Industrial equipment and fabricated structures, Repeated MIG/MAG/TIG/laser welding operations where configured, Production cells requiring repeatable programmed weld paths.
- What maintenance does the FANUC M10iD12 need?
- Inspect torch/nozzle, cable routing and wire-feeding components. Check robot joints, mounting and work envelope for obstructions. Inspect welding power source, cooling and gas supply. Check fixtures and workpiece location before production.
