GH-1025NT

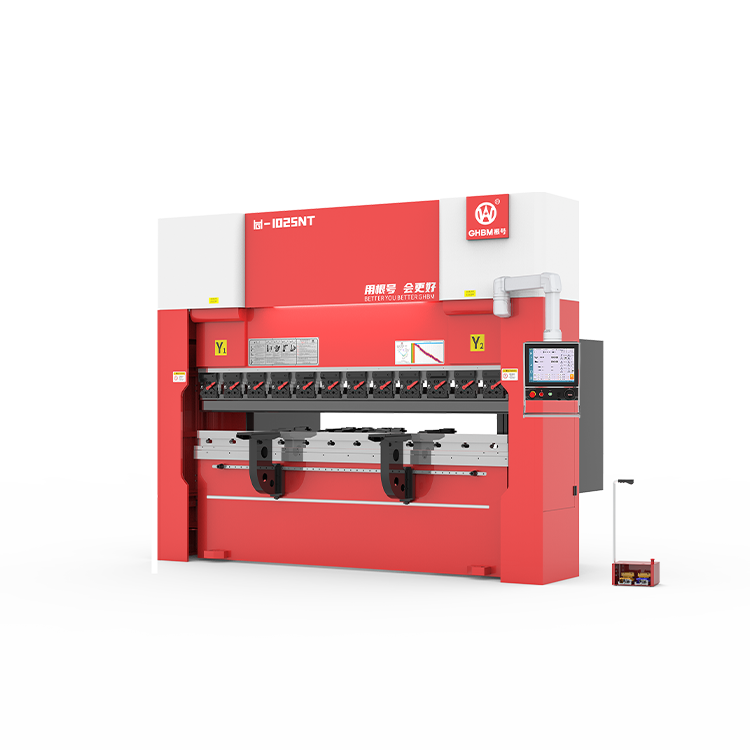

100-ton, 2500 mm NT Series CNC press brake with a 7-axis (Y1, Y2, X, R, V, Z1, Z2) configuration, GHBM-940T controller and 21.5-inch display.
- 100 Ton Max. working force
- 2500 mm Max. bending length
- 7-Axis NC axes
- 21.5-inch Techmation display screen
Product description
The GH-1025NT is a CNC press brake from GHBM's NT Series. It has a working force of 100 tons and a maximum bending length of 2500 mm. Its seven NC axes are Y1, Y2, X, R, V, Z1 and Z2, which control ram movement, backgauge positioning and the worktable.
The machine has a 460 mm daylight opening, a 200 mm ram stroke and a 320 mm throat depth. It is controlled by a GHBM-940T CNC controller with a 21.5-inch Techmation display. Its configuration includes a 7.5 kW Techmation main servo motor, a DPT hydraulic system, an OPKON closed-loop position sensor, SKF/NOK cylinder seals and a GHBM double-side quick-release clamp.
Features
100-Ton Working Force
Maximum working force of 100 tons for medium-duty sheet metal bending.
2500 mm Bending Length
2.5-metre maximum bending length, with 2000 mm between columns.
Seven-Axis CNC Configuration
Y1, Y2, X, R, V, Z1 and Z2 axes for multi-axis control.
GHBM-940T CNC Controller
Paired with a 21.5-inch Techmation display screen.
Servo-Driven Hydraulic System
7.5 kW Techmation main servo motor, OLD hydraulic pump and DPT hydraulic system.
Closed-Loop Position Feedback
Uses an OPKON closed-loop position sensor.
Fast, Repeatable Backgauge
X-axis: 600 mm stroke, up to 350 mm/s. R-axis: 150 mm stroke, up to 150 mm/s. Repeatable positioning accuracy of ≤0.05 mm on both axes.
Quick-Release Tooling
GHBM double-side quick-release clamp.
Dust-Proof Compensation Worktable
Compensation worktable with dust protection.
Hydraulic Sealing and Fittings
SKF/NOK cylinder seal kit and EATON compression fittings.
Technical Specifications
| Specification | GH-1025NT |
|---|---|
| Series | NT Series |
| Max. Working Force | 100 Ton |
| Max. Bending Length | 2500 mm |
| Distance Between Columns | 2000 mm |
| Ram Stroke | 200 mm |
| Daylight Opening | 460 mm |
| Throat Depth | 320 mm |
| Number of NC Axes | 7-Axis |
| NC Axis Configuration | Y1, Y2, X, R, V, Z1, Z2 |
| Main Motor Servo Power | 7.5 kW |
| Ram Approaching Speed | 180 mm/s |
| Ram Working Speed | 12 mm/s |
| Ram Returning Speed | 160 mm/s |
| Backgauge X-Axis Stroke | 600 mm |
| Backgauge X-Axis Max. Running Speed | 350 mm/s |
| Backgauge X-Axis Repeatable Positioning Accuracy | ≤0.05 mm |
| Backgauge R-Axis Stroke | 150 mm |
| Backgauge R-Axis Max. Running Speed | 150 mm/s |
| Backgauge R-Axis Repeatable Positioning Accuracy | ≤0.05 mm |
| Machine Length | 3150 mm |
| Machine Width | 1750 mm |
| Machine Height | 2550 mm |
| Machine Weight | Approximately 6100 kg |
Configuration and Component Brands
| Component | Brand / Origin |
|---|---|
| Machine Frame | GHBM — China |
| Double-Side Quick-Release Clamp | GHBM — China |
| Multi-Axis Control Backgauge System | GHBM — China |
| Hydraulic Pump | OLD — China |
| Hydraulic Cylinder | GHBM — China |
| Dust-Proof Compensation Worktable | GHBM — China |
| GHBM-940T CNC Controller | GHBM — China |
| 21.5-Inch Display Screen | Techmation — Taiwan |
| Main Servo Motor | Techmation — Taiwan |
| X, R-Axis Servo Motor | Techmation — Taiwan |
| X, R-Axis Servo Driver | Techmation — Taiwan |
| Hydraulic System | DPT — China |
| Cylinder Seal Kit | SKF / NOK — America / Japan |
| Compression Fitting | EATON — USA |
| Foot Switch | Kacon — Korea |
| Closed-Loop Position Sensor | OPKON — Turkey |
| Inductive Proximity Switch | OMRON — Japan |
| Low-Voltage Control Components | Schneider — France |
Maintenance & care
General recommendations for servo-hydraulic CNC press brakes. Follow the manufacturer's manual for model-specific requirements.
- Daily cleaning: Remove metal debris and dust from the worktable, tooling, clamps and backgauge area.
- Hydraulic oil checks: Check oil level and condition regularly. Replace oil and filters at the manufacturer's recommended intervals.
- Leak and seal inspection: Inspect the cylinders, hoses and fittings for leaks, and replace worn seals promptly.
- Tooling inspection: Check punches, dies and quick-release clamps for wear, damage or incorrect seating.
- Lubrication: Lubricate backgauge guides, screws and other moving parts as specified by the manufacturer.
- Axis and backgauge checks: Watch for abnormal noise, vibration, positioning drift or unexpected movement.
- Electrical inspection: Check cables, connectors, switches and the control panel. Only qualified personnel should do electrical work.
- Safety checks: Before production, verify that the foot switch, emergency stops and safety devices work correctly.
- Periodic servicing: Schedule manufacturer-recommended inspections and keep a log of maintenance and faults.
